EXTERIOR TRIM
09-16–7
Mazda MX-5

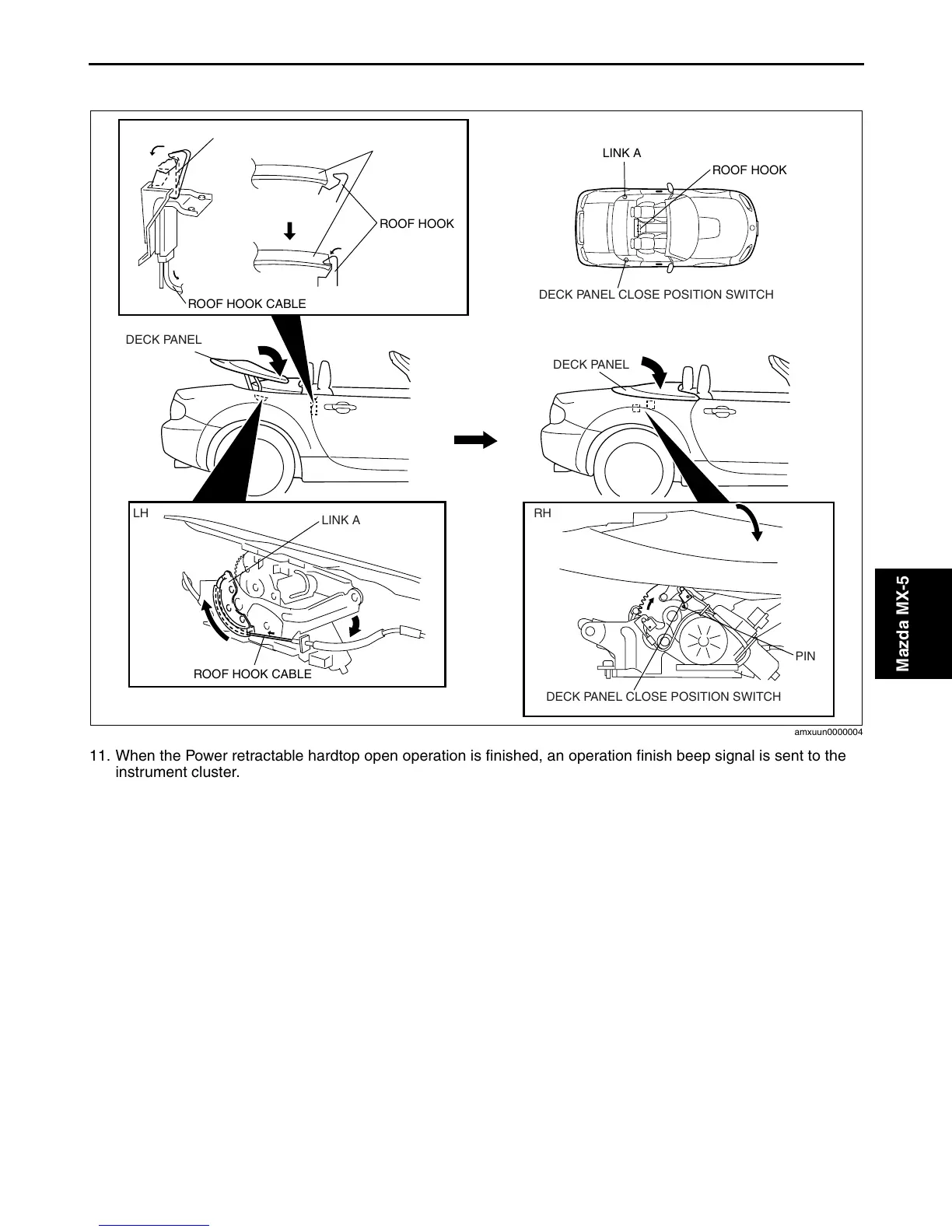

10. When the deck panel link pin contacts the deck panel close switch and the switch is turned off, the deck panel
is determined to be fully closed and the deck panel motor stops.
11. When the Power retractable hardtop open operation is finished, an operation finish beep signal is sent to the
instrument cluster.
ROOF HOOK
ROOF HOOK
ROOF HOOK CABLE
ROOF HOOK CABLE
FRONT ROOF PANEL
DECK PANEL
LINK A
DECK PANEL
PIN
DECK PANEL CLOSE POSITION SWITCH
LINK A
ROOF HOOK
DECK PANEL CLOSE POSITION SWITCH
LH RH
amxuun0000004
