OUTLINE [LF]
01-00–3
Mazda MX-5
2007 Mazda3, MAZDASPEED3, Mazda5, Mazda6, MAZDASPEED6, Mazda MX-5,
Mazda RX-8 Service Highlights (3422–1U–06G)

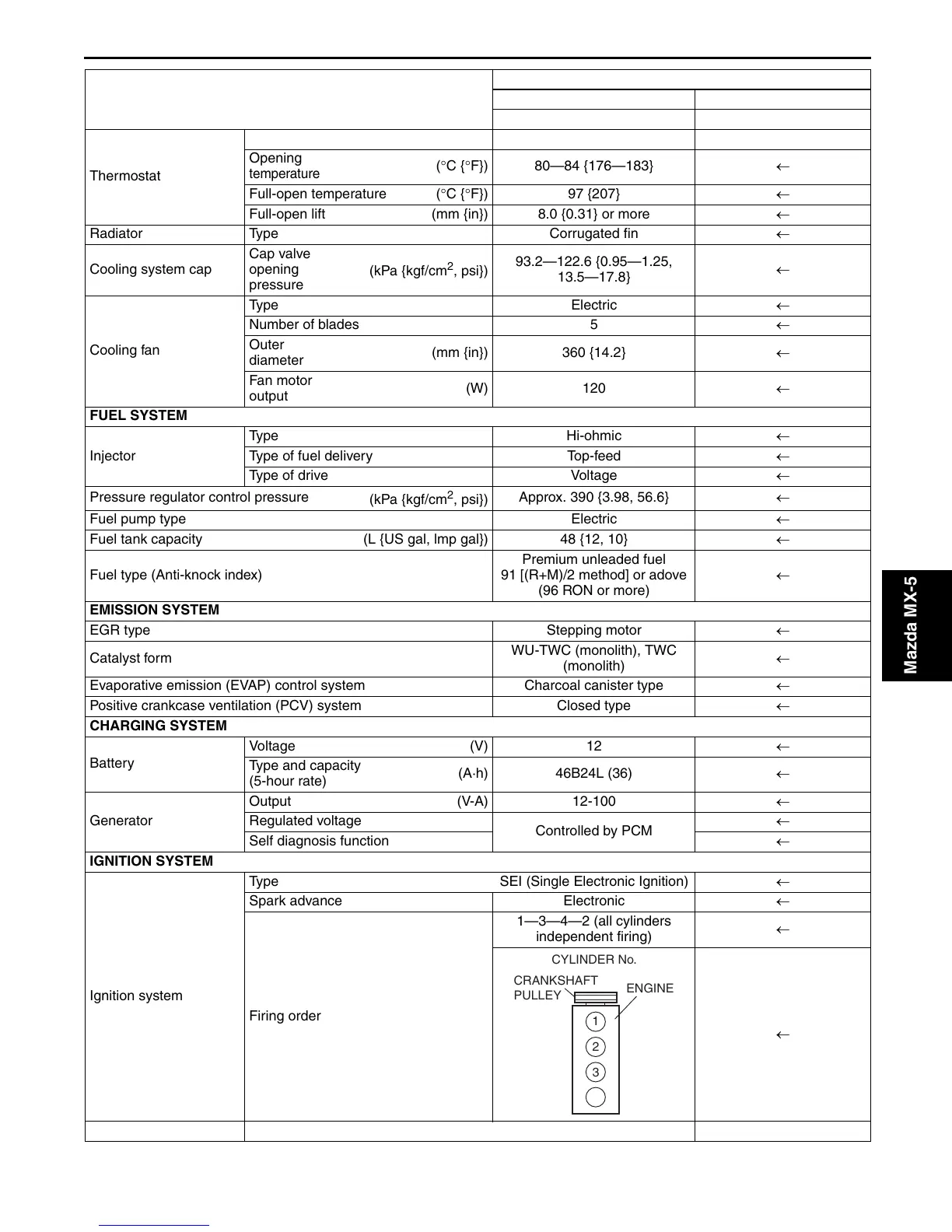

Thermostat
Type Wax, bottom-bypass ←
Opening
temperature
(°C {°F}) 80—84 {176—183} ←
Full-open temperature (°C {°F}) 97 {207} ←
Full-open lift (mm {in}) 8.0 {0.31} or more ←
Radiator Type Corrugated fin ←
Cooling system cap
Cap valve
opening
pressure
(kPa {kgf/cm
2
, psi})
93.2—122.6 {0.95—1.25,
13.5—17.8}
←
Cooling fan
Type Electric ←
Number of blades 5 ←
Outer
diameter
(mm {in}) 360 {14.2} ←
Fan motor
output
(W) 120 ←
FUEL SYSTEM
Injector
Type Hi-ohmic ←
Type of fuel delivery Top-feed ←
Type of drive Voltage ←
Pressure regulator control pressure
(kPa {kgf/cm
2
, psi})
Approx. 390 {3.98, 56.6} ←
Fuel pump type Electric ←
Fuel tank capacity (L {US gal, lmp gal}) 48 {12, 10} ←
Fuel type (Anti-knock index)
Premium unleaded fuel
91 [(R+M)/2 method] or adove
(96 RON or more)
←
EMISSION SYSTEM
EGR type Stepping motor ←
Catalyst form
WU-TWC (monolith), TWC
(monolith)
←
Evaporative emission (EVAP) control system Charcoal canister type ←
Positive crankcase ventilation (PCV) system Closed type ←
CHARGING SYSTEM
Battery
Voltage (V) 12 ←
Type and capacity
(5-hour rate)
(A·h) 46B24L (36) ←
Generator
Output (V-A) 12-100 ←
Regulated voltage
Controlled by PCM
←
Self diagnosis function ←
IGNITION SYSTEM
Ignition system
Type SEI (Single Electronic Ignition) ←
Spark advance Electronic ←
Firing order
1—3—4—2 (all cylinders
independent firing)
←
←
Spark plug Type L3G2 18 110, L3Y1 18 110 ←
Item
Specification
2007MY MX-5 2006MY MX-5
LF (2.0L) LF (2.0L)
1
2
3
4
ENGINE
CYLINDER No.
CRANKSHAFT
PULLEY
