EXTERIOR TRIM
09-16–20
*1 : No buzzer sound and power retractable hardtop indicator light illumination if the power retractable hardtop
operation is inhibited while it is not operating.
*2 : No buzzer sound except when the power retractable hardtop switch is turned on.

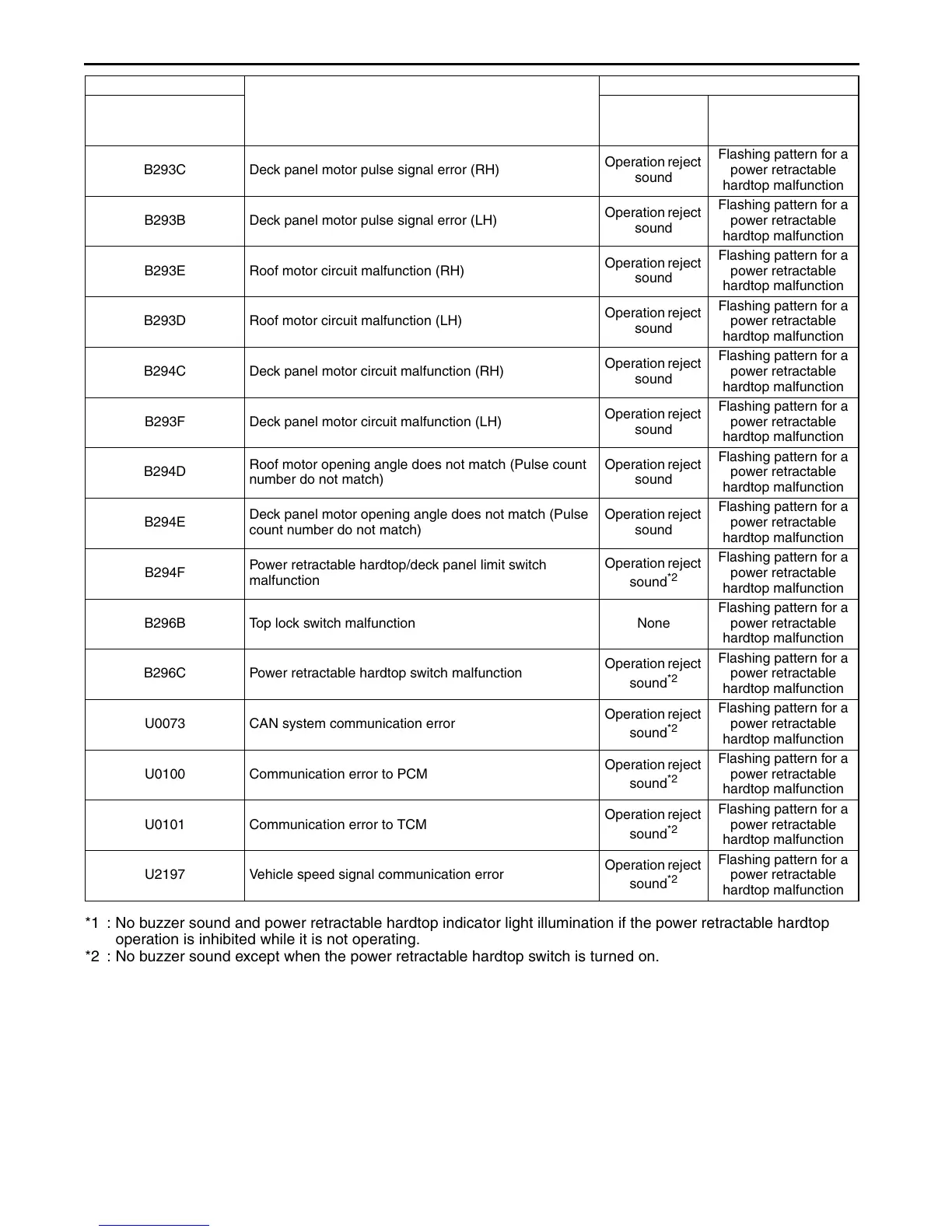

B293C Deck panel motor pulse signal error (RH)
Operation reject
sound
Flashing pattern for a
power retractable
hardtop malfunction
B293B Deck panel motor pulse signal error (LH)
Operation reject
sound
Flashing pattern for a
power retractable
hardtop malfunction
B293E Roof motor circuit malfunction (RH)
Operation reject
sound
Flashing pattern for a
power retractable
hardtop malfunction
B293D Roof motor circuit malfunction (LH)
Operation reject
sound
Flashing pattern for a
power retractable
hardtop malfunction
B294C Deck panel motor circuit malfunction (RH)
Operation reject
sound
Flashing pattern for a
power retractable
hardtop malfunction
B293F Deck panel motor circuit malfunction (LH)
Operation reject
sound
Flashing pattern for a
power retractable
hardtop malfunction
B294D
Roof motor opening angle does not match (Pulse count
number do not match)
Operation reject
sound
Flashing pattern for a
power retractable
hardtop malfunction
B294E
Deck panel motor opening angle does not match (Pulse
count number do not match)
Operation reject
sound
Flashing pattern for a
power retractable
hardtop malfunction
B294F
Power retractable hardtop/deck panel limit switch
malfunction
Operation reject
sound
*2
Flashing pattern for a
power retractable
hardtop malfunction
B296B Top lock switch malfunction None
Flashing pattern for a
power retractable
hardtop malfunction
B296C Power retractable hardtop switch malfunction
Operation reject
sound
*2
Flashing pattern for a
power retractable
hardtop malfunction
U0073 CAN system communication error
Operation reject
sound
*2
Flashing pattern for a
power retractable
hardtop malfunction
U0100 Communication error to PCM
Operation reject
sound
*2
Flashing pattern for a
power retractable
hardtop malfunction
U0101 Communication error to TCM
Operation reject
sound
*2
Flashing pattern for a
power retractable
hardtop malfunction
U2197 Vehicle speed signal communication error
Operation reject
sound
*2
Flashing pattern for a
power retractable
hardtop malfunction
DTC
Description
Malfunction indication
Mazda modular
diagnostic system (M-
MDS) display
Buzzer sound
Power retractable
hardtop indicator
light flashing
