Page: 4 of 35
☆Mini flathead screwdriver
☆
Side cutter
☆
Tape-wrapped flathead screwdriver
☆
Ratchet
☆
10mm socket
☆
Mini Scissors
☆Trim clip remover/tack puller ☆Nylon trim remover
☆Small metal scale ruler
☆Electrical tape
☆90 degree needle nose pliers
☆Small utility knife
REQUIRED TOOLS
OTHER PREPARATIONS
☆Soft clean cloth
☆Protective mat
☆Protective masking
tape
☆Protective
gloves
☆IPA (Isopropyl alcohol)

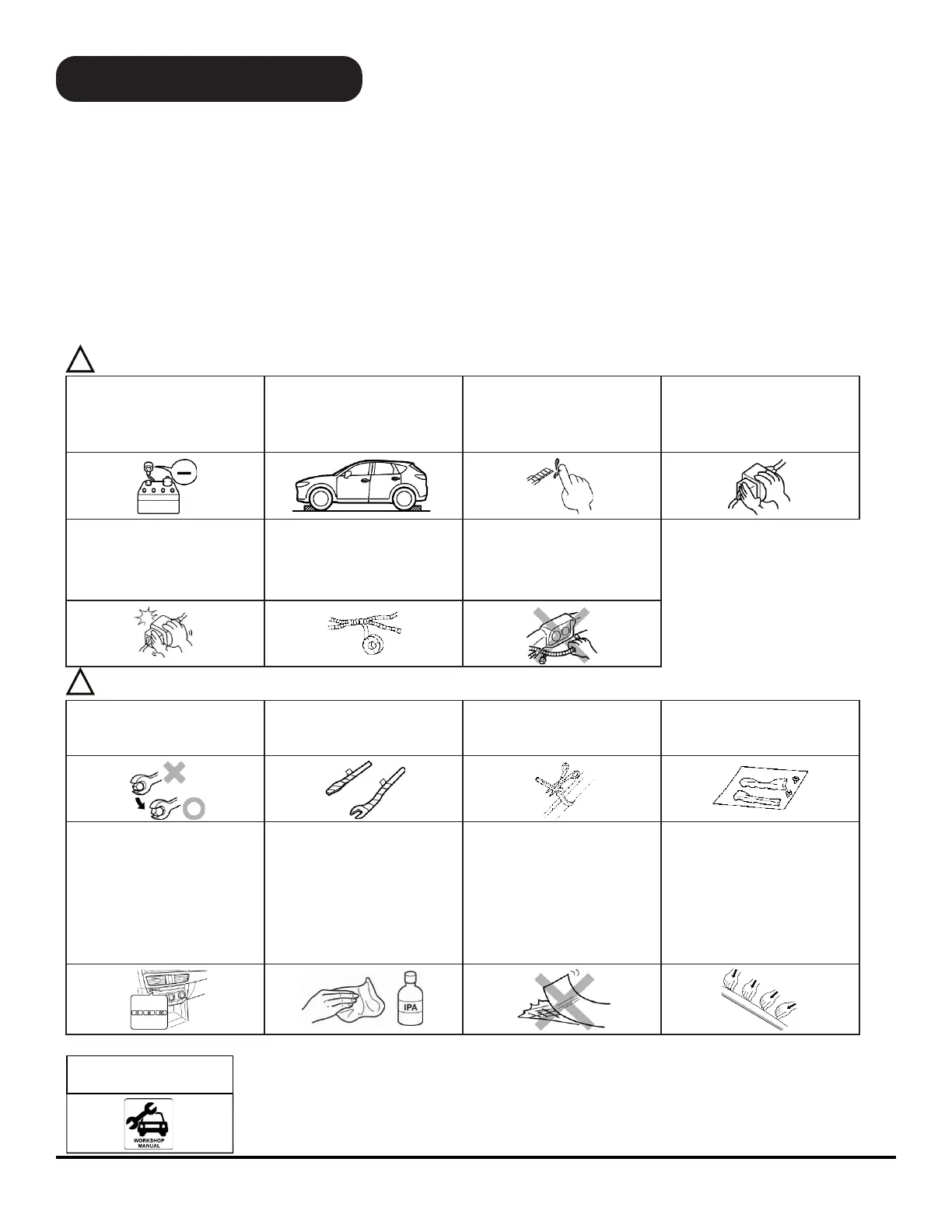

WARNING
When the negative battery is
connected during operation,
may cause electric shock
or other personal injuries.
Disconnect the negative cable
before
installation.
Before performing any work,
park the vehicle on level
ground, apply the parking
brake securely, and then block
the wheels.
Be careful when handling
drills and other sharp objects.
If not handled properly, it
could result in serious injury.
When connecting/dis-
connecting connectors,
grasp
the connectors, not the
wires.
Otherwise a short,
and an
accident from poor
contact or
fire may occur.
Make sure the connector is
securely pressed in until a click
sound is heard.
Otherwise, a fire or other
accident may occur due to an
open circuit or poor contact.
Secure the harness with the
band (part included) so it
doesn’t dangle. If not, it may
cause a short, accident, or
fire.
Do not pull the harness with
excessive force. Doing so can
cause a breakage or a short-
related accident, as well as an
electrical short or fire.
!
CAUTION
Using improper tools may
cause damage and/or broken
parts. Use the correct tool for
the job.
Wrap protective tape around
screwdrivers and fastener
remover tools to prevent
scratching the vehicle.
Excessive length of tie wrap may
interfere with other parts and
cause damage.
Put the removed parts and
the parts in the kit on the
protective sheet to prevent
scratches.
When the negative battery
cable is removed, the
initial value or
memory for
the power windows,
clock,
i-stop, steering angle
sensor reference point will
be cleared. Perform re-
initialization.
If there is dust, dirt or grease
on the adhesion surface,
the adhesive strength of the
double- sided adhesive tape
will splotch and adhesive
power of the tape will be
reduced. Wash and degrease
the surface of the adhesion
area before applying the
double-sided adhesive tape.
Be sure to wash interior
and exterior parts using IPA
(isopropyl alcohol).
If tape or a mount base is re-
adhered, the adhesive strength
will be weakened.
Before adhering, accurately
determine the adhesion
position.
To assure sucient adhesiveness
of the double-sided adhesive
tape, press the adhesive
surface of the tape to the
adhesion surface evenly. In
particular, press suciently at
the ends of the double-sided
adhesive tape where the
adhesion surface is curved.
·
To perform the installation work safely and maintain functionality and quality, thoroughly read these instructions before
performing the procedures and always heed the warnings and precautions.
·
In the work procedures, there are descriptions which are only indicated in the figure. Make sure to follow these procedures
as well.
ADVICE
Refer to the Workshop Manual
for removal and installation of
vehicle parts.
3. BEFORE INSTALLATION
!
To Next Page
