MZR 2.0

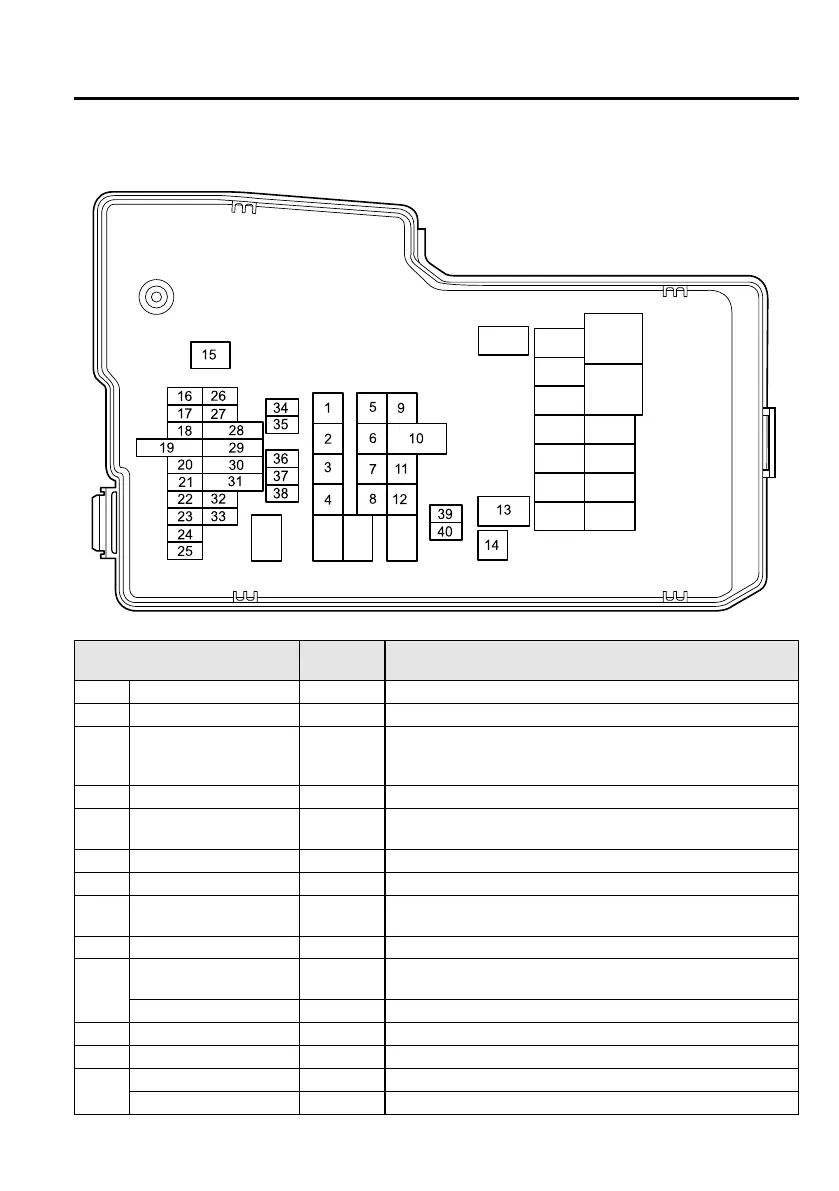

DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 IG KEY1 50 A For protection of various circuits
2 AD FAN 30 A Cooling fan
3
GLOW2
HEATER2
FAN1
30 A Heater
4 EGI MAIN 40 A Engine control system
5
INJ
FAN2
30 A ―
6 ABS P 40 A ABS
7 P.SLIDE L 20 A Power slide door (LH)
í
8
TCM
EVVT
20 A Transaxle control system
í
9 HEATER1 40 A Heater
10
GLOW1
HEATER3
30 A Heater
DCDC2 40 A ―
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A For protection of various circuits
13
FAN1 30 A Cooling fan
AT PUMP 20 A ―
Maintenance and Care
Owner Maintenance
8-47
í
Some models.
