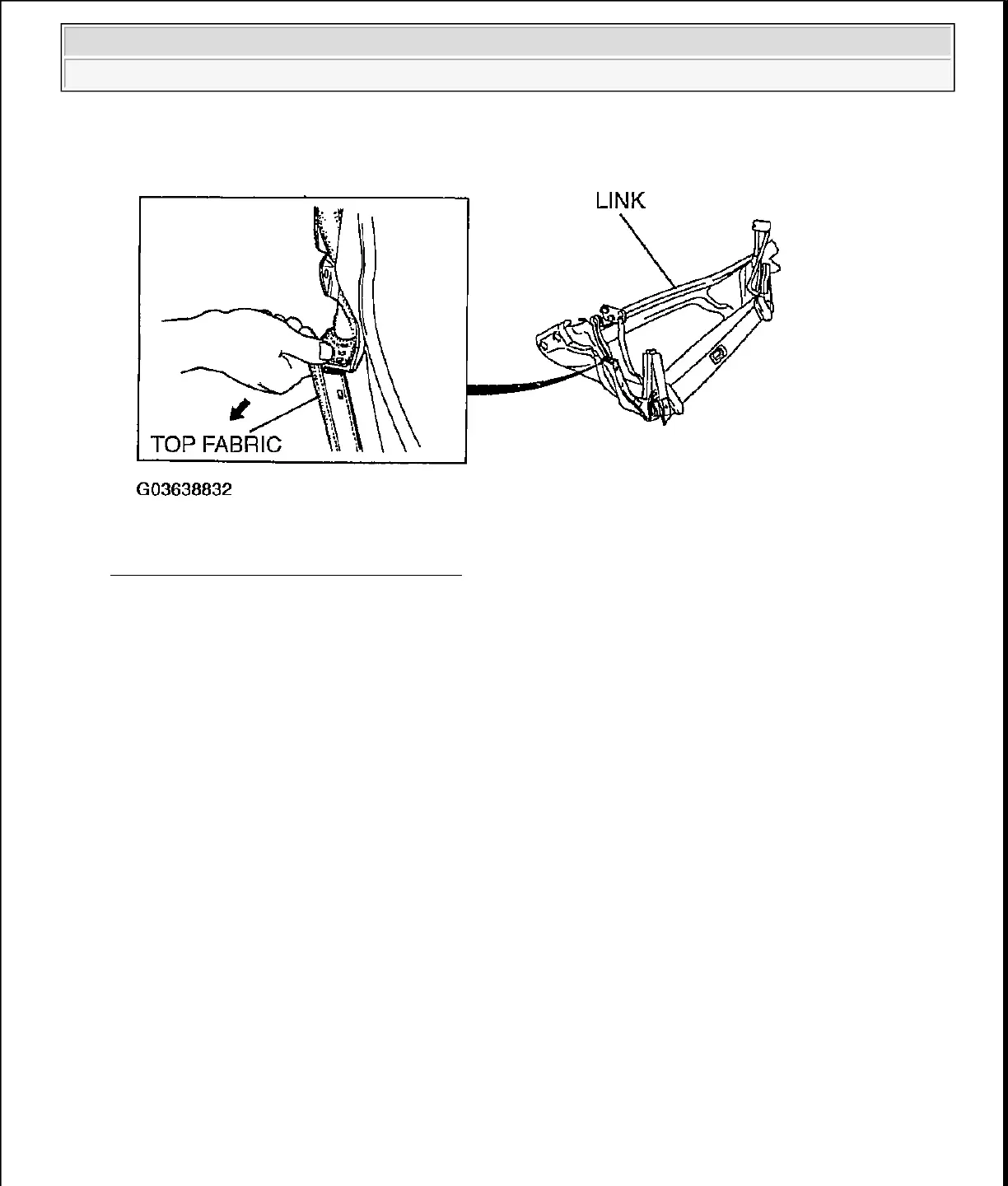

Fig. 29: Removing Top Fabric From Link
Courtesy of MAZDA MOTORS CORP.
CABLE DISASSEMBLY NOTE
1. Peel back the top fabric from the front header.
2. Remove the screws and disconnect the cables from the rear of the link.
3. Unfold the convertible top and set it upri
ht.
2005 Mazda MX-5 Miata
2005 ACCESSORIES & EQUIPMENT Exterior Trim - MX-5 Miata
