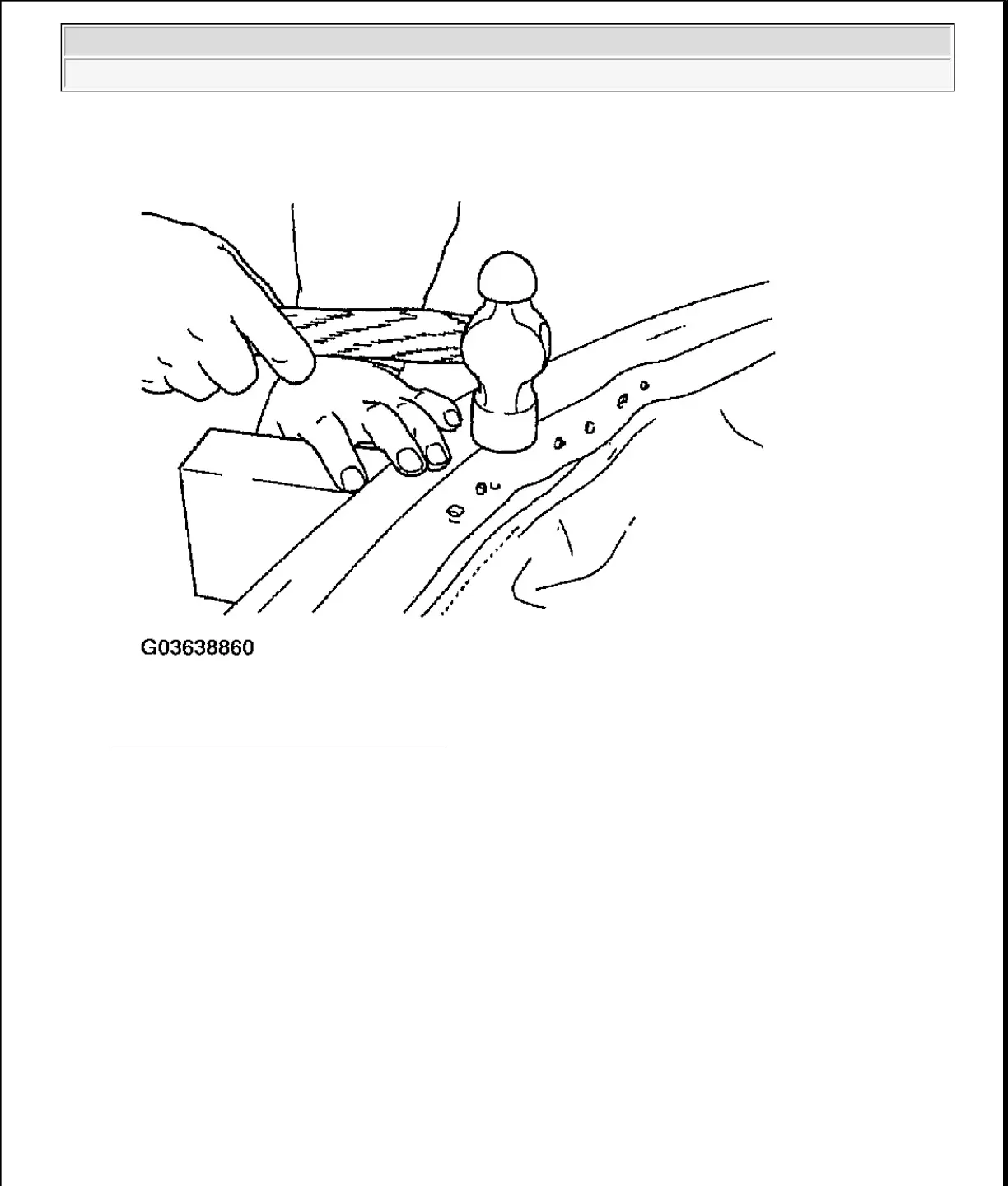

Fig. 57: Flattening Stem Using Hammer
Courtesy of MAZDA MOTORS CORP.
TOP FABRIC INSTALLATION NOTE
1. Place the top fabric onto the link.
2. Install the top fabric from the rear bow to the front bow.
3. Roll the top fabric over the bow retainer.
4. Hang the end of the top fabric on the bow retainer.
5. Clamp the top fabric to the bow usin
g
water pump pliers which have been wrapped in tape.
2005 Mazda MX-5 Miata
2005 ACCESSORIES & EQUIPMENT Exterior Trim - MX-5 Miata
