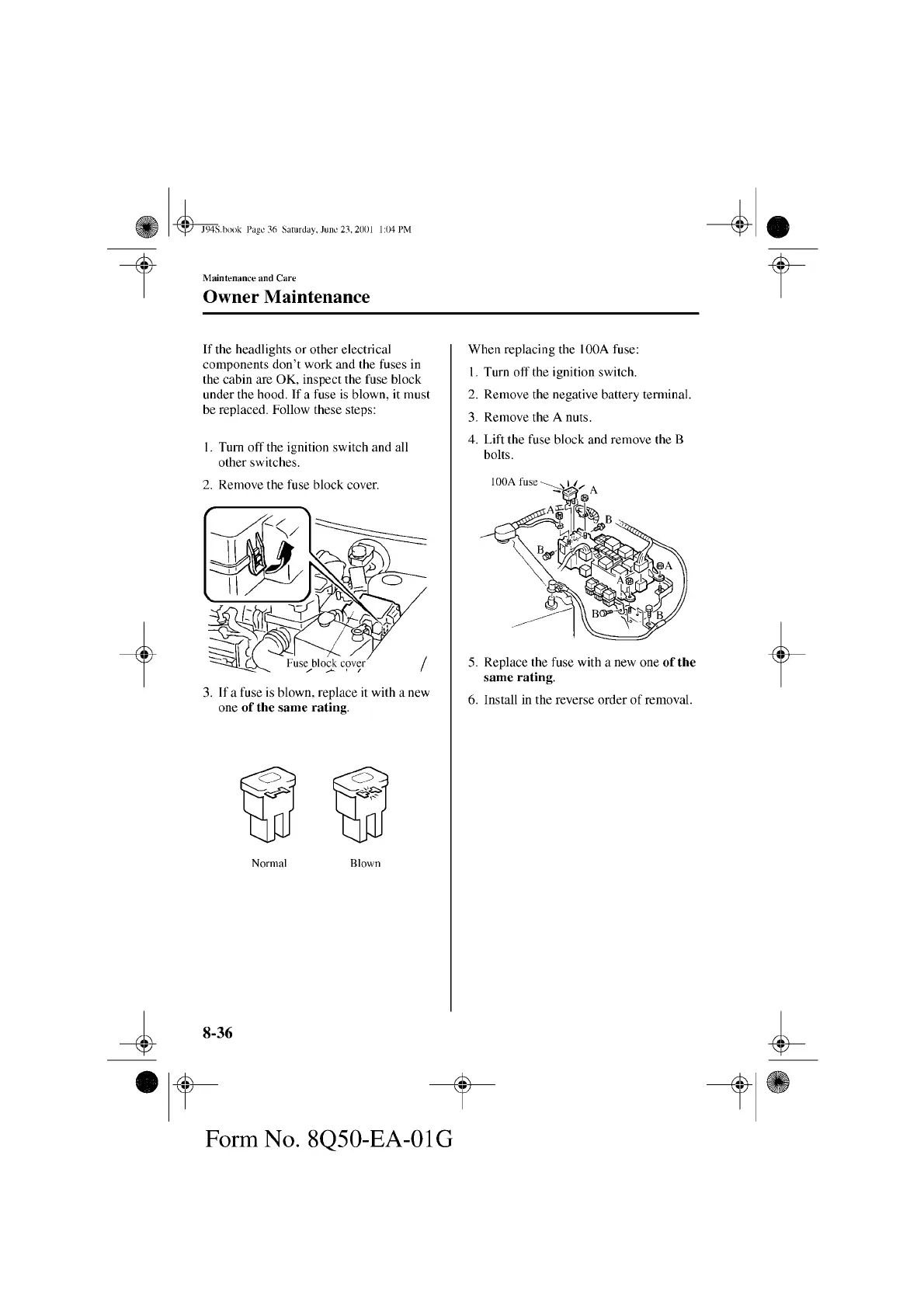

Maintenance and Care
Owner Maintenance
If the headlights or other electrical
components don’t work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
one of the same rating.
When replacing the 100A fuse:
1. Turn off the ignition switch.
2. Remove the negative battery terminal.
3. Remove the A nuts.
4. Lift the fuse block and remove the B
bolts.
5. Replace the fuse with a new one of the
same rating.
6. Install in the reverse order of removal.
Normal Blown
8-36
