Maintenance and Care
Owner Maintenance

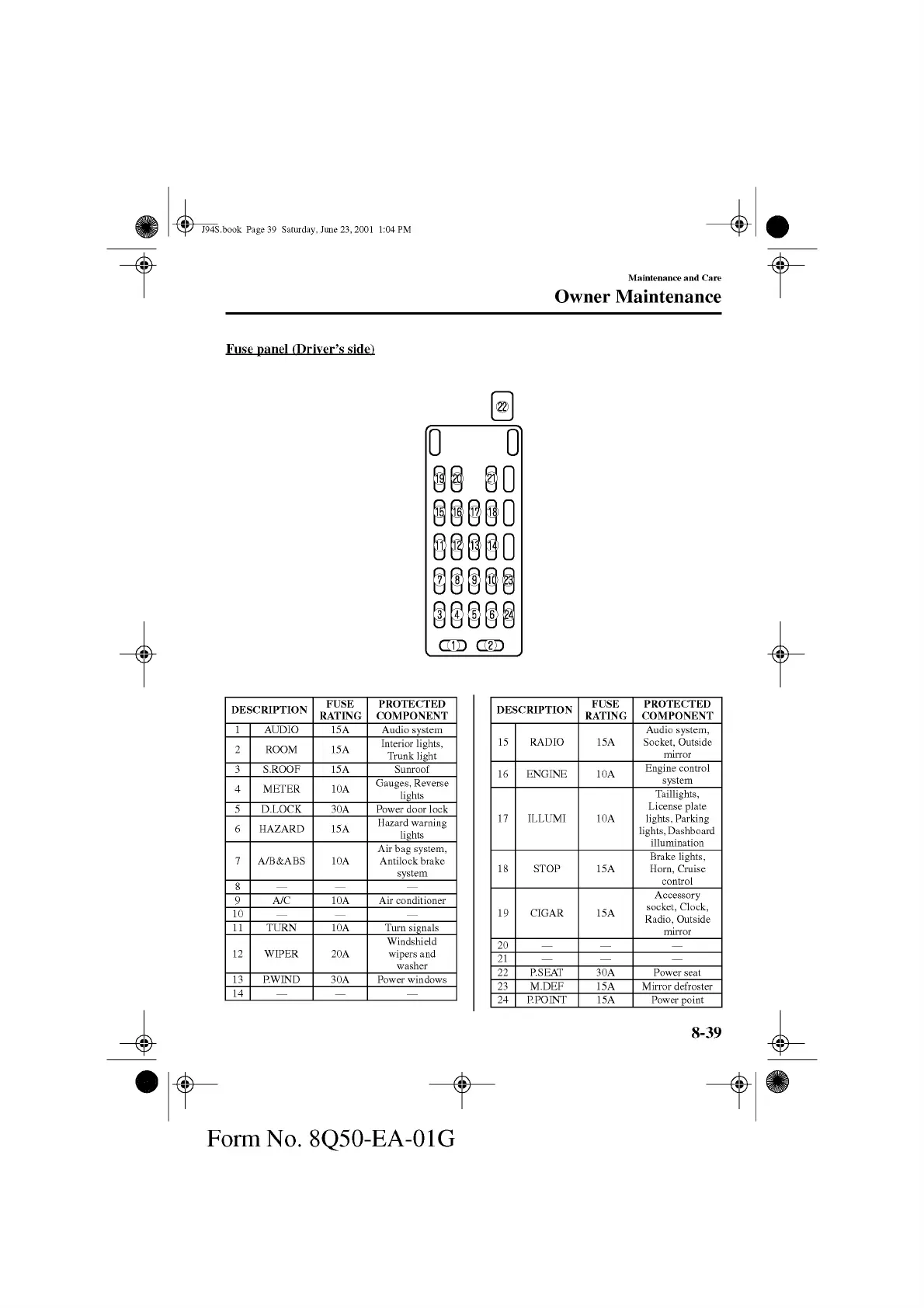

Fuse panel (D river’s side)
D ESCR IPT IO N
FUSE
RATING
PROTECTED
CO M PO NEN T
1 AUDIO 15A Audio system
2 ROOM 15A
Interior lights,
Trunk light
3 S.ROOF 15A Sunroof
4 M ETER 10A
Gauges, Reverse
lights
5 D.LOCK 30A Power door lock
6 HAZARD 15A
Hazard warning
lights
7 A/B&ABS 10A
Air bag system,
Antilock brake
system
8 — — —
9
A/C 10A Air conditioner
10 — — —
11 TURN 10A Turn signals
12 WIPER 20A
Windshield
wipers and
washer
13 PW IND 30A Power windows
14
— — —
D E SC RIPTIO N
FUSE
RATING
PROTECTED
CO M PO NEN T
15 RADIO 15A
Audio system,
Socket, Outside
mirror
16 ENGINE 10A
Engine control
system
17 ILLUMI 10A
Taillights,
License plate
lights, Parking
lights, Dashboard
illumination
18 STOP 15A
Brake lights,
Horn, Cruise
control
19
CIGAR 15A
Accessory
socket, Clock,
Radio, Outside
mirror
20
— — —
21 — — —
22 P.SEAT 30A Power seat
23 M.DEF 15A M irror defroster
24 P.POINT 15A Power point
