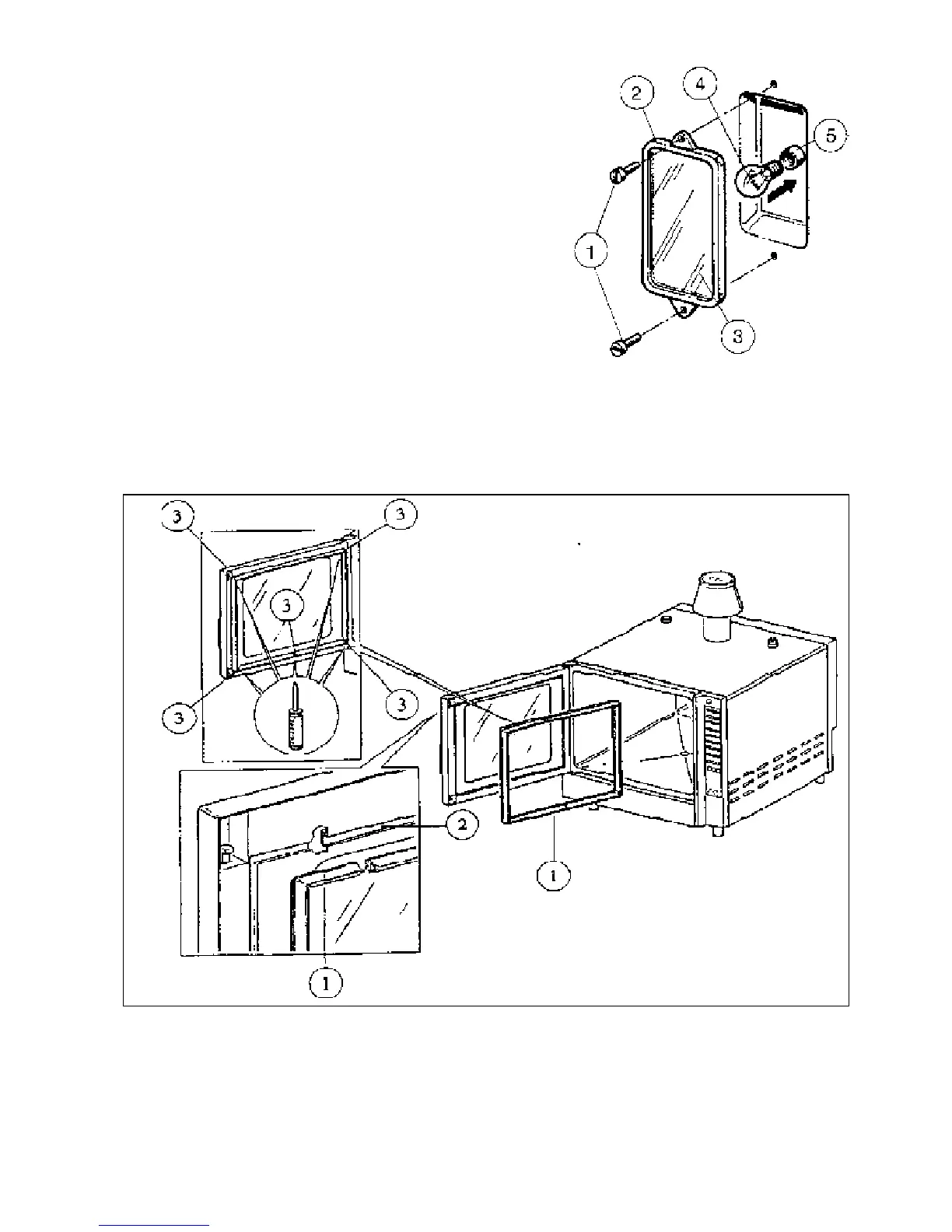

F) Oven lamp Tab.3
- Remove both screws (1).
- Remove the frame (2) with glass (3).
N.B. Check that the silicone rubber gasket is not
damaged.
- Replace the oven lamp (4).
- Fit it all back together in reverse order to the above.
G) Oven door gasket Tab. 8
- Take the gasket out of its seat.
- Clean the seat of the gasket of all
trace of dirt.
- Place the new gasket in its seat (2),
seal the 4 corners with a silicone-based
mastic.
H) Cleaning solenoid valve filters
- Remove the rear panel.
- Remove the water supply pipe.
- Take out the filter and wash it thoroughly.
- Fit it all back together.
TAB. 8
TAB. 9
