MBM FGMD67 - Direct Combined Gas Oven FGMD207;FGMD207 SC with Stand SF2

- 9 -

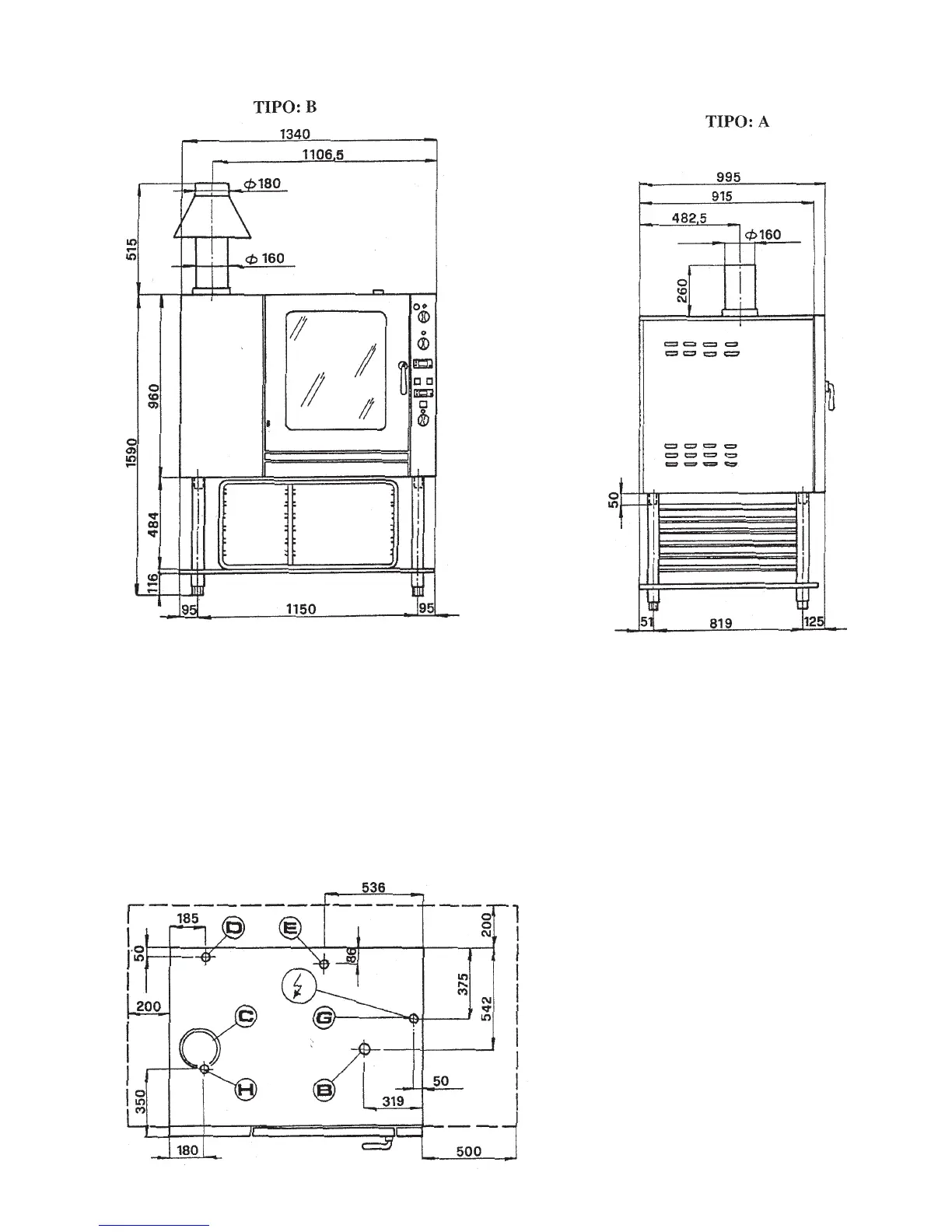

3.4 DIRECT ”COMBINED” GAS OVEN FGMD207/FGMD207SC WITH STAND SF2
E) Water outlet Ø 40 mm
G) Power supply cable input
B) Adjustable top condensate outlet Ø 50 mm
C) Chamber flue Ø 160 mm
D) Humidifier water and steam
reduction inlet G 3/4”
H) Gas connection G 3/4”
