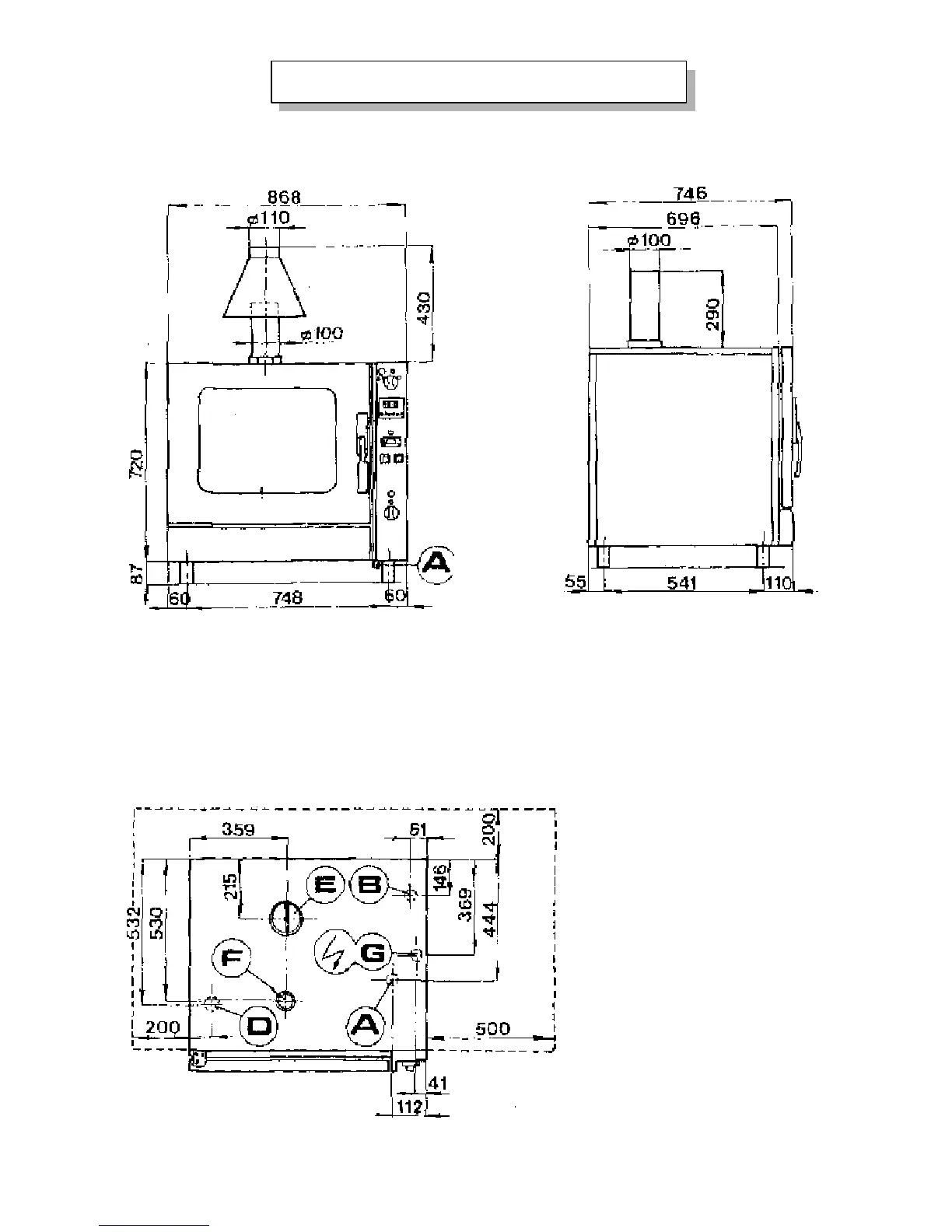

3. INSTALLATION DIAGRAMS
3.1 DIRECT ”COMBINED” GAS OVEN FGMD67/FGMD67SC
B) Softened water inlet G 3/4”
D) Water outlet Ø 40 mm
F) Vent pipe Ø 50 mm
G) Power supply cable input
A) Gas connection G 3/4”
E) Chamber flue Ø 100 mm
