2.4.2 Hardware Interface Back Panel
The hardware interfaces located at the back panel on both model lines are the following (Figure 4, Figure
5) : 1 USB connector, 2 Ethernet ports, two asynchronous ports over DB-9 female connectors, two
synchronous ports over a DB-15 and a DB-25 female connectors, 64 input ports and 64 output ports
distributed in the C1S and C11S connectors (this feature is included depending of the model).

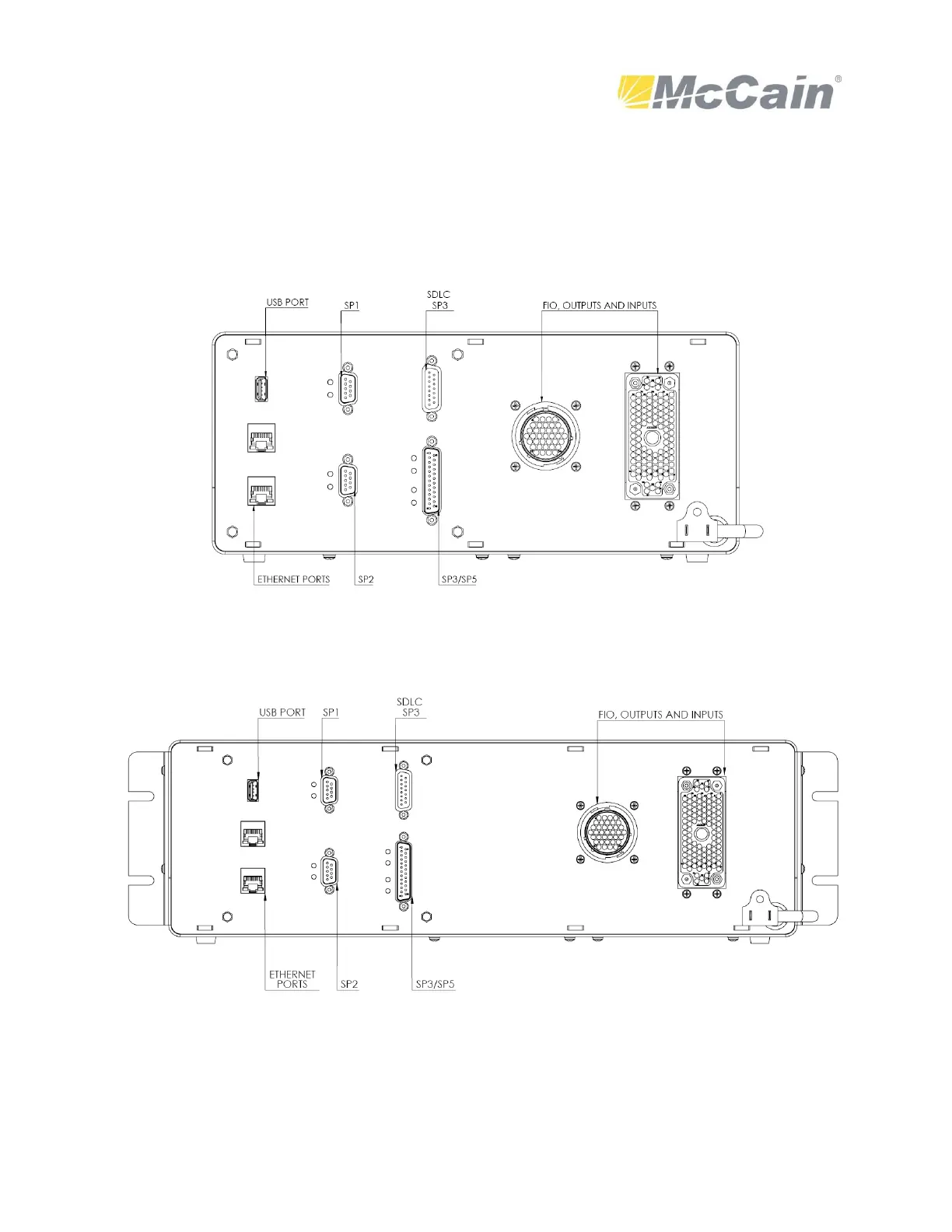

Figure 4: Hardware Interfaces on Back Panel of FleX Shelf Mount Controller.
Figure 5: Hardware Interfaces on Back Panel of FleX Rack Mount Controller.
