McCain FleX M73101S - Page 36

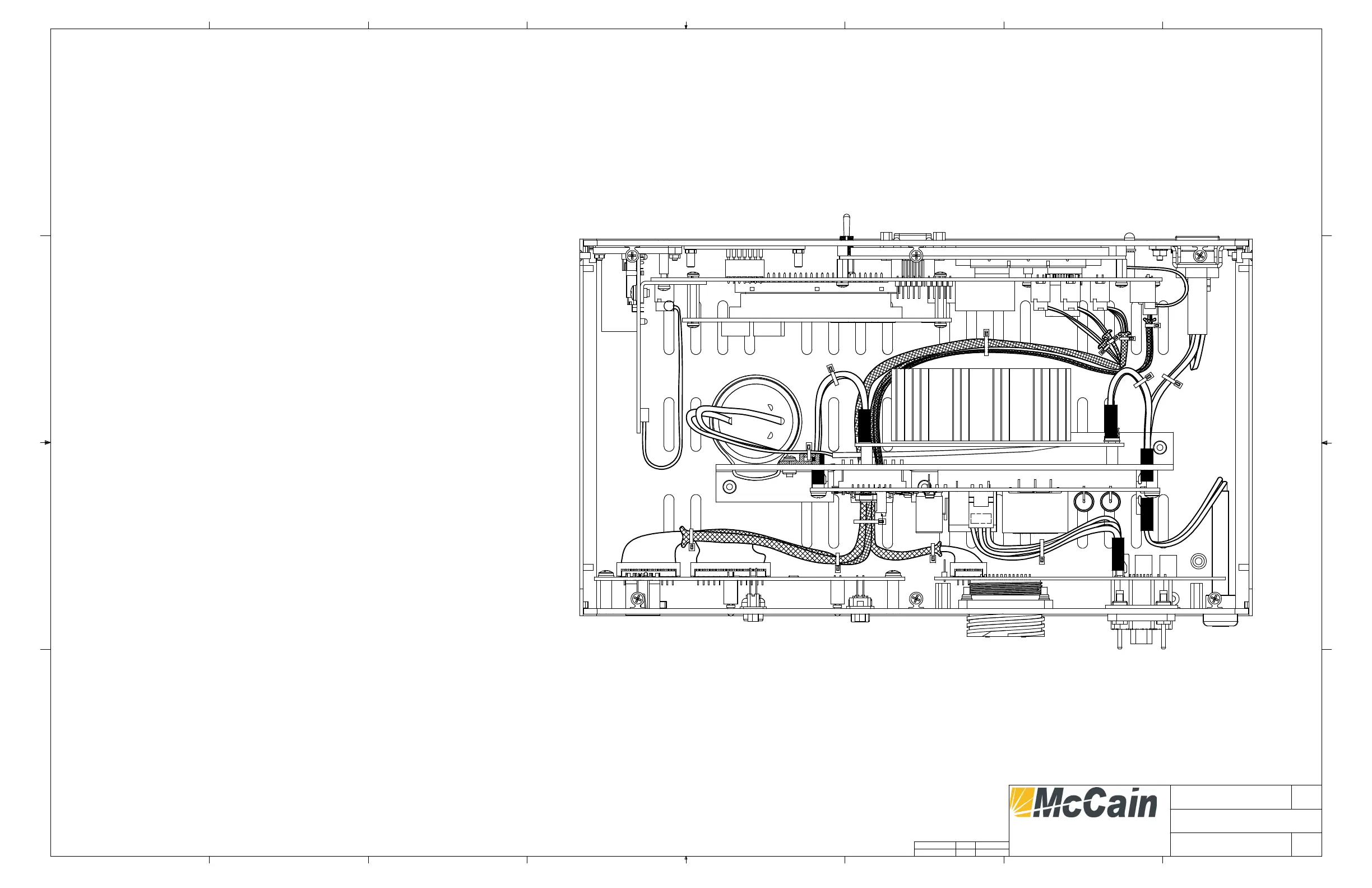

Controller Wiring
NOTES.
CONNECT HARNESS AS FOLLOW : 1.
- HOSTBOARD TO "P3" OF M58570A ( HOST BOARD ).
- CTRL SGNLS TO "DC FOR HOST" OF M58574A ( CONTROL SIGNALS BOARD ).
- FIO TO "P1" ON M58573A ( FIELD I/O BOARD ).
- C.S. TO "DC FOR FIO" OF M58574A ( CONTROL SIGNALS BOARD ).
- CN1 TO "CN1" OF M45891 ( POWER SUPPLY ASSEMBLY 5V,12V,24V ).
- AC OUT TO "AC OUTPUT" OF M58574A ( CONTROL SIGNALS BOARD ).
- CN2 TO "CN2" OF M45891 ( POWER SUPPLY ASSEMBLY 5V,12V,24V ).
- DC IN TO "DC INPUT" OF M58574A ( CONTROL SIGNALS BOARD ).
- F/S TO "SWITCH/FUSE" OF M58574A ( CONTROL SIGNAL BOARD ).
- AC IN TO "AC INPUT" OF M58574A ( CONTROL SIGNAL BOARD ).
D
C
B
A
A
B
C
D
1
23
4
5
678
8
7
6 5
4
3
2
1
TITLE:
SIZE
B
REV
A
FLEX SHELF MOUNT
CONTROLLER, CALTRANS
SHEET 2 OF 2
CHECKED
DETAILED
PART NUMBER:
2365 OAK RIDGE WAY
VISTA, CA 92081
J.G. 02/01/2017
M73101SA
SolidWorks file: M73101SA FLEX SHELF MOUNT CONTROLLER, CALTRANS.SLDDRW
M73101SA
G.V. 02/01/2017
®
C . S .
