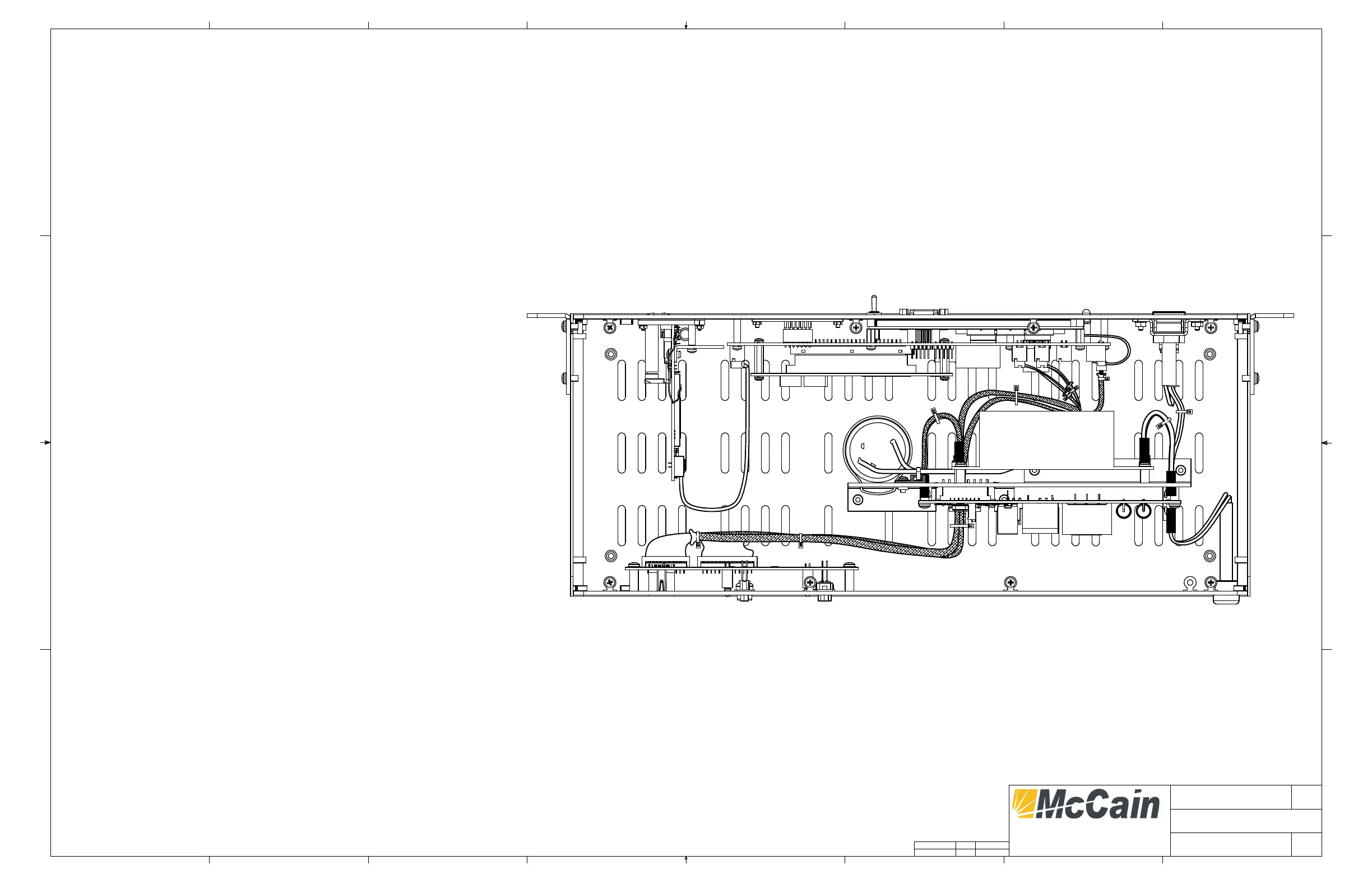

Controller Wiring
NOTES.
CONNECT HARNESS AS FOLLOW:1.
- HOSTBOARD TO "P3" OF M58570A ( HOST BOARD ).
- CTRL SGNLS TO "DC FOR HOST" OF M58574A ( CONTROL SIGNALS BOARD ).
- CN1 TO "CN1" OF M45891 ( POWER SUPPLY ASSEMBLY 5V,12V,24V ).
- AC OUT TO "AC OUTPUT" OF M58574A ( CONTROL SIGNALS BOARD ).
- CN2 TO "CN2" OF M45891 ( POWER SUPPLY ASSEMBLY 5V,12V,24V ).
- DC IN TO "DC INPUT" OF M58574A ( CONTROL SIGNALS BOARD ).
- F/S TO "SWITCH/FUSE" OF M58574A ( CONTROL SIGNAL BOARD ).
- AC IN TO "AC INPUT" OF M58574A ( CONTROL SIGNAL BOARD ).
D
C
B
A
A
B
C
D
1
23
4
5
678
8
7
6 5
4
3
2
1
THIS DOCUMENT CONTAINS INFORMATION PROPRIETARY
WITH McCAIN INC. AND MAY NOT BE REPRODUCED OR
DISCLOSED TO OTHERS WITHOUT THE WRITTEN CONSENT
OF McCAIN INC.
PROPRIETARY AND CONFIDENTIAL
TITLE:
SIZE
B
REV
A
FLEX RACK MOUNT
CONTROLLER, WIFI
SHEET 2 OF 2
CHECKED
DETAILED
PART NUMBER:
2365 OAK RIDGE WAY
VISTA, CA 92081
J.G. 01/30/2017
M73101RW
SolidWorks file: M73101RW FLEX RACK MOUNT CONTROLLER, WIFI.SLDDRW
M73101RW
G.V. 01/30/2017
®
