McCain FleX M73101S - Page 74

1
2
4
5
6
7
8
9
7
8
18
17
16
15
14
13
12
11
17
16
19
16
17
20
21
22
23
26
25
24
3

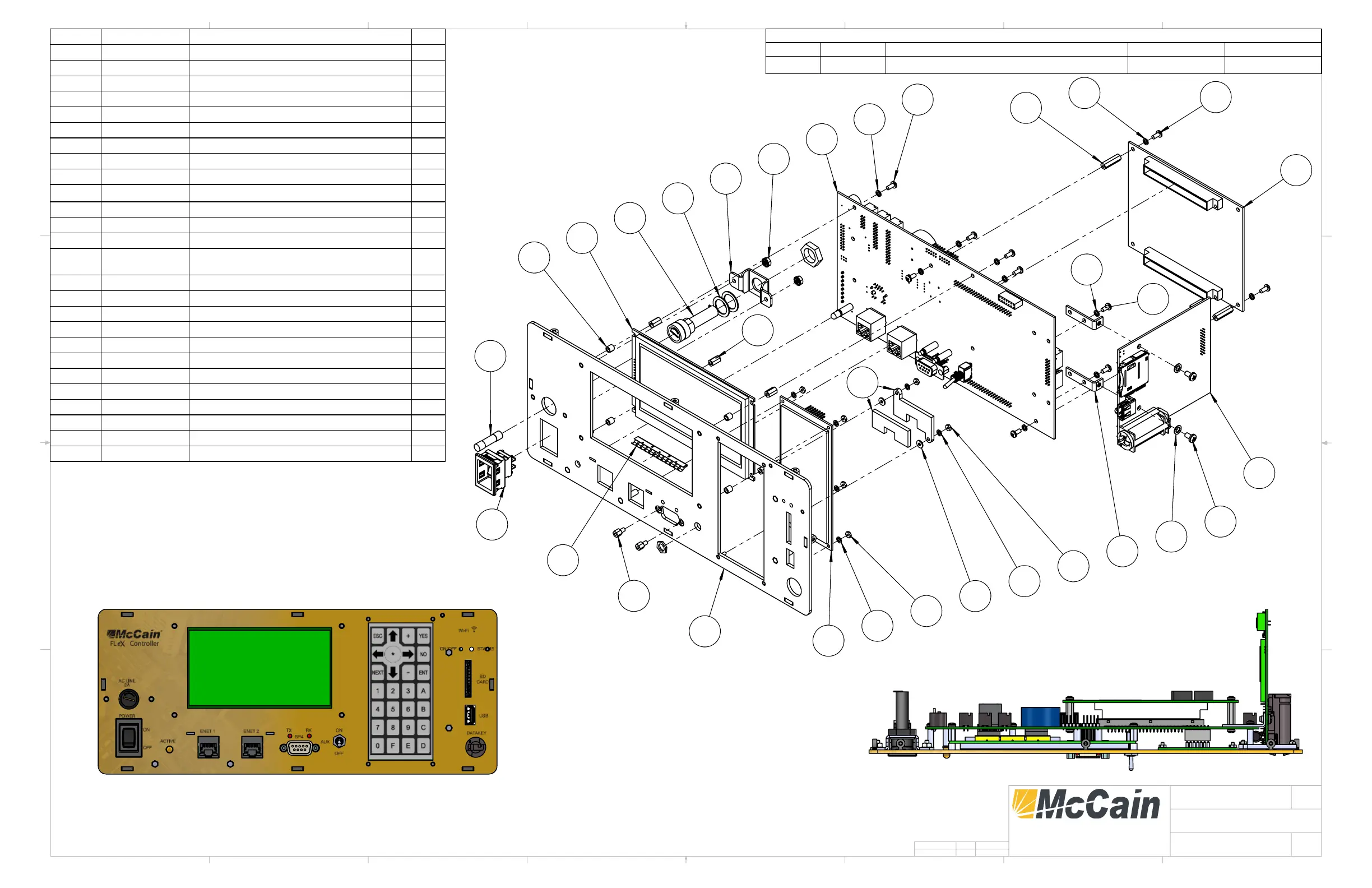

Exploded View
Top View
10
Front View
REVISIONS
REV. ECN DESCRIPTION DATE DWN
A EC-160048 INITIAL RELEASE JANUARY 31, 2017 J.G.
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 M14838 FUSE,2A,250V,SLO BLO BUSSMAN 1
2 M59352 SWITCH, ROCKER, SPST, 4A 125VAC 1
3 M46871 CLIP ON MOUNTING 1
4 M11671 JACKSCREW, 4-40 X 1/4 M/F 2
5 M59148 FRONT PANEL, FLEX CONTROLLER 1
6 M66261 KEYPAD,7ROWX4COL,W/14POS 1
7 M11745 WASHER,#2,INT. TOOTH,SS 6
8 M41113 NUT 2-56 HEX, SS 6
9 M11750 WASHER, #2, FLAT, NYLON 2
10 M58995 WIFI, ANTENNA SUPPORT, FLEX 1PR
11 M59351 BRACKET, L, PCB MOUNT, 6-32 STEEL 2
12 M11706 WASHER, #6, INT. TOOTH, SS 2
13 M11622 SCREW, 6-32 X 1/4, PH PN SS 2
14 M73097A
ASSY, PCB, SD CARD, USB AND DK, FLEX
CONTROLLER, TH
1
15 M52284A ASSY, PCB, 2070-1C, ENGINE 1
16 M11625 SCREW, 4-40 X 1/4, PH PN SS 10
17 M11717 WASHER #4 SPLIT SLOCK 10
18 M66392 STANDOFF,4-40 X3/16, 11/16, HEX, F/F, AL 2
19 M58570A ASSY, PCB, HOSTBOARD, FLEX, TH 1
20 M11783 KEPNUT, 4-40 SS 2
21 M57131 BRACKET, FUSE HOLDER, SUPPORT 1
22 M61389 WASHER, NYLON, 1/2" X 11/16" X .031thk 2
23 M57118 FUSE HOLDER,PANEL MT,1/4 1
24 M59321 ASSY, LCD/HARN, FLEX CONTROLLER 1
25 M54808 SPACER,#4,3/16L,NYLON 4
26 M56523 STANDOFF, 4-40 X 11/32", 1/4" Hex, F/F 4
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
TITLE:
SIZE
B
REV
A
MODULE, FRONT PANEL,
FLEX CONTROLLER
SHEET 1 OF 1
CHECKED
DETAILED
PART NUMBER:
2365 OAK RIDGE WAY
VISTA, CA 92081
J.G. 01/31/2017
M73122
SolidWorks file: M73122 MODULE, FRONT PANEL, FLEX CONTROLLER.SLDDRW
M73122
G.V. 01/31/2017
®
