McCain FleX M73101S - Page 78

1
2
4
3
5

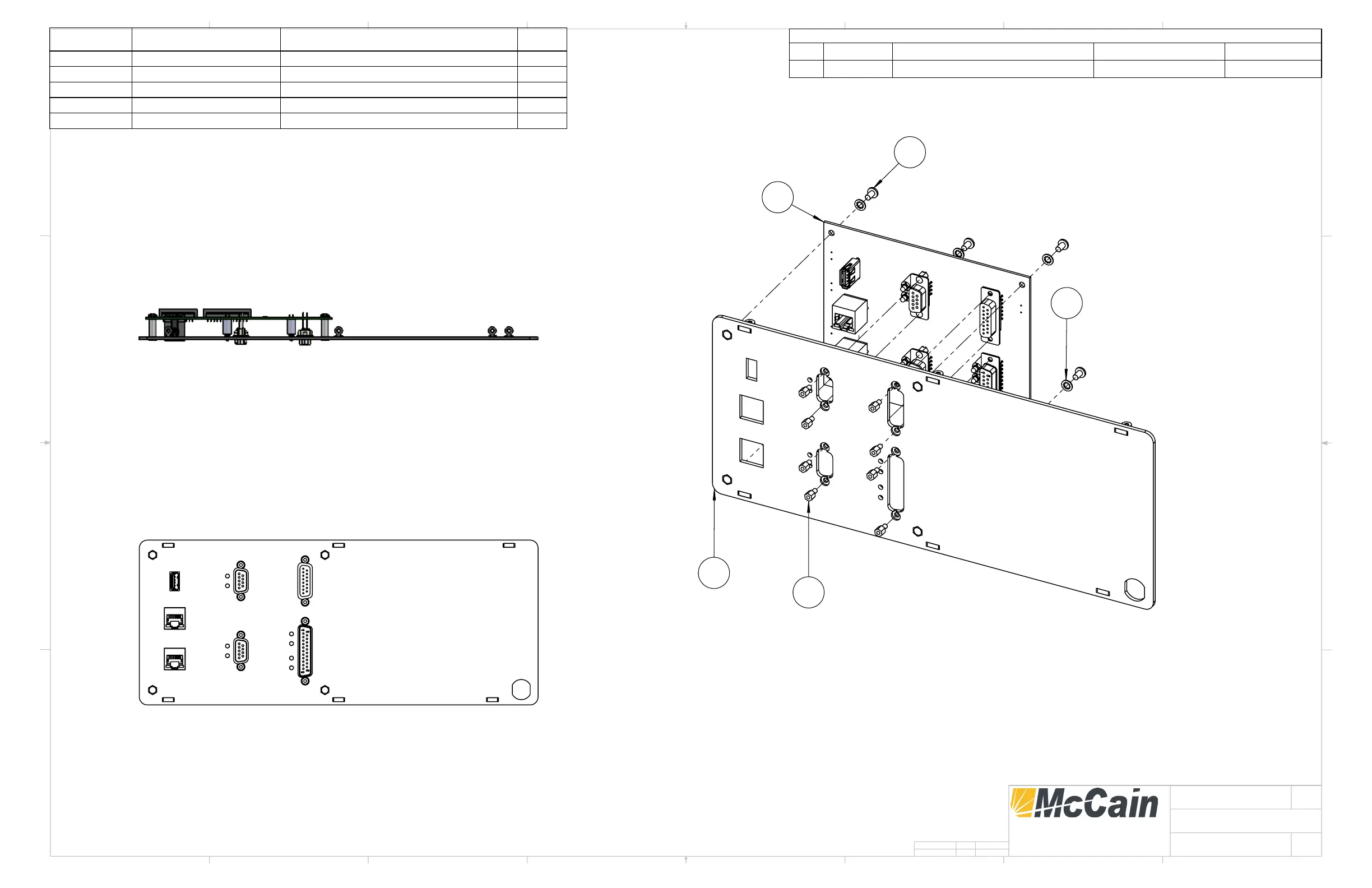

Exploded View
Top View
Front View
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 M59840 BACK PANEL, FLEX CONTROLLER W/OUT FIO 1
2 M11671 JACKSCREW, 4-40 X 1/4 M/F 8
3 M11706 WASHER, #6, INT. TOOTH, SS 4
4 M11622 SCREW, 6-32 X 1/4, PH PN SS 4
5 M58571A ASSY, PCB, SERIAL INTERFACE, FLEX, TH 1
REVISIONS
REV. ECN DESCRIPTION DATE DWN
A EC-160025 INITIAL RELEASE JANUARY 31, 2017 J.G.
D
C
B
A
A
B
C
D
1
2
3
5
6
7
8
8
7
6
5
4
3
2
1
TITLE:
SIZE
B
REV
A
MODULE, BACK PANEL, FLEX
CONTROLLER
SHEET 1 OF 1
CHECKED
DETAILED
PART NUMBER:
2365 OAK RIDGE WAY
VISTA, CA 92081
J.G. 01/31/2017
M59890
SolidWorks file: M59890 MODULE, BACK PANEL, FLEX CONTROLLER.SLDDRW
M59890
G.V. 01/31/2017
®
