McCain FleX M73101S - Page 82

1
4
6
7
3
19
4
3
2
2
5
10
3
CUT 1.5 INCH AND
INSTALL ON PCB AS SHOWN
CUT TWO GROMMET LINES OF .95 INCH AND
INSTALL ON PANEL AS SHOWN
8
4
A
11
TIGHT THE CAPACITOR PASSING THE
WIRE TIES THRU THE HOLES ON M58996.
DO NOT STRESS WIRES
12
NEGATIVE POLARITY
POSITIVE POLARITY
DETAIL A
SCALE 2 : 1
12
Trimetric View

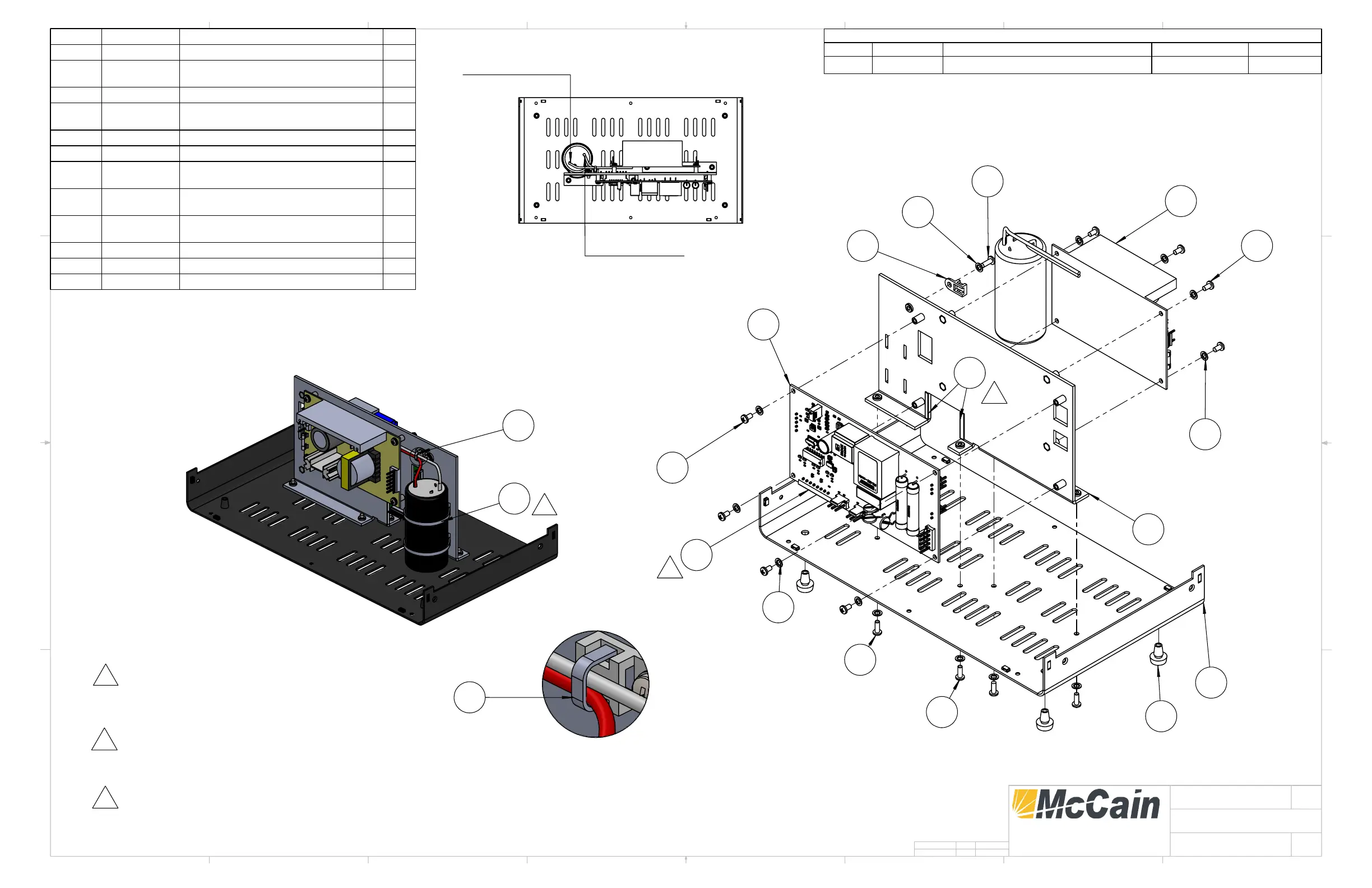

Exploded View
Top View
NOTES:
1
2
3
1
2
3
REVISIONS
REV. ECN DESCRIPTION DATE DWN
A1 EC-160033 INITIAL RELEASE JANUARY 16, 2017 J.G.
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 M11622 SCREW, 6-32 X 1/4, PH PN SS 8
2 M14679
GROMMET,EDGE .036-.062 C
PANDUIT #GES62F-C
.283ft
3 M11706 WASHER, #6, INT. TOOTH, SS 13
4 M11611 SCREW, 6-32 X 3/8, PH PN SS 5
5 M59669 BUMPER, PUSH FIT, FOOT 4
6 M58992 BOTTOM PANEL, FLEX CONTROLLER 1
7 M58996
PANEL, PWR SUP & CONTROL
SIGNALS, FLEX
1
8 M45891
ASSY, PWR SUP, W/BACKUP
CAPACITOR
1
9 M11966
MT CABLE TIE,SCREW DOWN
THOMAS & BETTS TC828TB
1
10 M58574A ASSY, PCB, CONTROL SIGNALS, FLEX 1
11 M11967 WIRE TIE,8,NATURAL, TYTON 2
12 M11960 WIRE TIE,4",NATURAL TYTON 1
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
TITLE:
SIZE
B
REV
A1
MODULE, BOTTOM PANEL,
FLEX CONTROLLER
SHEET 1 OF 1
CHECKED
DETAILED
PART NUMBER:
2365 OAK RIDGE WAY
VISTA, CA 92081
J.G. 16/01/2017
M59415
SolidWorks file: M59415 MODULE, BOTTOM PANEL, FLEX CONTROLLER.SLDDRW
M59415
G.V. 16/01/2017
®
