McCain FleX M73101S - Page 84

1
2
4
5
6
7
8
9
11
10
16
14
15
17
19
20
21
22
24
3
25
12
26
23
13
18

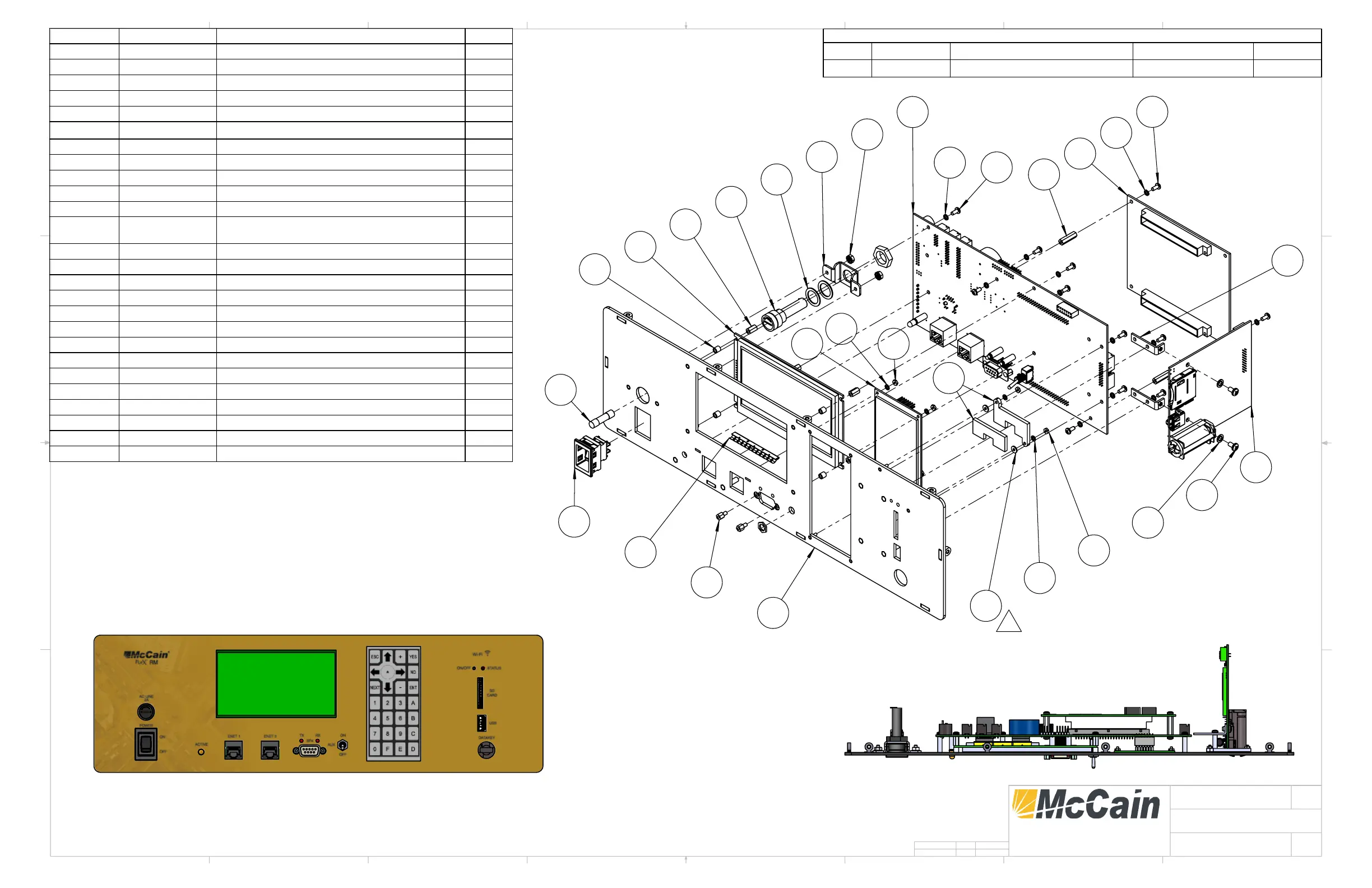

Exploded View
8
9
15
14
1
Front View
Top View
REVISIONS
REV. ECN DESCRIPTION DATE DWN
A EC-170006 INITIAL RELEASE FEBRUARY 1, 2017 J.G.
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 M14838 FUSE,2A,250V,SLO BLO BUSSMAN 1
2 M59352 SWITCH, ROCKER, SPST, 4A 125VAC 1
3 M46871 CLIP ON MOUNTING 1
4 M11671 JACKSCREW, 4-40 X 1/4 M/F 2
5 M59662 FRONT PANEL, FLEX RM CONTROLLER 1
6 M58995 WIFI, ANTENNA SUPPORT, FLEX 1PR
7 M11750 WASHER, #2, FLAT, NYLON 2
8 M11745 WASHER,#2,INT. TOOTH,SS 6
9 M41113 NUT 2-56 HEX, SS 6
10 M11706 WASHER, #6, INT. TOOTH, SS 2
11 M11622 SCREW, 6-32 X 1/4, PH PN SS 2
12 M73097A
ASSY, PCB, SD CARD, USB AND DK, FLEX
CONTROLLER, TH
1
13 M59351 BRACKET, L, PCB MOUNT, 6-32 STEEL 2
14 M11625 SCREW, 4-40 X 1/4, PH PN SS 12
15 M11717 WASHER #4 SPLIT SLOCK 12
16 M52284A ASSY, PCB, 2070-1C, ENGINE 1
17 M66392 STANDOFF,4-40 X3/16, 11/16, HEX, F/F, AL 2
18 M58570A ASSY, PCB, HOSTBOARD, FLEX. TH 1
19 M11783 KEPNUT, 4-40 SS 2
20 M57131 BRACKET, FUSE HOLDER, SUPPORT 1
21 M61389 WASHER, NYLON, 1/2" X 11/16" X .031thk 2
22 M57118 FUSE HOLDER,PANEL MT,1/4 1
23 M56523 STANDOFF, 4-40 X 11/32", 1/4" Hex, F/F, AL 4
24 M59321 ASSY, LCD/HARN, FLEX CONTROLLER 1
25 M54808 SPACER,#4,3/16L,NYLON 4
26 M66261 KEYPAD,7ROWX4COL,W/14POS 1
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
TITLE:
SIZE
B
REV
A
MODULE, FRONT PANEL,
FLEX RM CONTROLLER
SHEET 1 OF 1
CHECKED
DETAILED
PART NUMBER:
2365 OAK RIDGE WAY
VISTA, CA 92081
J.G. 02/01/2017
M73123
SolidWorks file: M73123 MODULE, FRONT PANEL, FLEX RM CONTROLLER.SLDDRW
M73123
G.V. 02/01/2017
®
