McCain FleX M73101S - Page 88

ITEM NO. PART NUMBER DESCRIPTION QTY.
1 M59926 BACK PANEL, FLEX RM CONTROLLER W/OUT FIO 1
2 M11671 JACKSCREW, 4-40 X 1/4 M/F 8
3 M11706 WASHER, #6, INT. TOOTH, SS 4
4 M58571A ASSY, PCB, SERIAL INTERFACE, FLEX, TH 1
5 M11622 SCREW, 6-32 X 1/4, PH PN SS 4
REVISIONS
REV. ECN DESCRIPTION DATE DWN
A EC-160038 INITIAL RELEASE DECEMBER 22, 2016 J.G.
Top View
Front View

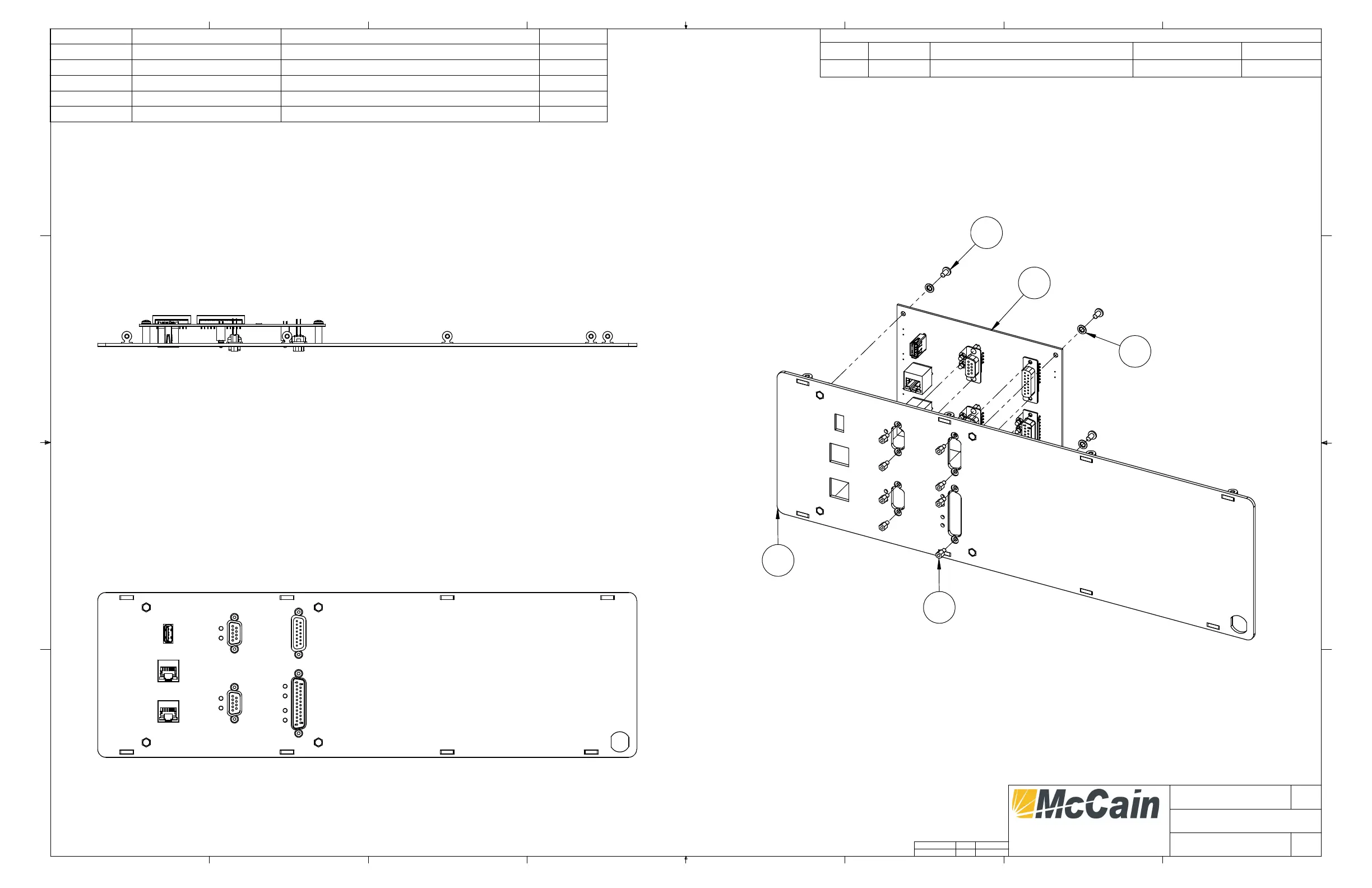

Exploded View
