McCain FleX M73101S - Page 90

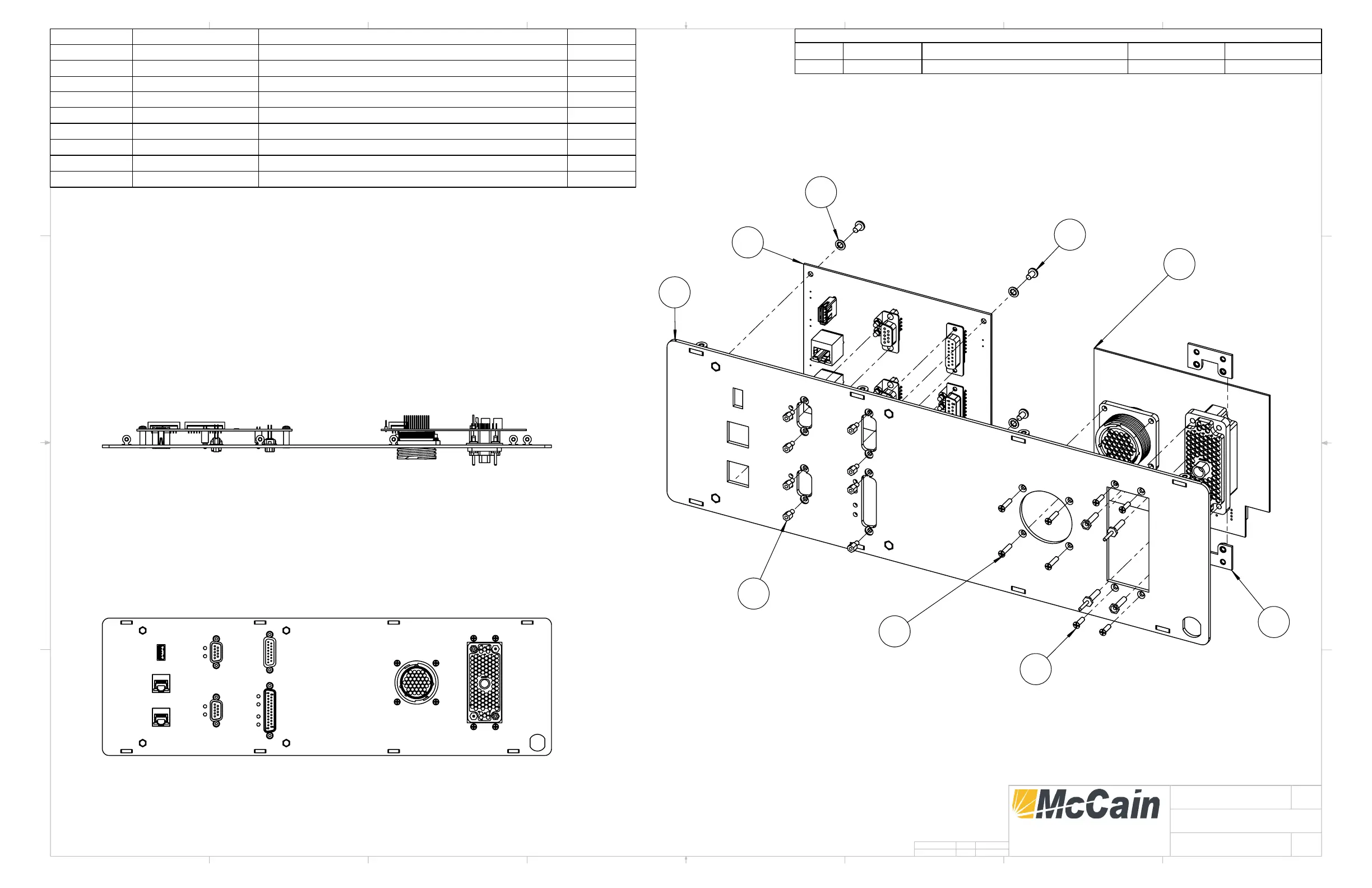

Exploded View
1
2
3
4
5
6
9
8
7
Top View
Front View
REVISIONS
REV. ECN DESCRIPTION DATE DWN
A EC-160036 INITIAL RELEASE DECEMBER 22, 2016 J.G.
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 M59664 BACK PANEL, FLEX RM CONTROLLER 1
2 M11671 JACKSCREW, 4-40 X 1/4 M/F 8
3 M59899 SCREW,4-40 X 1/2,PH,FH,SS, 100 DEG, BLACK 4
4 M44730 SCREW,4-40 X 3/8,PH,FH,SS, 100 DEG, BLACK 4
5 M64054 C1 BRACKET, 2070-2 FIELD I/O 2070 2
6 M58573A ASSY, PCB, FIELD I/O BOARD, FLEX 1
7 M11622 SCREW, 6-32 X 1/4, PH PN SS 4
8 M11706 WASHER, #6, INT. TOOTH, SS 4
9 M58571A ASSY, PCB, SERIAL INTERFACE, FLEX, TH 1
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
TITLE:
SIZE
B
REV
A
MODULE, BACK PANEL,
FLEX RM CONTROLLER,
FIO
SHEET 1 OF 1
CHECKED
DETAILED
PART NUMBER:
2365 OAK RIDGE WAY
VISTA, CA 92081
J.G.
12/22/2016
M59663
SolidWorks file: M59663 MODULE, BACK PANEL, FLEX RM CONTROLLER, FIO.SLDDRW
M59663
G.V.
12/22/2016
®
