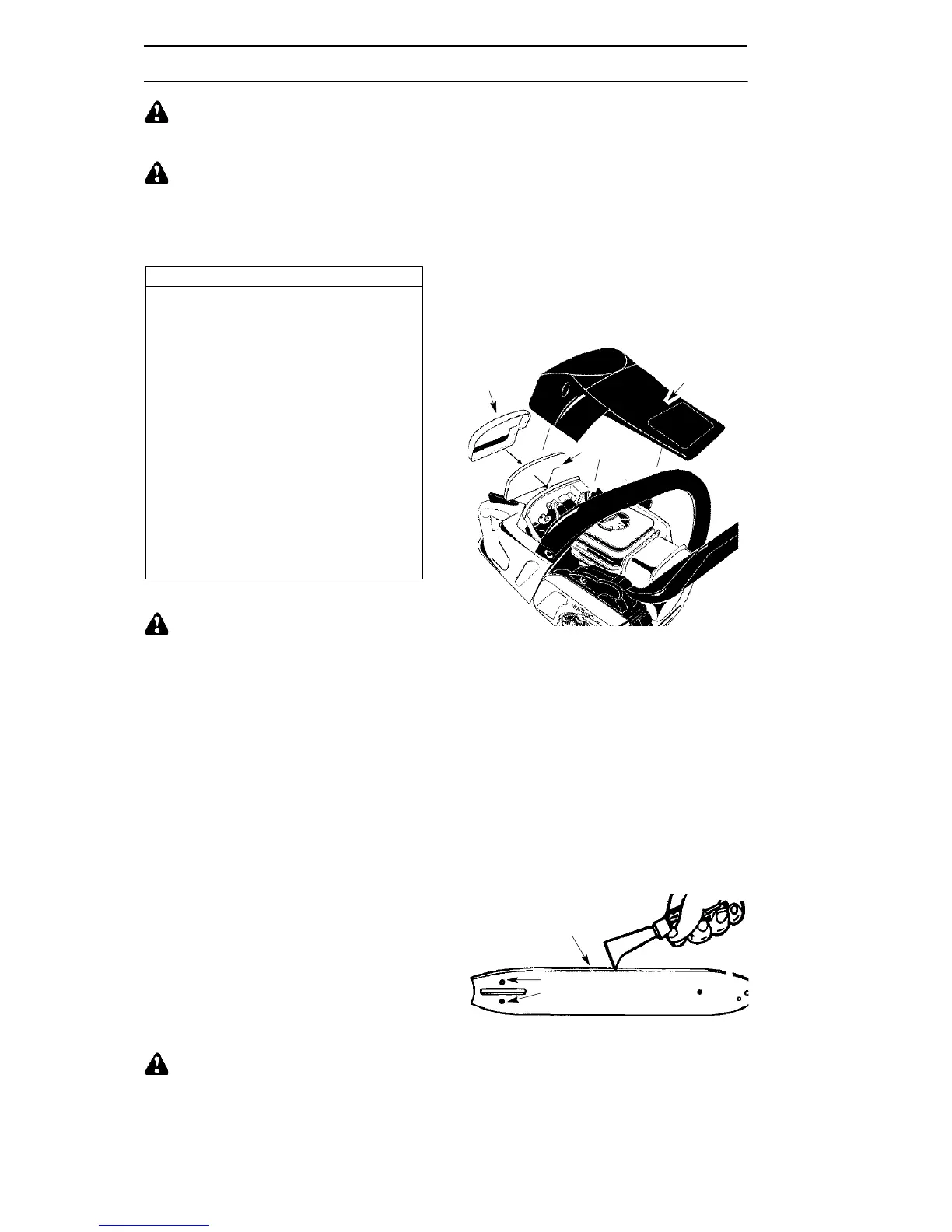

15
SERVICE AND ADJUSTMENTS
WARNING: Improper maintenance
could result in serious engine damage or in se-
rious in jury .
WARNING: Disconnect the spark
plug before performing maintenance, except
for carburetor adjustments.
We recommend all service and adjustments
not listed in this manual be performed by an
Authorized Service Dealer .
MAINTENANCE SCHEDULE
Check:
Fuel mixture level Before each use....
Bar lubrication Before each use.......
Chain tension Before each use.......
Chain sharpness Before each use....
For damaged parts Before each use..
F or loose caps Before each use......
For loose fasteners Before each use...
F o r loose parts Before each use......
Inspect and Clean:
Bar Before each use................
Complete saw After each use.......
Air filter Every 5 hours*.............
Chain brake Every 5 hours*........
Spark a rresting screen
and muffler Every 25 hours*.........
Replace spark plug Yearly.
Replace fuel filter Yearly...
*HoursofOperation
CHAIN BRAKE
WARNING: If the brake band is worn
too thin it may break when the chain brake is
triggered. With a broken brake band, the chain
brake will not stop the chain. The chain brake
should be replaced by an authorized service
dealer if any part is worn to less than 0,02″ (0,5
mm) thick. Repairs on a chain brake should be
made by an authorized service dealer. Take
your unit to the place of purchase if purchased
from a servicing dealer, or to the nearest autho-
rized master service dealer .
BRAKING FUNCTION CONTROL
CAUTION: The chain brake must be
checked several times daily. The engine
must be running when performing this proce-
dure. This is the only instance when the saw
should be placed on the ground with the en-
gine running.
Place the saw on firm ground. Grip the rear
handlewith your right hand and the fronthan-
dle with your left hand. Apply full throttle by
fully depressing the throttle trigger . Activate
the chain brake by turning your left wrist
against the hand guard without releasing
your grip around the front handle. The chain
should stop immediately.
AIR FILTER
CAUTION: Do not clean filter in gaso-
line or other flammable solvent to avoid
creating a fire hazard or producing harmful
evaporative emissions.
Cleaning the air filter:
A dirty air filter decreases engine perform-
ance and increases fuel consumption and
harmful emissions. Always clean after every
5 hours of operation.
1. Clean the cover and the area around it to
keep dirt and sawdust from falling into
the carburetor chamber when the cover
is removed.
2. Remove the parts as illustrated.
3. Wash the filter in soap and water . Rinse
in clean cool water . Air dry completely
before reinstalling.
4. Reinstall parts.
Air Filter
Cover
Cylinder
Cover
Air Filter
BAR MAINTENANCE
If your saw cuts to one side, has to be forced
through the cut, or been run with an improper
amount of bar lubrication it may be neces-
sary to serviceyour bar. A worn bar will dam-
age your chain and make cutting difficult.
After each use, ensure ON/STOP switch is
in the STOP position, then clean all sawdust
from the guide bar and sprocket hole.
To maintain guide bar:
S Move ON/STOP switch to the ST OP posi-
tion.
S Loosen and remove bar nuts and chain
brake. Remove bar and chain from saw.
S Clean the oil holes and bar groove after each
5 hours of operation.
Remove Sawdust From
Guide Bar Groove
Oil Holes
S Burring of guide bar rails is a normal
process of rail wear. Remove these burrs
with a flat file.
S When rail top is uneven, use a flat file to re-
store square edges and sides.
