McCulloch M12592RB - Decals; Wheels & Tires

13
REPAIR PARTS

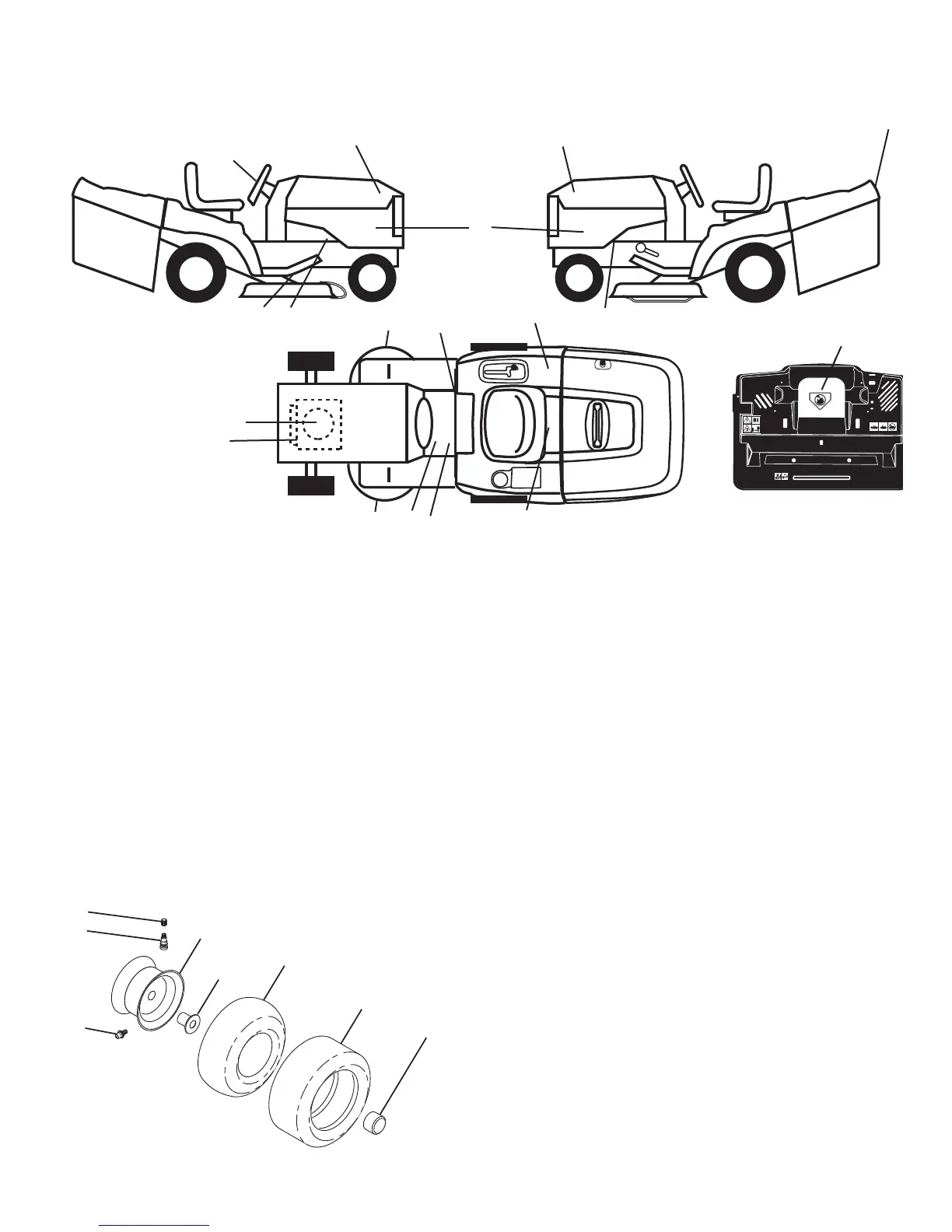

TRACTOR- -MODEL NO. M12592RB (96061016901) PRODUCT NO. 960 61 01-69
DECALS
WHEELS & TIRES
KEY PART
NO. NO. DESCRIPTION
1 532 40 82-52 Decal Hood
2 532 40 03-89 Decal Warning Symbols CE
3 532 18 88-08 Decal HP Engine
4 532 40 82-03 Decal Steering Wheel
5 532 40 88-08 Decal Fender Logo
6 532 19 68-41 Decal Warning Engine Symbols
8 532 15 97-37 Decal Brake/Clutch Symbol
9 532 40 82-53 Decal Hood LH
10 532 14 50-05 Decal Bat Dan/Poi P/L Sym Wpn
11 532 18 21-66 Decal Mower Cut Finger Symbol
12 532 18 04-32 Decal Fender 100 DB/CE
13 532 40 82-82 Decal Side Panel
14 532 15 97-36 Decal Chassis Hot Muffler
15 532 19 68-42 Decal Warning Cut Finger
17 532 14 08-37 Decal Saddle Brake Parking
21 532 16 62-86 Decal Deck Sch 92 CRD
- - 532 18 10-91 Pad Footrest LH
- - 532 18 10-90 Pad Footrest RH
- - 532 13 83-11 Decal Lift Handle
- - 532 41 08-91 Manual Operator's (Euro)
- - 532 41 09-51 Manual Operator's (Scan)
- - 532 41 09-52 Manual Operator's (E-Bloc)
- - 532 41 09-54 Manual Operator's (Baltic)
- - 532 41 38-33 Manual Parts
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Value Tire
2 532 06 51-39 Stem Value
3 532 10 62-22 Tire F Ts 15 x 6 0 - 6 Service
4 532 05 99-04 Tube Inner Front #35060
5 532 12 51-21 Rim Asm Front Service
6 532 12 49-57 Fitting Grease
7 532 12 49-59 Bearing Flange
8 532 12 51-22 Rim Asm 8" rear Service
9 532 10 62-68 Tire R Ts 18 x 9.5-8 Service
10 532 12 49-26 Tube Rear 9 5 x 8 Service
11 532 17 50-39 Cap Axle Blk 1 50 x 1 00
- - 532 14 43-34 Sealant, Tire (10 oz. tube)
6
2
1
5,8
4,10
3,9
11
7
wheel_1
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
