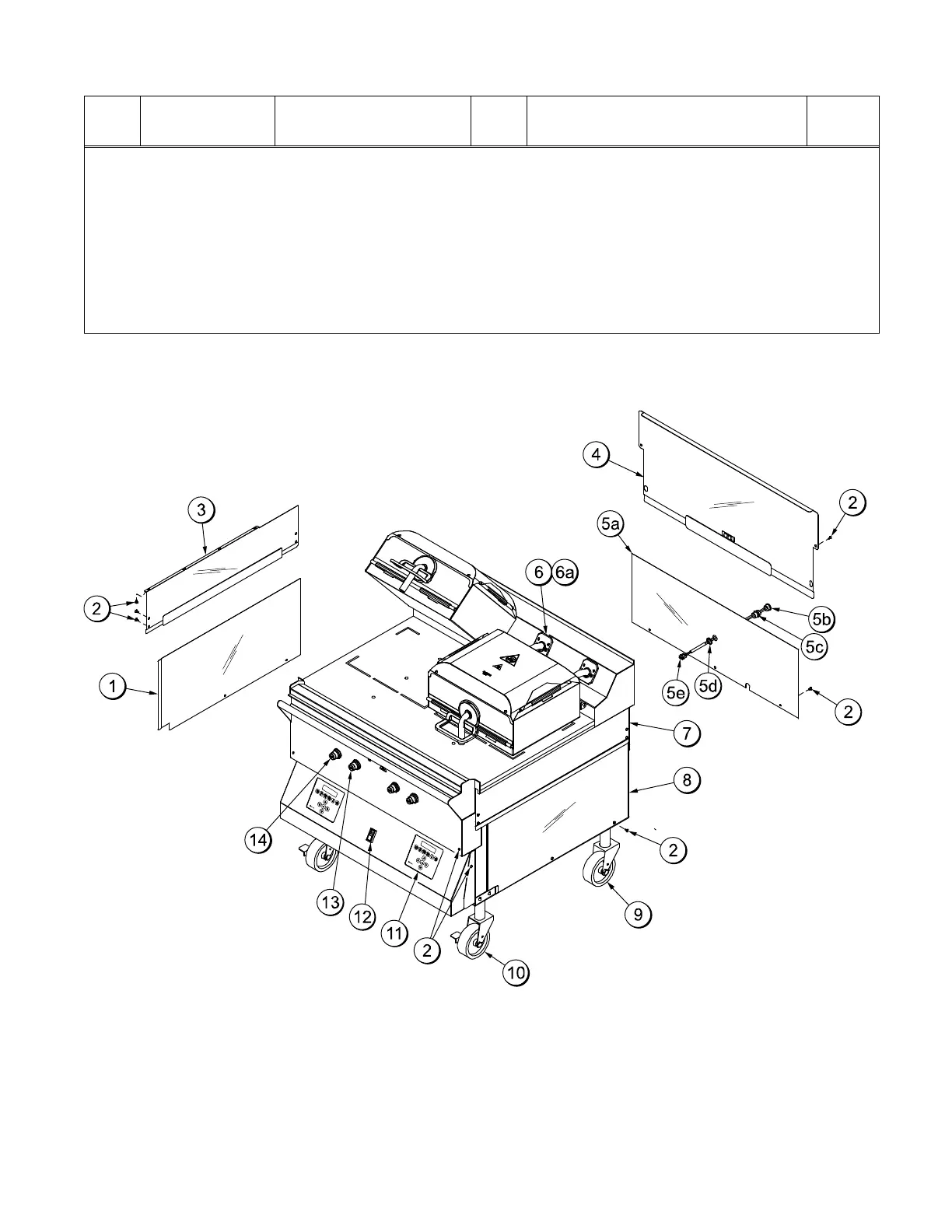

C832 Exploded View
ITEM
PART NO. DESCRIPTION QTY. FUNCTION WARR.
CLASS
13 076012 ButtonOperatorBlack
(Standby)
2 Activates the cook cycle, keeps
the upper platen in the closed po
sition, and displays the message
“STANDBY” on the control. When
pressed twice within five seconds,
the upper platen will automatically
lower into the Standby position.
000
14 076011 ButtonOperatorRed
(Raise)
2 Cancels the Standby mode, raises
the upper platen, and deactivates
the Cook cycle.
000
