Overview

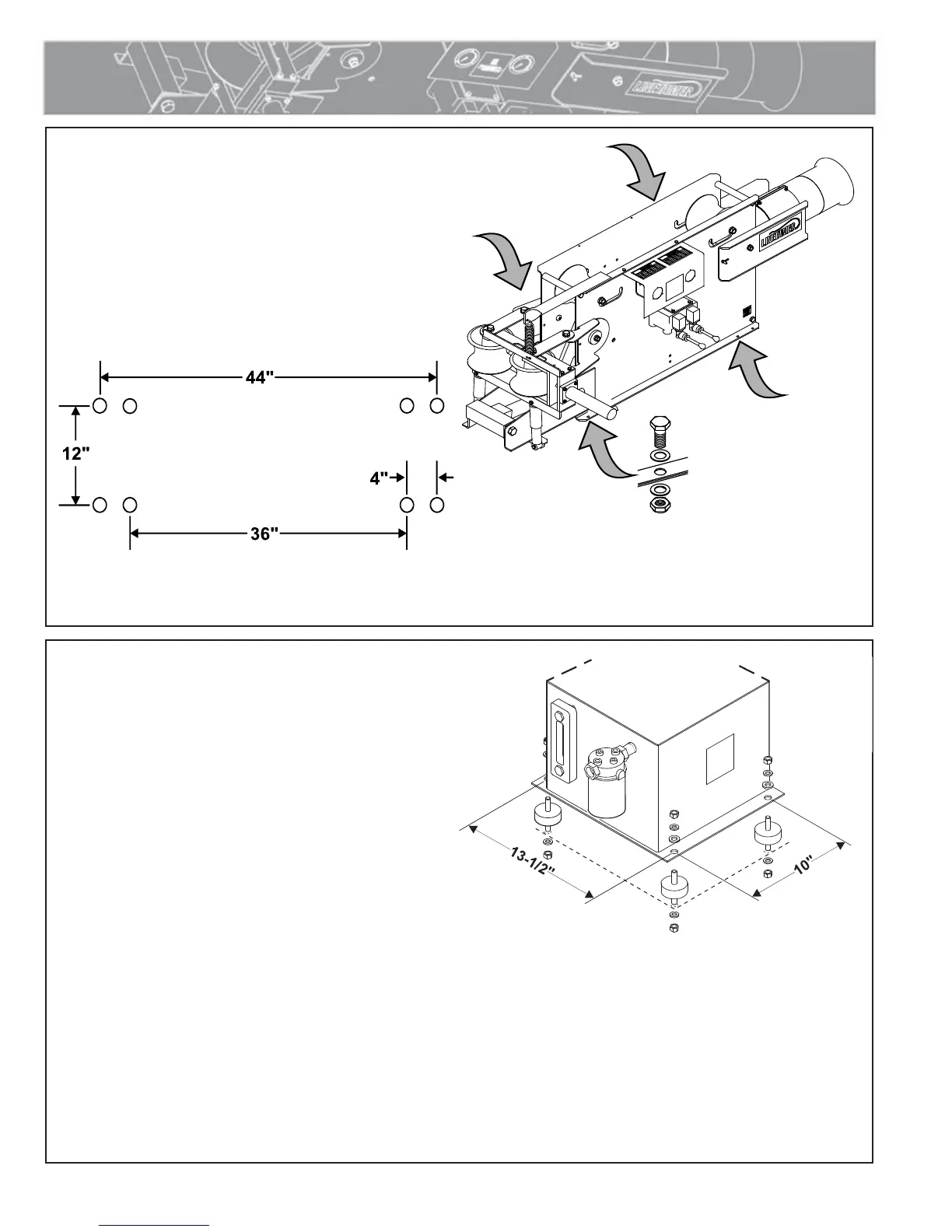

Installing Hydraulic Power Unit
Drill 7/16" holes at the dimensions shown, or use the four
mounting holes on the HPU as a guide.
Shock mounts are provided to isolate the engine vibration
from the mounting frame.
Install the Shock Mounts in the mounting surface and
secure on the bottom with 3/8" Regular Split Lock
Washers and 3/8"-16NC Finished Hex Nuts.
Position the HPU mounting holes over the shock mounts.
Attach HPU with 3/8" Type A Wide Flat Washers, 3/8"
Regular Split Lock Washers and 3/8"-16NC Finished Hex
Nuts.
TX02488-04-26-05
Installing LineTamer
A location should be selected of adequate construction to
support the weight and forces involved with the operation
of the LineTamer. Using the hole pattern dimensions as a
guide, drill four 7/16" holes through the mounting surface.
Use 3/8"-16NC Hex Head Cap Screws of adequate
length. Use 3/8" Type A Wide Flat Washers and 3/8"-
16NC Finished Hex Nylon Lock Nuts.
TX02487-04-26-05
CD00375-04-26-05
CD00374-04-26-05CD00376-04-26-05
