4 - 2

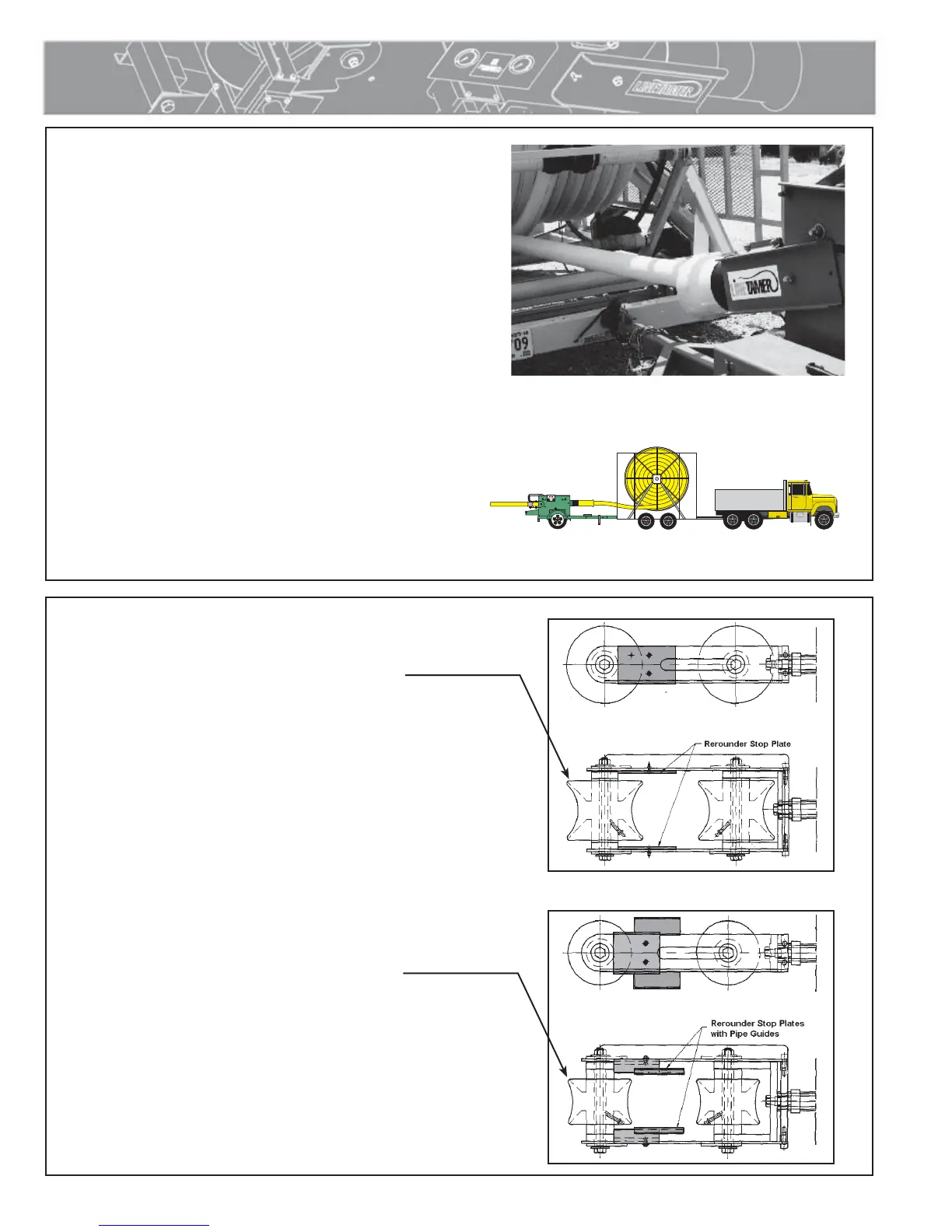

Positioning Pipe Payout
Make sure that the pipe payout from the reel or cage is lined up
with the center of the pipe guide. The pipe preparation machine
must be positioned directly in front of the payout from the coil.
IMPORTANT: The pipe may not be straightened or rerounded
properly if the unit is not positioned correctly.
The pipe coil, LineTamer and pulling vehicle must be in alignment
and make a straight pull during operation.
TX00583-8-10-95
PH00493-8-28-95
Rerounder Rollers
When changing rerounding rollers, the stop
plates must be installed as shown. Ensure that
the correct rollers and guide blocks are installed
for pipe size being used.
A. 4" to 6" pipe configuration.
B. 4" to 3” configuration.
TX00581-8-10-95
CD00174-9-13-95
CD00179-9-19-95
CD00173-9-13-95
A
B
Preparation for Pulling
4" to 3” Roller
4" to 6” Roller
To Next Page
