5 - 4
Operation

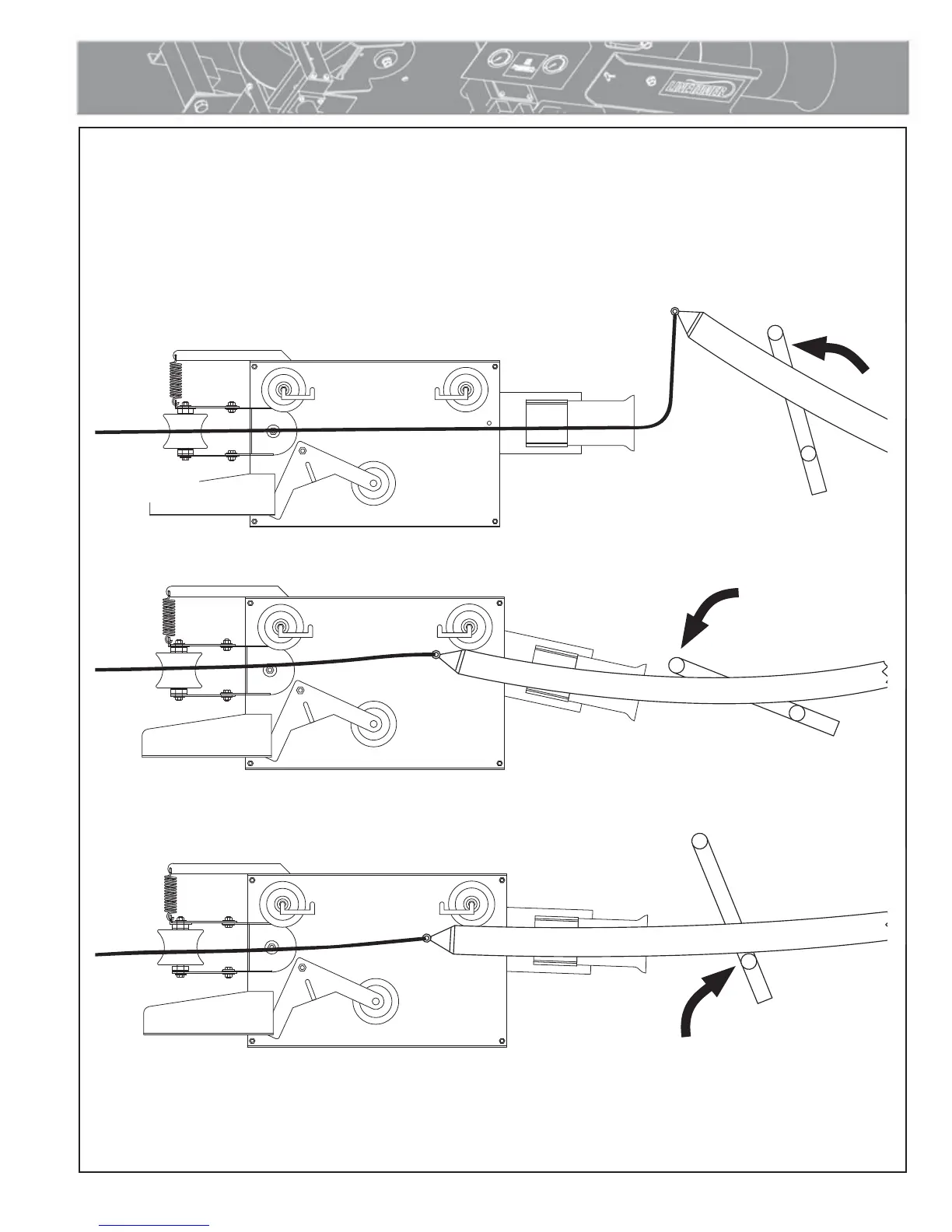

Loading Pipe into LineTamer
Install pulling head in pipe.
Raise threading rollers to highest position and manually roll pipe beneath #1 threading roller.
Attach pulling strap to pulling head.
NOTICE: Use only soft straps or rope to avoid any sharp edges which can damage rollers.
Lower threading roller #1 to align pipe with LineTamer pipe guide.
Pull pipe just past the first roller and stop.
Raise threading roller #2 to align pipe with second roller.
TX02580-1-10-06
CD00707-1-10-06
#1 Threading Roller
#2 Threading Roller
First Roller
Second Roller
Bottom Roller
Rerounding
Rollers
CD00706-1-10-06
CD00708-1-10-06
To Next Page
