McHale 991BC - Table down Magnet (991 B Series)

McHale 991B Round Bale Wrapper
67
11.7 Table down magnet (991 B series)
The table down magnet does not normally require adjustment. However, as it is used
to signal the table to start indexing to the loading position, it may need to be re-set.
1. Tip up the table and fit the safety bar
2. Loosen the M6 nut on the magnet
3. Move the magnet upwards to sense when the table is nearer the chassis, i.e.
the table lowers more before indexing
4. Move the magnet downwards to sense when the table is further away from the
chassis, i.e. the table lowers less before indexing. Do not push down too far,
as the table may hit the bale damper while indexing.
5. Tighten the M6 nut.
6. Remove the table safety bar and lower the table back down. Test to ensure that
the machine is operating correctly and re-adjust, if necessary.

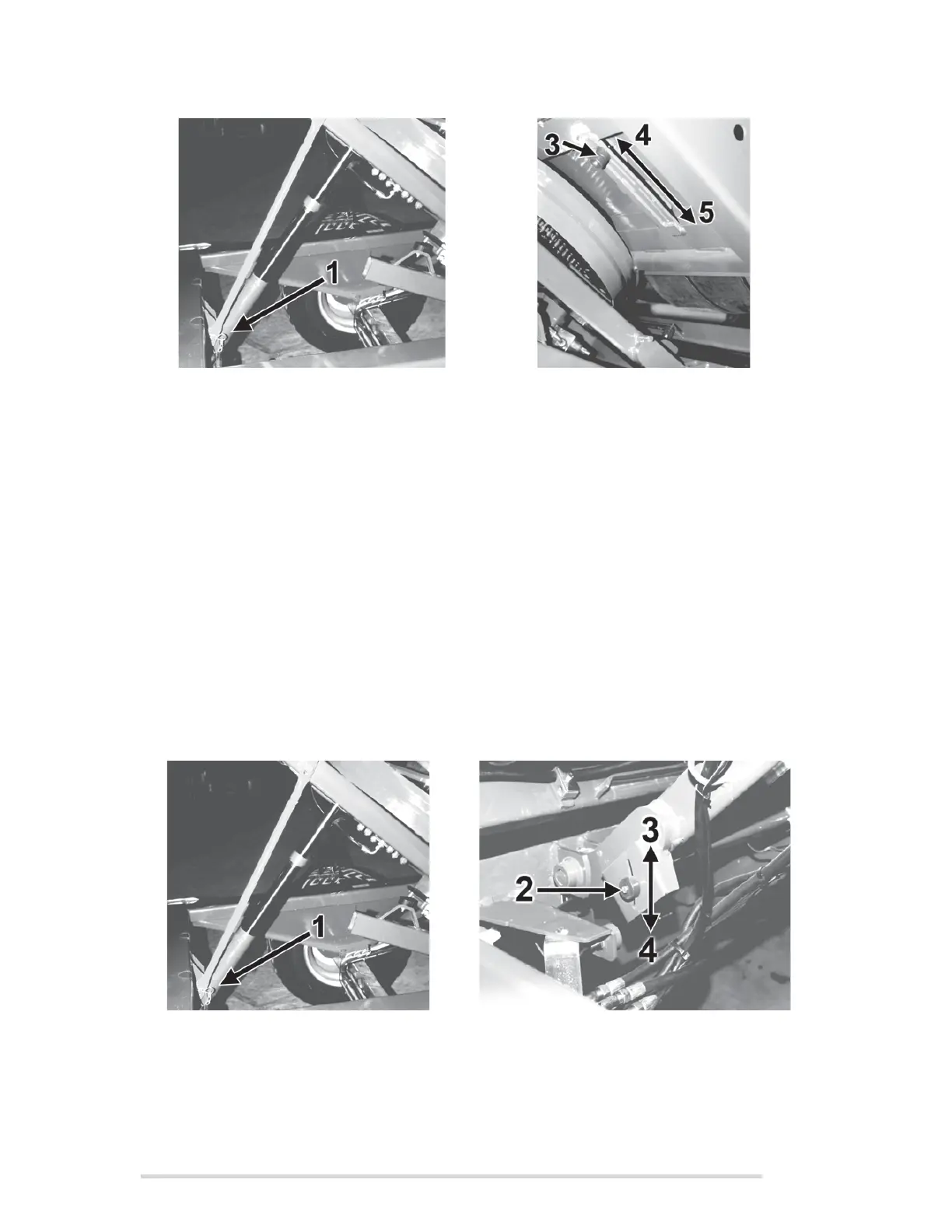

Figure 11.g - Tip up table & fit safety bar Figure 11.h - Table load position magnet
Figure 11.i - Tip up table & fit safety bar Figure 11.j - Table down magnet 2
