To adjust go through the following procedure:
1. Remove the chain guard by undoing the 2 x M8 setscrews
2. Loosen the 4 x M16 nuts and bolts holding on the bearings
3. Tighten the 4 x M16 nuts and bolts
4. Repeat for the other chain
5. Replace the chain guard with the 2 x M8 setscrews
Figure 11.q - Table cradle drive chains
11.9.3 Table roller drive chains
After a period of time, it may become necessary to readjust the table roller drive chains.
To adjust go through the following procedure:
1. Remove the chain guard by undoing the 2 x M8 setscrews
2. Loosen the 3 x M10 nuts and bolts holding on the bearings
3. Adjust the roller using the snail cam
4. Repeat for the other roller drive chains
5. Replace the chain guard with the 2 x M8 handwheels
NOTE: Ensure both chains have the same number of links
This procedure is also used for adjusting roller centres. The chain length
may have to be adjusted to achieve this. Always ensure both chains
have the same number of links.

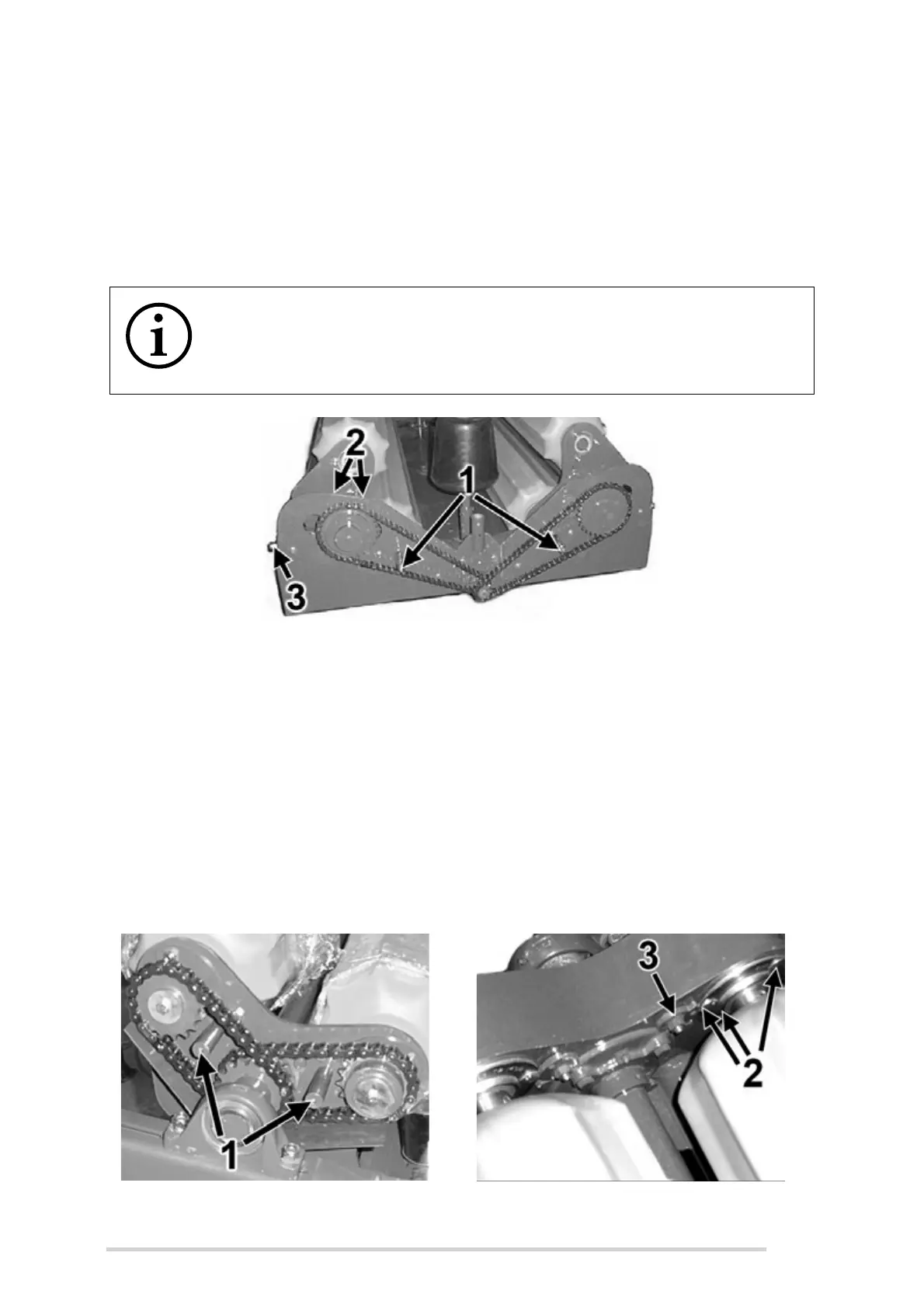

Figure 11.r - Table roller drive chains Figure 11.s - Table drive chain
