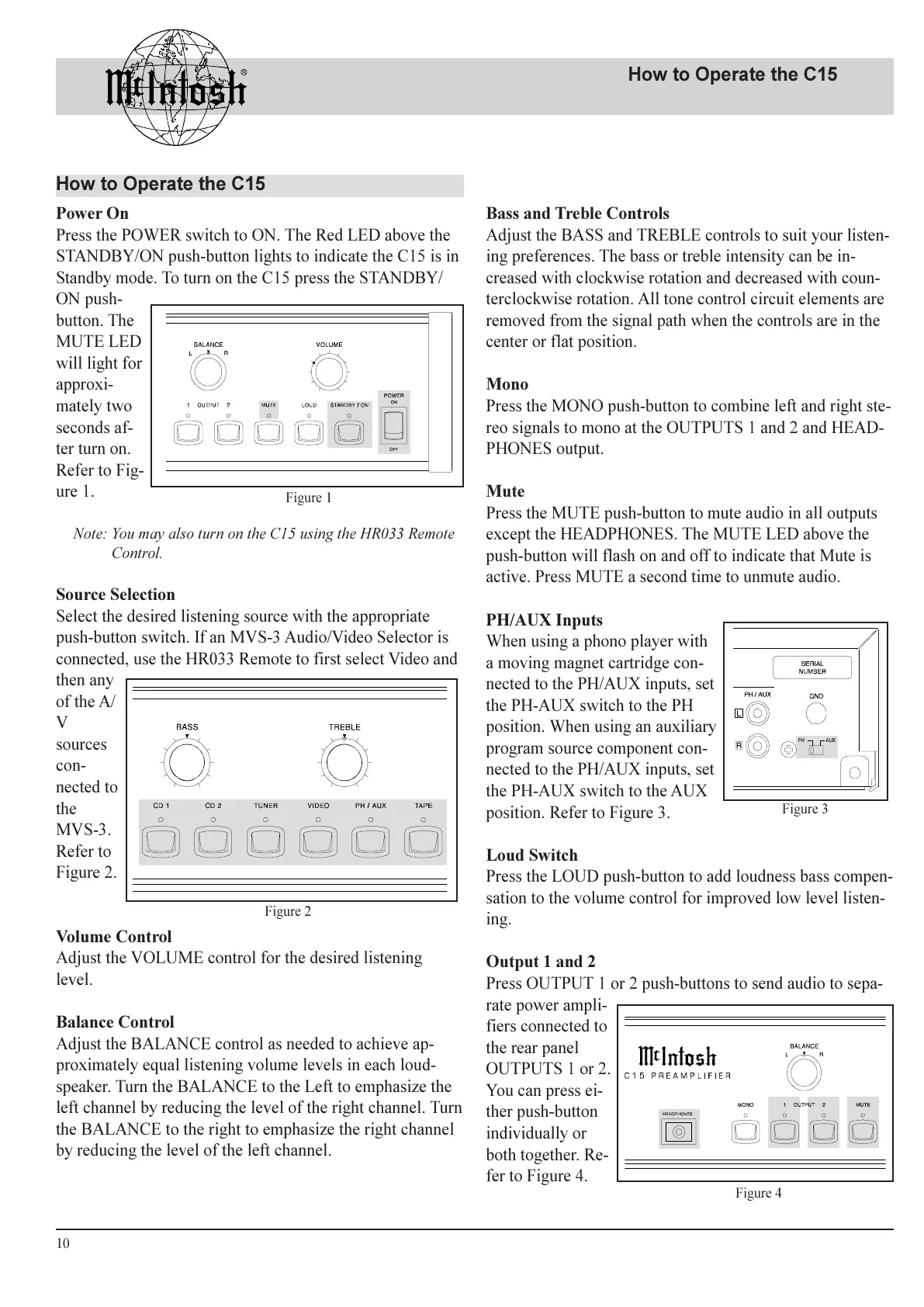

How to Operate the C15
How to Operate the C15
Power On
Press the POWER switch to ON. The Red LED above the
STANDBY/ON push-button lights to indicate the C15 is in
Standby mode. To turn on the C15 press the STANDBY/
ON push-
button. The
MUTE LED
will light for
approxi-
mately two
seconds af-
ter turn on.
Refer to Fig-
ure 1.
Note: You may also turn on the C15 using the HR033 Remote
Control.
Source Selection
Select the desired listening source with the appropriate
push-button switch. If an MVS-3 Audio/Video Selector is
connected, use the HR033 Remote to first select Video and
then any
of the A/
V
sources
con-
nected to
the
MVS-3.
Refer to
Figure 2.
Volume Control
Adjust the VOLUME control for the desired listening
level.
Balance Control
Adjust the BALANCE control as needed to achieve ap-
proximately equal listening volume levels in each loud-
speaker. Turn the BALANCE to the Left to emphasize the
left channel by reducing the level of the right channel. Turn
the BALANCE to the right to emphasize the right channel
by reducing the level of the left channel.
Bass and Treble Controls
Adjust the BASS and TREBLE controls to suit your listen-
ing preferences. The bass or treble intensity can be in-
creased with clockwise rotation and decreased with coun-
terclockwise rotation. All tone control circuit elements are
removed from the signal path when the controls are in the
center or flat position.
Mono
Press the MONO push-button to combine left and right ste-
reo signals to mono at the OUTPUTS 1 and 2 and HEAD-
PHONES output.
Mute
Press the MUTE push-button to mute audio in all outputs
except the HEADPHONES. The MUTE LED above the
push-button will flash on and off to indicate that Mute is
active. Press MUTE a second time to unmute audio.
PH/AUX Inputs
When using a phono player with
a moving magnet cartridge con-
nected to the PH/AUX inputs, set
the PH-AUX switch to the PH
position. When using an auxiliary
program source component con-
nected to the PH/AUX inputs, set
the PH-AUX switch to the AUX
position. Refer to Figure 3.
Loud Switch
Press the LOUD push-button to add loudness bass compen-
sation to the volume control for improved low level listen-
ing.
Output 1 and 2
Press OUTPUT 1 or 2 push-buttons to send audio to sepa-
rate power ampli-
fiers connected to
the rear panel
OUTPUTS 1 or 2.
You can press ei-
ther push-button
individually or
both together. Re-
fer to Figure 4.
