7

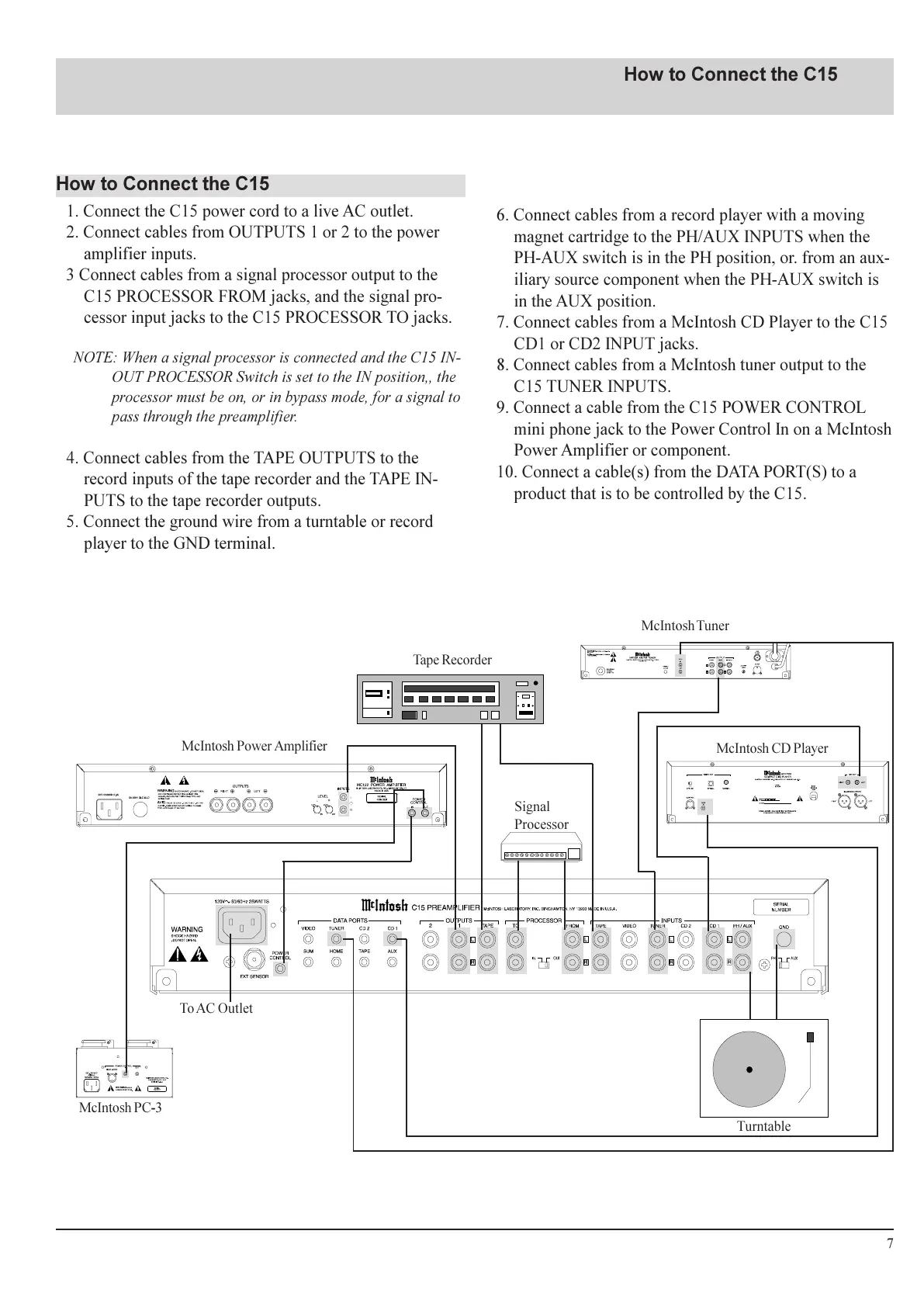

How to Connect the C15
How to Connect the C15
To AC Outlet
Tape Recorder
Turntable
McIntosh Tuner
Signal
Processor
McIntosh Power Amplifier
McIntosh PC-3
McIntosh CD Player
1. Connect the C15 power cord to a live AC outlet.
2. Connect cables from OUTPUTS 1 or 2 to the power
amplifier inputs.
3 Connect cables from a signal processor output to the
C15 PROCESSOR FROM jacks, and the signal pro-
cessor input jacks to the C15 PROCESSOR TO jacks.
NOTE: When a signal processor is connected and the C15 IN-
OUT PROCESSOR Switch is set to the IN position,, the
processor must be on, or in bypass mode, for a signal to
pass through the preamplifier.
4. Connect cables from the TAPE OUTPUTS to the
record inputs of the tape recorder and the TAPE IN-
PUTS to the tape recorder outputs.
5. Connect the ground wire from a turntable or record
player to the GND terminal.
6. Connect cables from a record player with a moving
magnet cartridge to the PH/AUX INPUTS when the
PH-AUX switch is in the PH position, or. from an aux-
iliary source component when the PH-AUX switch is
in the AUX position.
7. Connect cables from a McIntosh CD Player to the C15
CD1 or CD2 INPUT jacks.
8. Connect cables from a McIntosh tuner output to the
C15 TUNER INPUTS.
9. Connect a cable from the C15 POWER CONTROL
mini phone jack to the Power Control In on a McIntosh
Power Amplifier or component.
10. Connect a cable(s) from the DATA PORT(S) to a
product that is to be controlled by the C15.
