McIntosh Video/Audio Selector
How to Connect the C15
for Video Switching
How to Connect the C15 for Video Switching
Monitor
McIntosh Video Disc Player

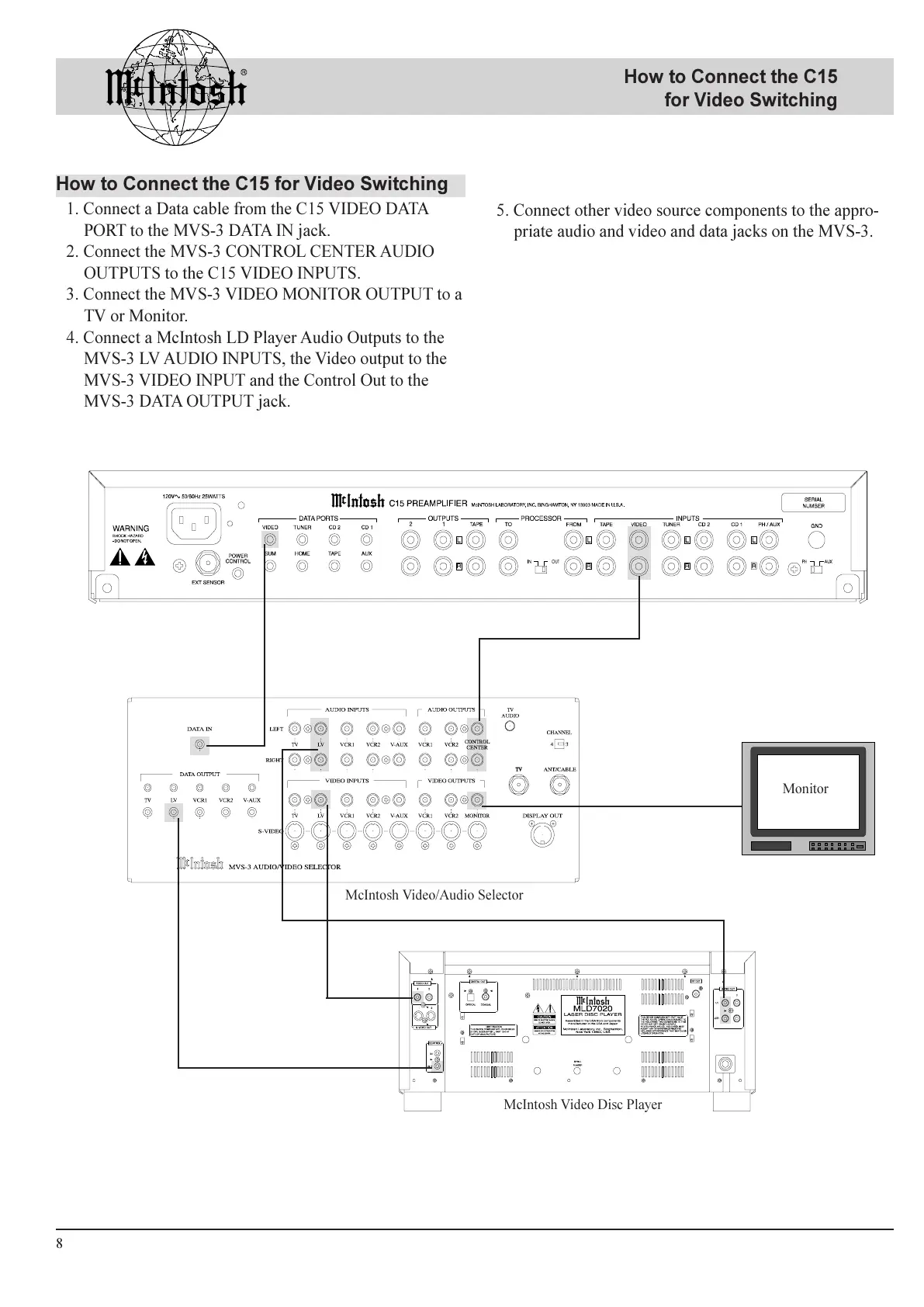

1. Connect a Data cable from the C15 VIDEO DATA
PORT to the MVS-3 DATA IN jack.
2. Connect the MVS-3 CONTROL CENTER AUDIO
OUTPUTS to the C15 VIDEO INPUTS.
3. Connect the MVS-3 VIDEO MONITOR OUTPUT to a
TV or Monitor.
4. Connect a McIntosh LD Player Audio Outputs to the
MVS-3 LV AUDIO INPUTS, the Video output to the
MVS-3 VIDEO INPUT and the Control Out to the
MVS-3 DATA OUTPUT jack.
5. Connect other video source components to the appro-
priate audio and video and data jacks on the MVS-3.
To Next Page
