IR Sensor receives
commands from a
Remote Control
STANDBY/ON
Push-button with
indicator, switches
the D100 ON or OFF
(Standby) and resets
the microprocessors
LEVEL Control allows
adjustment of the listening
level for both channels
Connection for low
impedance dynamic
headphones, for
private listening
MUTE Push-button
with indicator, mutes
the audio from the
Loudspeakers
INPUT Control allows the
selection of digital sources
(1 - 5) for listening
INFORMATION DISPLAY
indicates the Source, Volume
Level, Sampling Frequency, Bit
Depth, Operational Functions
and Setup Mode Settings

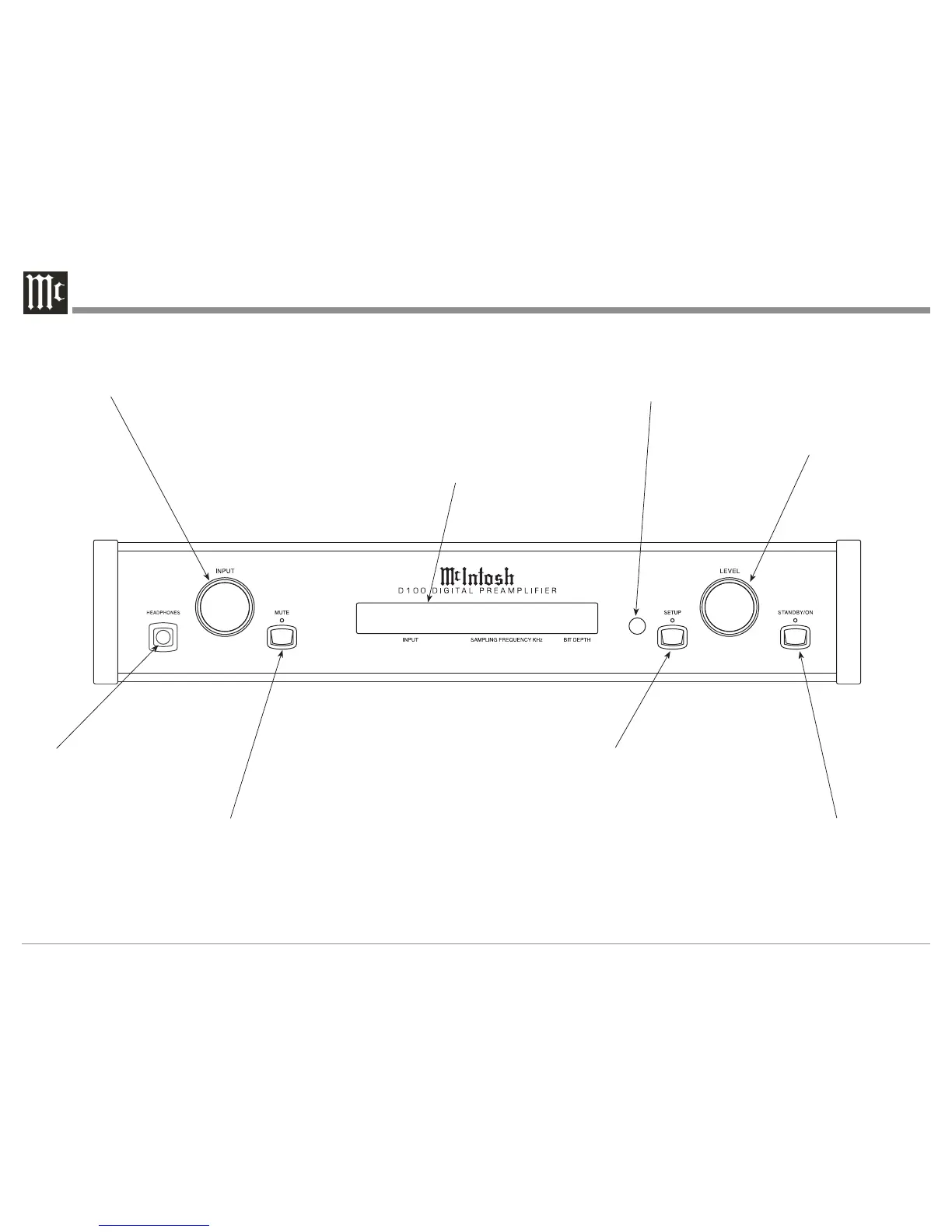

Front Panel Displays, Controls, Push-buttons and Jack
SETUP Push-button with
indicator, activates the Setup
Mode for changing operational
settings
