14
or press the appropriate push-button on the Remote
Control. Refer to figures 50 and 53.
Level Control
Rotate the Front Panel LEVEL Control (Volume) or
use the LEVEL Upp or Downq Push-buttons on the
Remote Control for the desired listening level. Refer to
figures 50 and 53.
Mute
Press the MUTE Push-button on the D100 Front Panel
to mute the Audio in all outputs except the HEAD-
PHONES Output Jack. Pressing the Mute Push-button
a second time will un-mute the D100.
Headphones Jack
Connect a pair of dynamic headphones to the Head-
phones Jack with a 1/4” (0.635cm) stereo phone type
plug for private listening. Press MUTE Push-button to
mute the Loudspeakers.
Note: The Headphone Output is optimized for imped-
ances ranging from 20 to 600 ohms.
Power On and Off
The Red LED above the STANDBY/ON Push-but-
ton lights to indicate the D100 is in Standby mode.
To switch ON the D100, press the STANDBY/ON
Push-button on the Front Panel or the (Power On)
Push-button on the Remote Control. The D100 will
go through a brief startup initialization with the Front
Panel Information Display indicating the Level Per-
centage (Volume) and then the last used Input Source.
Refer to figures 50, 51, 52 and 53. To switch OFF the
D100 press the STANDBY/ON Push-button on the
Front Panel or the (Power Off) Push-button on the
Remote Control.
Source Selection
Rotate the INPUT Control to select the desired source

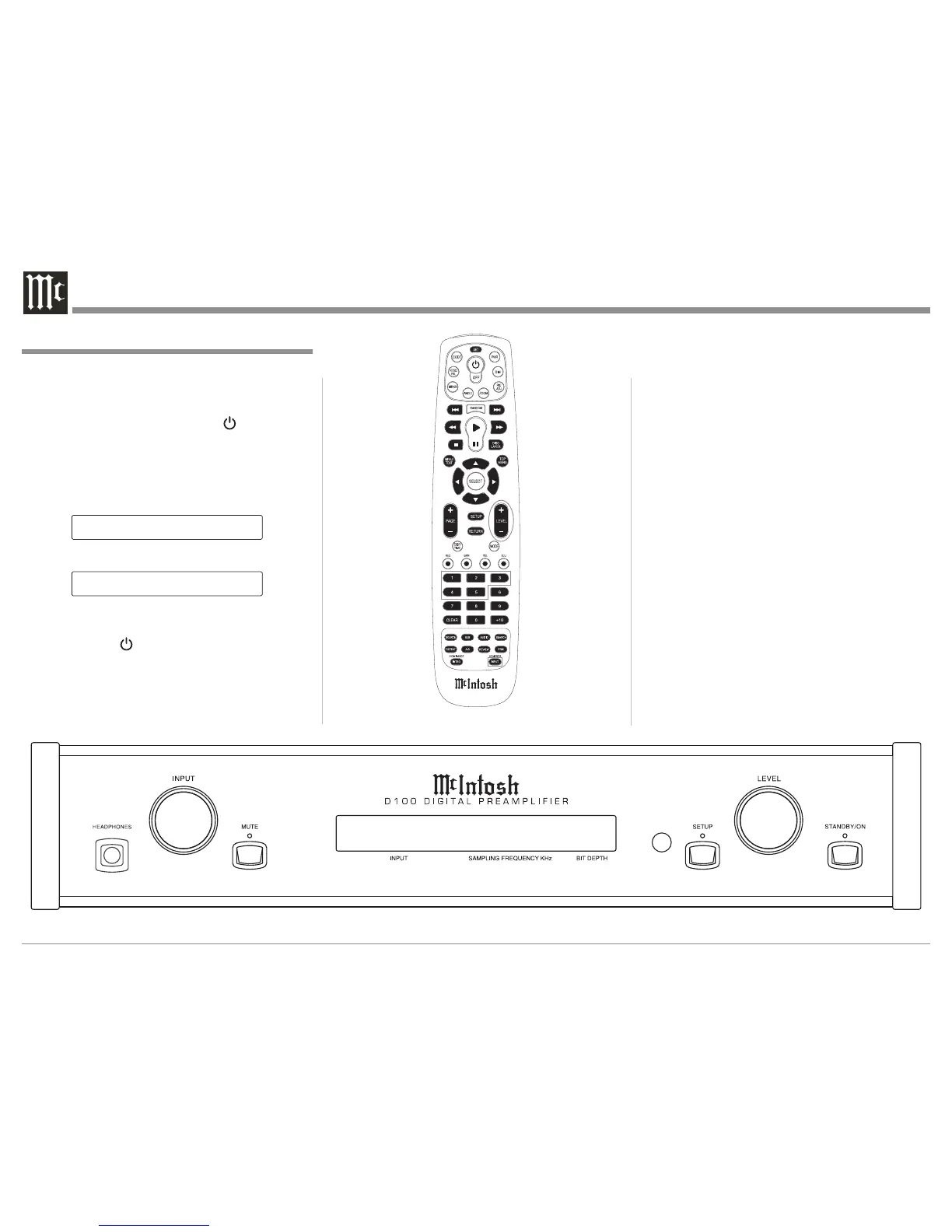

How to Operate the D100
Figure 50
5 USB 192 24
Figure 53
HOME
Figure 51
LEVEL 76%
Figure 52
1 COAX1 . . . . . .
