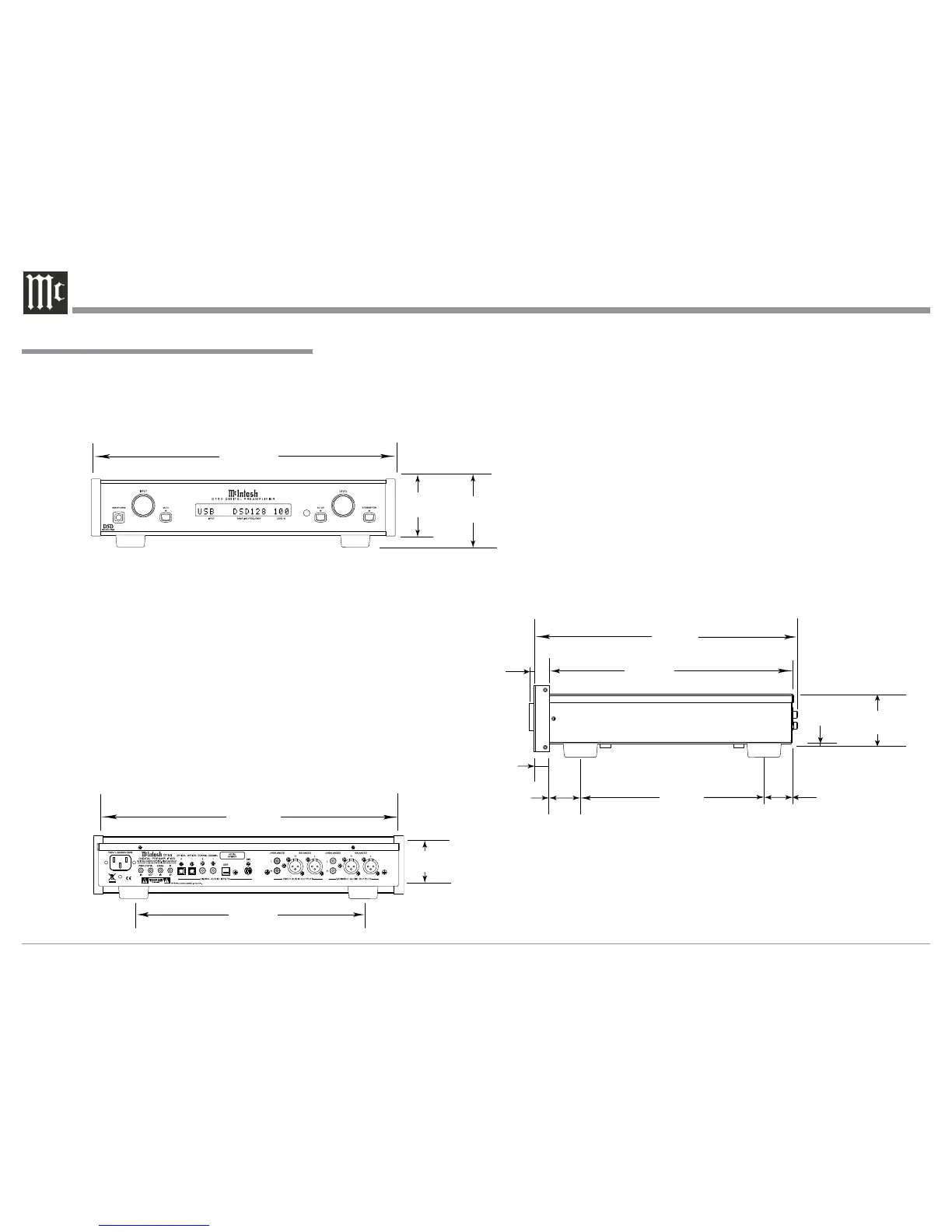

Dimensions

The following dimensions can assist in determining

the best location for your D150. There is additional

information on the next page pertaining to installing

the D150 into cabinets.

Rear View of the D150

Side View of the D150

Front View of the D150

17-

1/2"

44.5cm

2-17/32"

6.4cm

3-9/32"

8.3cm

3-7/8"

9.8cm

17-1/32"

43.3cm

2-11/32"

6.0cm

13-1/4"

33.7cm

13"

33.0cm

12-1/16"

30.6cm

1-1/6"

2.7cm

1-5/8"

4.1cm

29/32

1.8cm

9-1/16"

23.0cm

1-3/8"

3.5cm

2-11/32"

6.0cm
