McIntosh D150 User Manual

8

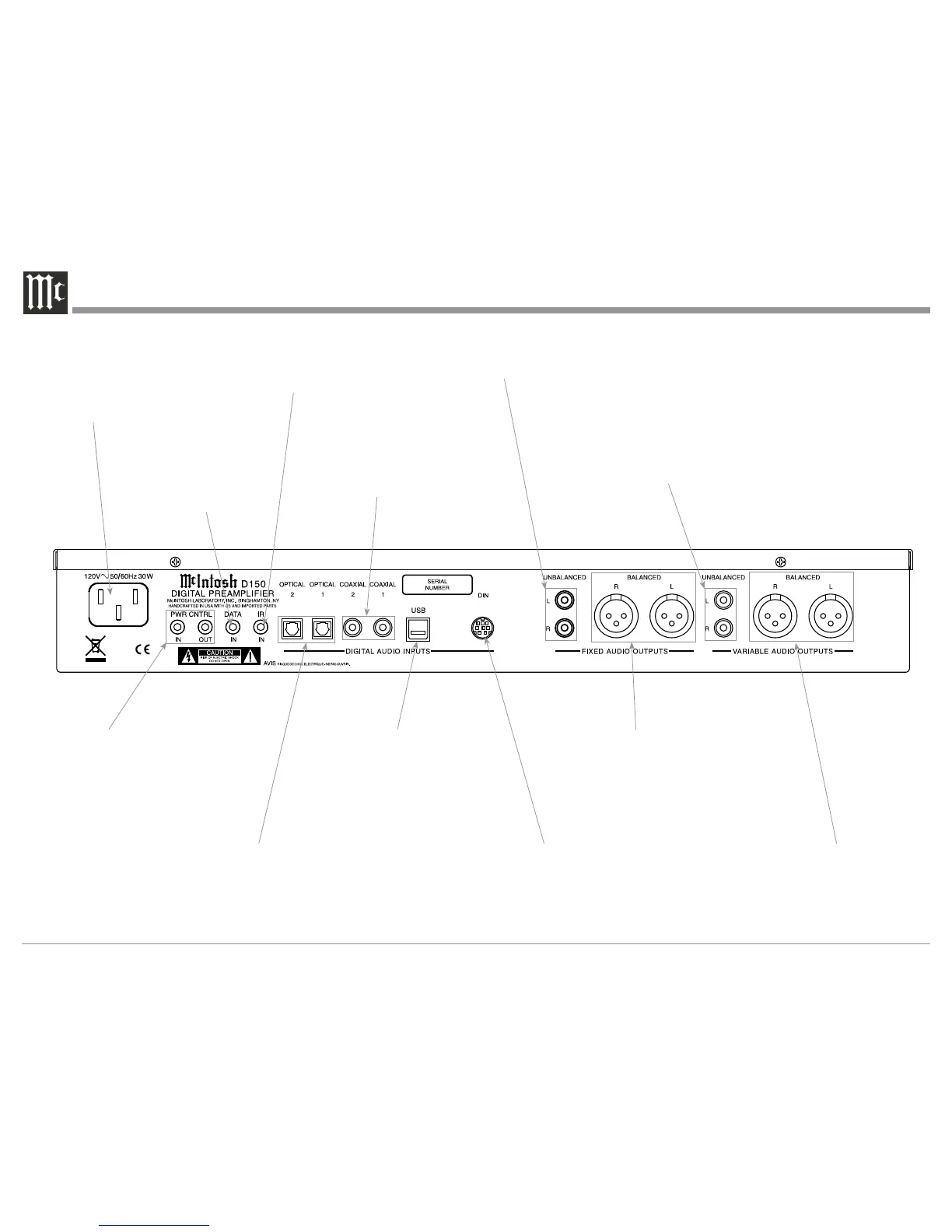

Rear Panel Connections
Connect the D150 power
cord to a live AC outlet.
Refer to information on the
back panel of your D150 to
determine the correct volt-
age for your unit
DIGITAL AUDIO INPUTS COAXIAL
Inputs 2 and 1 for components with a
Digital Audio Coaxial Output
DIGITAL AUDIO INPUTS OPTICAL
INPUTS 2 and 1 for components with
a Digital Audio Optical Output
USB DIGITAL AUDIO INPUT
with control signal for connection
to a computer
IR INput for
signals from a
compatible IR
Room Sensor
POWER CONTROL IN receives
turn-on signals from a McIntosh
component.
POWER CONTROL OUT sends
turn-on signals on to another McIn-
tosh Component.
DATA IN receives
control data from a
McIntosh Preamplifier
or A/V Control Center
FIXED AUDIO OUTPUTS UNBALANCED
analog audio output signals to a Preamplifier
or A/V Control Center
FIXED AUDIO OUTPUTS BALANCED
analog audio output signals to a Preampli-
fier or A/V Control Center
VARIABLE AUDIO OUTPUTS UNBALANCED
analog audio output signals to a Power Amplifier
VARIABLE AUDIO OUTPUTS
BALANCED analog audio out-
put signals to a Power Amplifier
DIN DIGITAL AUDIO INPUT
for streaming high bandwidth
digital signals from SACD/CD
Transport Components
