McIntosh MA5100 User Manual

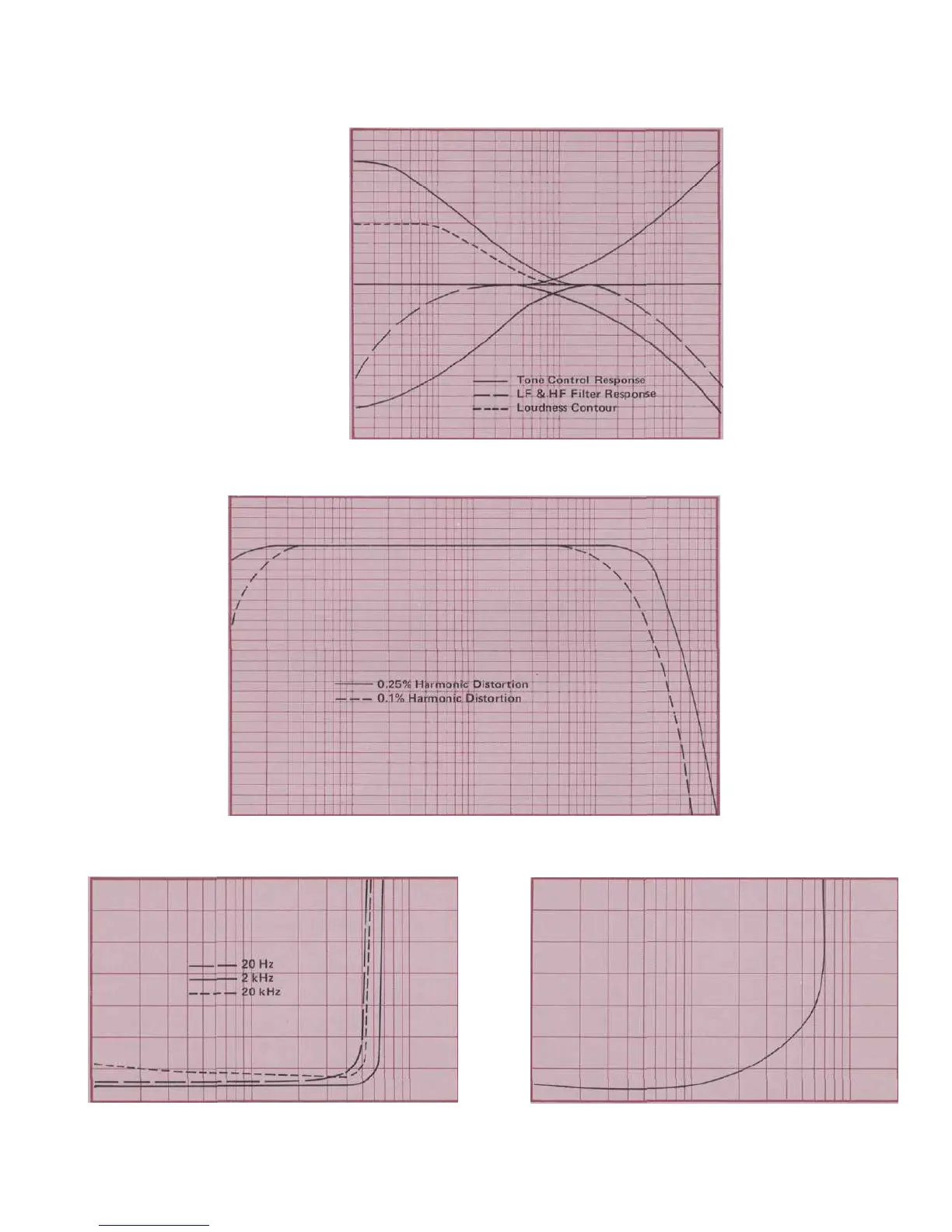

Typical
Performance
Charts
100 1000
FREQUENCY IN HERTZ
10000 20000
POWER VS. FREQUENCY
10 100 1000
FREQUENCY IN HERTZ
10K
100K
HARMONIC DISTORTION VS. FREQUENCY
INTERMODULATION DISTORTION VS.
EQUIVALENT POWER OUTPUT
10
POWER OUTPUT IN WATTS RMS
100
1 10 100
POWER OUTPUT EQUIVALENT WATTS RMS
10
20
20
15
10
5
0
-5
-10
-15
-20
RESPONSE
IN DB
50
50
40
30
20
10
0
POWER
OUTPUT WATTS
RMS
.6
.5
A
.3
.2
.1
0
PERCENT INTERMODULATION
DISTORTION
1
.6
.5
.4
.3
.2
.1
0
PERCENT HARMONIC DISTORTION

McIntosh MA5100 Specifications

General

Frequency Response	20Hz to 20kHz
Input Sensitivity (MM)	2.5 mV
Signal to Noise Ratio (MM)	70 dB
Signal to Noise Ratio (Line)	80dB
Output Impedance	4, 8, 16 ohms
Input Impedance (Line)	250k ohms
Input Impedance (MM)	47k ohms
Total Harmonic Distortion	0.5%
Input Sensitivity (Line)	250 mV
Type	Solid State Integrated Amplifier
Power Output	45 watts per channel
