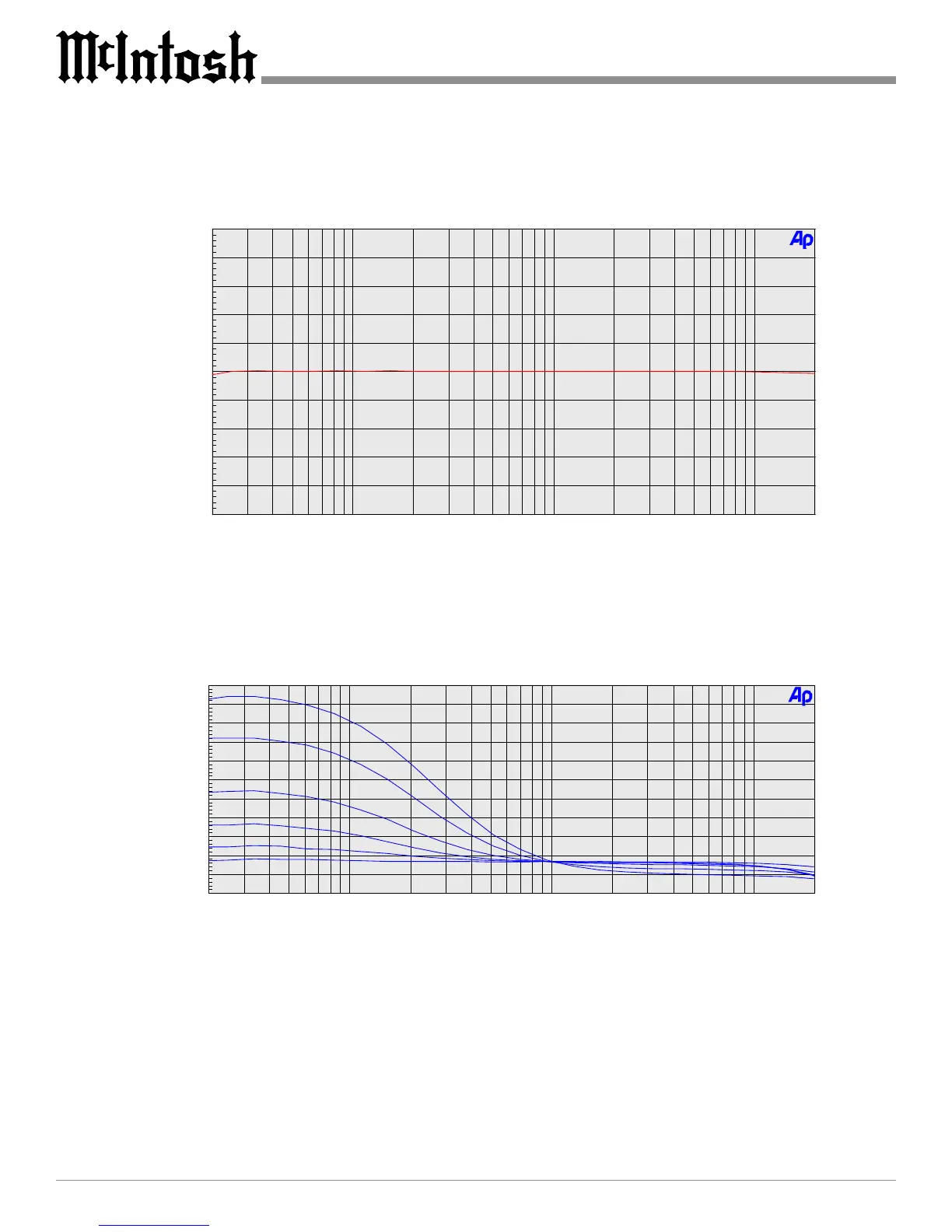

16
Loudness Compensation Range
dB
(Decibel)
Hz (Hertz)
-10
+10
-8
-6
-4
-2
+0
+2
+4
+6
+8
20 20k50 100 200 500 1k 2k 5k 10k
dB
(Decibel)
Frequency Response
Hz (Hertz)
Note: The Loudness Compensation Range is a combination
of the Loudness Circuitry and the Volume Control’s
rotational position. When the Loudness Circuit is
active, the first 50% rotation of the Volume Control
achieves maximum loudness compensation, as shown
on the upper curve. When the Volume control is rotated
beyond the 50% point, the loudness compensation is
gradually reduced, as shown by the remaining curves.
-1
+10
+0
+1
+2
+3
+4
+5
+6
+7
+8
+9
20 20k50 100 200 500 1k 2k 5k 10k
