6
Installation
The MA6500 can be placed upright on a table or shelf,
standing on its four feet. It also can be custom installed in a
piece of furniture or cabinet of your choice. The four feet
may be removed from the bottom of the MA6500 when it is
custom installed as outlined below. The four feet together
with the mounting screws should be retained for possible
future use if the MA6500 is removed from the custom in-

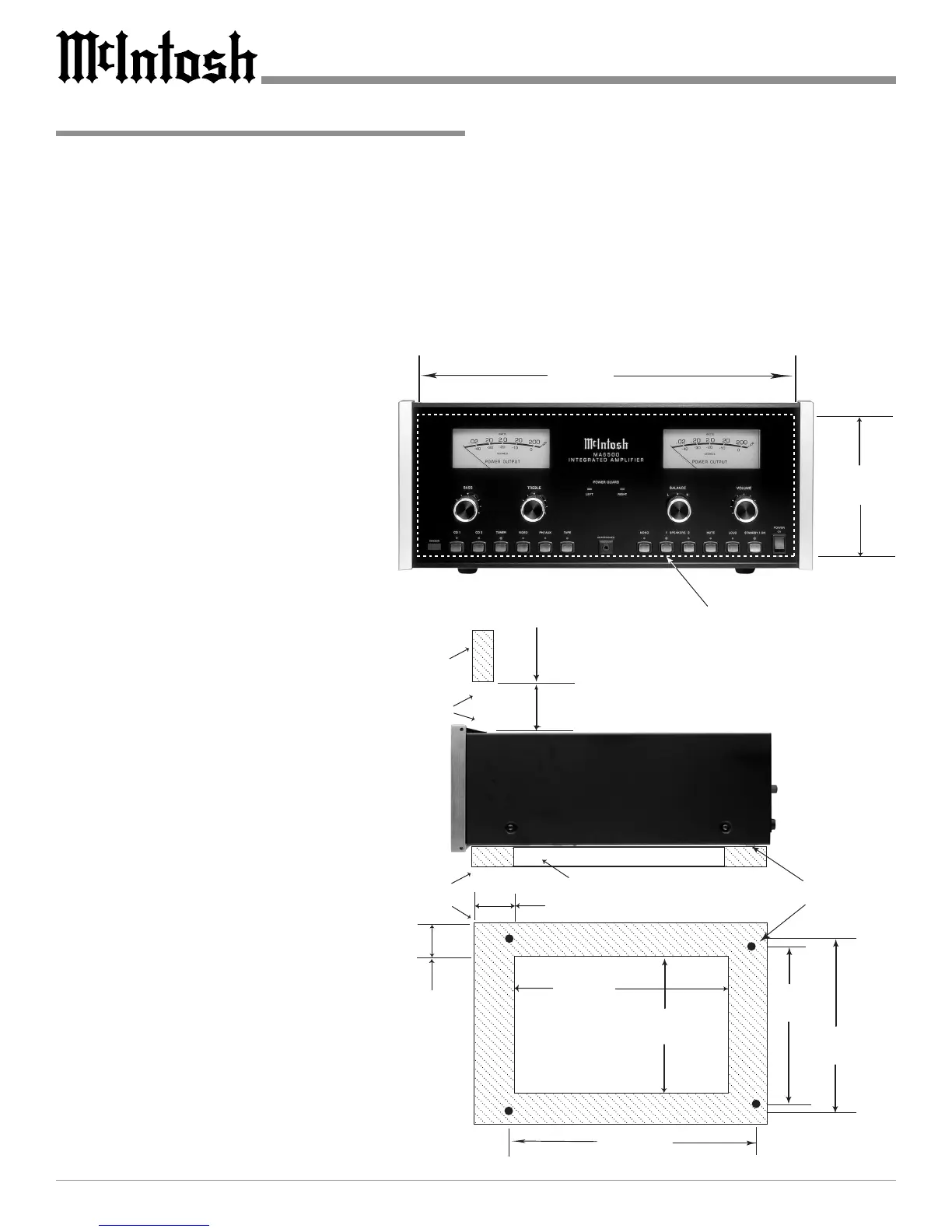

stallation and used free standing. The required panel cutout,
ventilation cutout and
unit dimensions are
shown.
Always provide
adequate ventilation
for your MA6500.
Cool operation en-
sures the longest pos-
sible operating life
for any electronic in-
strument. Do not in-
stall the MA6500 di-
rectly above a heat
generating compo-
nent such as a high
powered amplifier. If
all the components
are installed in a
single cabinet, a quiet
running ventilation
fan can be a definite
asset in maintaining
all the system compo-
nents at the coolest
possible operating
temperature.
A custom cabinet
installation should
provide the following
minimum spacing
dimensions for cool
operation. Allow at
least 6 inches
(15.24cm) above the
top, 2 inches
(3.81cm) below the
bottom and 1 inch
(2.54cm) on each
side of the amplifier,
Installation
6 -5/8"
16.83cm
17-1/16"
43.34cm
Cutout Opening for Custom Mounting
MA6500 Front Panel
Custom Cabinet Cutout
1"
2.54cm
Cutout
Opening
for
Ventilation
Cutout Opening for Ventilation
Support
Shelf
Cabinet
Front
Panel
Chassis
Spacers
MA6500 Side View
in Custom Cabinet
MA6500 Bottom View
in Custom Cabinet
7"
17.78cm
15"
38.1cm
15"
38.1cm
13-1/8"
33.34cm
3-1/2"
8.89cm
6"
15.24cm
Opening
for Ventilation
15-1/2"
39.37cm
so that airflow is not obstructed. Allow 20 inches (50.8cm)
depth behind the front panel. Allow 1 inch (2.54cm) in front
of the mounting panel for knob clearance. Be sure to cut out
a ventilation hole in the mounting shelf according to the di-
mensions in the drawing.

Other manuals for McIntosh MA6500

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the McIntosh MA6500 and is the answer not in the manual?

McIntosh MA6500 Specifications

Power Output IconPower Output
RMS Power Output at 8 ohms120 W
RMS Power Output at 4 ohms200 W
RMS Power Output at 2 ohms250 W
Distortion and Noise IconDistortion and Noise
Total Harmonic Distortion0.005%
Intermodulation Distortion0.005%
S/N Ratio (A-Weighted) Power amp110 dB below rated output
Input and Output IconInput and Output
Maximum Voltage Output8 V from 20Hz to 20kHz
Input Sensitivity High level250 mV for 2.5 V rated output
Maximum Input Signal High level10 V
Impedance and Gain IconImpedance and Gain
Output Load Impedance2, 4, or 8 ohms
Input Impedance High level22k ohms
Voltage Gain High level to tape0 dB
Weight and Dimensions IconWeight and Dimensions
Dimensions (h x w x d)13.7 x 44.5 x 46 cm
Weight net18.6 kg
Weight shipping27.3 kg
