Packing Instructions
Packing Instructions

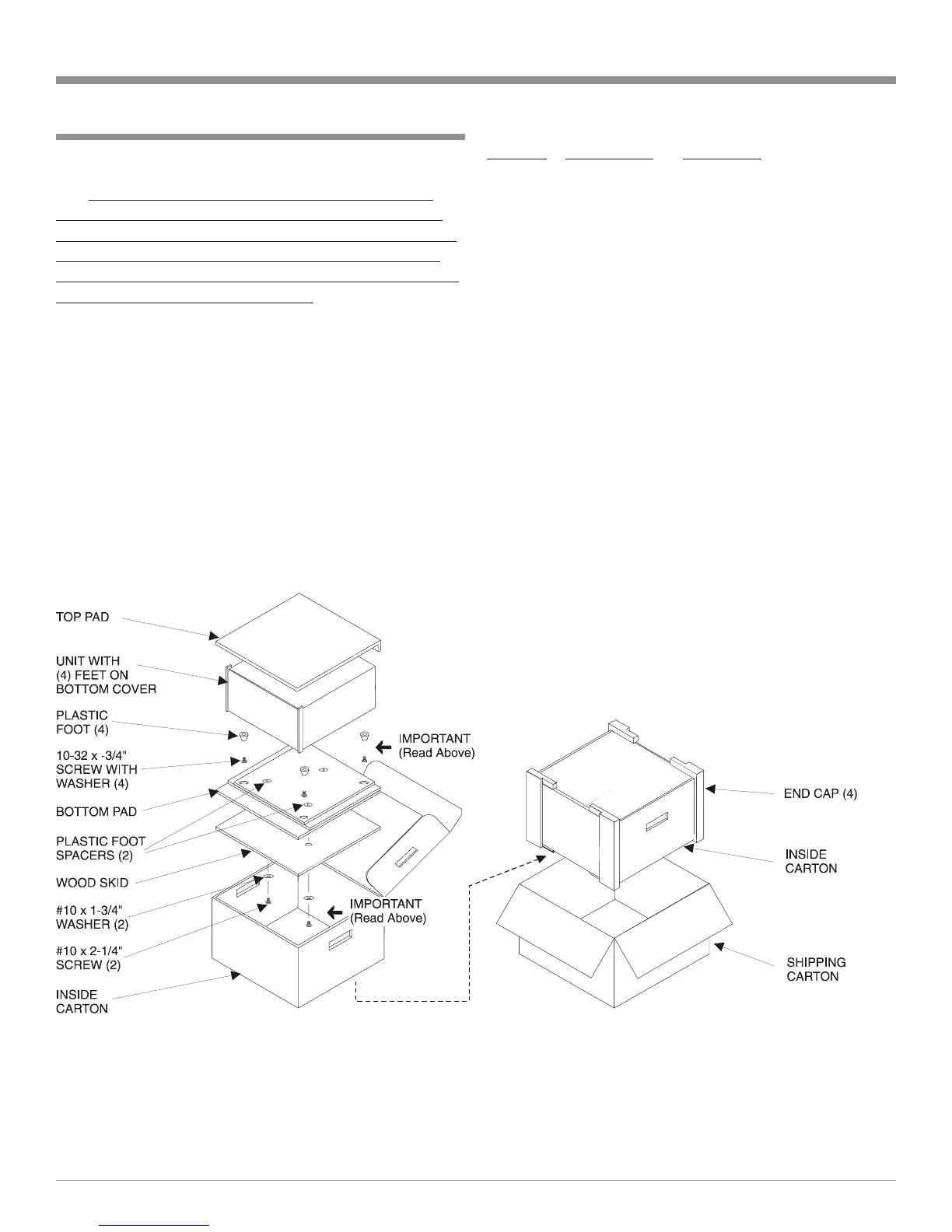

In the event it is necessary to repack the equipment for ship-
ment, the equipment must be packed exactly as shown be-
low.
It is very important that the four plastic feet are at-
tached to the bottom of the equipment. Three #10 x 2-1/4
inch screws and washers must be used to fasten the unit se-
curely to the bottom pad and wood skid. This will ensure
the proper equipment location on the bottom pad. Failure to
do this will result in shipping damage.
Use the original shipping carton and interior parts only if
they are all in good serviceable condition. If a shipping car-
ton or any of the interior part(s) are needed, please call or
write Customer Service Department of McIntosh Labora-
tory. Please see the Part List for the correct part numbers.
Quantity Part Number Description
1 033888 Shipping carton only
2 033887 End cap (Foam pad)
1 033697 Inside carton only
1 033725 Top Pad
1 034008 Bottom pad
2 017218 Plastic foot (spacer)
1 033699 Wood skid
2 101204 #10 x 2-1/4 inch Wood screw
2 104033 #10 x 1-3/4 inch Flat washer
4 017218 Plastic foot
4 100159 #10-32 x 3/4 inch Machine
screw
4 104083 #10 x 7/16 inch Flat washer
1 048572 Sipping Carton Complete

McIntosh MA6500 Specifications

Power Output

RMS Power Output at 8 ohms	120 W
RMS Power Output at 4 ohms	200 W
RMS Power Output at 2 ohms	250 W

Distortion and Noise

Total Harmonic Distortion	0.005%
Intermodulation Distortion	0.005%
S/N Ratio (A-Weighted) Power amp	110 dB below rated output

Input and Output

Maximum Voltage Output	8 V from 20Hz to 20kHz
Input Sensitivity High level	250 mV for 2.5 V rated output
Maximum Input Signal High level	10 V

Impedance and Gain

Output Load Impedance	2, 4, or 8 ohms
Input Impedance High level	22k ohms
Voltage Gain High level to tape	0 dB

Weight and Dimensions

Dimensions (h x w x d)	13.7 x 44.5 x 46 cm
Weight net	18.6 kg
Weight shipping	27.3 kg
