19
General Specications
Power Requirements
Field AC Voltage conversion of the MA8950 is not
possible. The MA8950 is factory configured for one
of the following AC Voltages:
100 Volts, 50/60Hz at 5.2 amps
110 Volts, 50/60Hz at 4.4 amps
120 Volts, 50/60Hz at 4.4 amps
220 Volts, 50/60Hz at 2.45 amps
230 Volts, 50/60Hz at 2.35 amps
240 Volts, 50/60Hz at 2.25 amps
Standby: Less than 0.25 watt
Note: Refer to the rear panel of the MA8950 for the cor-
rect voltage.
Overall Dimensions
Width is 17-1/2 inches (44.45cm)
Height is 7-5/8 inches (19.37cm) including feet
Depth is 18-3/4 inches (47.63cm) including the Front
Panel and Knobs
Weight
75 pounds (34.1 kg) net, 93 pounds (42.3 kg) in ship-
ping carton
Shipping Carton Dimensions
Width is 29-1/2 inches (74.93cm)
Depth is 29 inches (73.66cm)
Height is 17 inches (43.18cm)

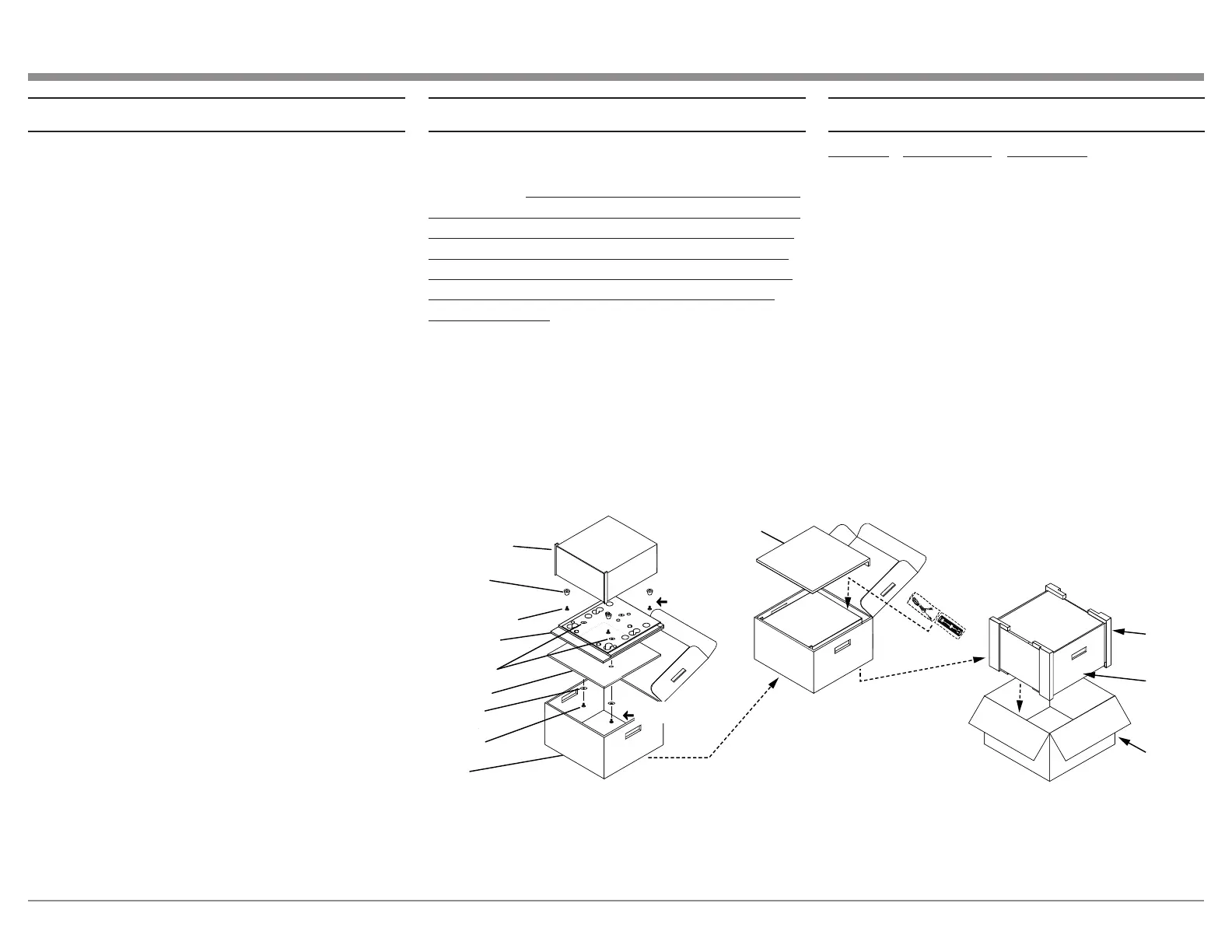

MA8950 Packing Material ListPacking Instructions
In the event it is necessary to repack the equipment for
shipment, the equipment must be packed exactly as
shown below. It is very important that the four plastic
feet are attached to the bottom of the equipment. Two
#10 x 2-1/2 inch screws and washers must be used to
fasten the unit securely to the bottom pad and wood
skid. This will ensure the proper equipment location
on the bottom pad. Failure to do this will result in
shipping damage.
Use the original shipping carton and interior parts
only if they are all in good serviceable condition. If
a shipping carton or any of the interior part(s) are
needed, please call or write Customer Service Depart-
ment of McIntosh Laboratory. Refer to page 2. Please
see the Part List for the correct part numbers.
Quantity Part Number Description
1 033888 Shipping carton
4 033887 End Cap
1 033697 Inner carton
1 033725 Top pad
1 034576 Bottom pad
1 034480 Wood skid
2 017218 Plastic foot (spacer)
2 401204 #10 x 2-1/2 inch
wood screw
2 404033 #10 flat washer 1-3/4 inch
4 017937 Plastic foot
4 400159 #10-32 x 3/4 machine screw
4 404080 #10 flat washer
BOTTOM PAD
PLASTIC FOOT
SPACER (4)
#10 X 2-1/2”
SCREW (2)
PLASTIC FOOT
SPACERS (2)
#10-32 X 3/4
MACHINE SCREW
WITH WASHER (4)
#10 X 1 3/4
FLAT WASHER
SHIPPING
CARTON
END C
INNER
CARTON
TOP PAD
INNER
CARTON
WOOD SKID
UNIT WITH
(4) FEET ON
BOTTOM COVER
IMPORTANT
(Read Above)
IMPORTANT
(Read Above)
