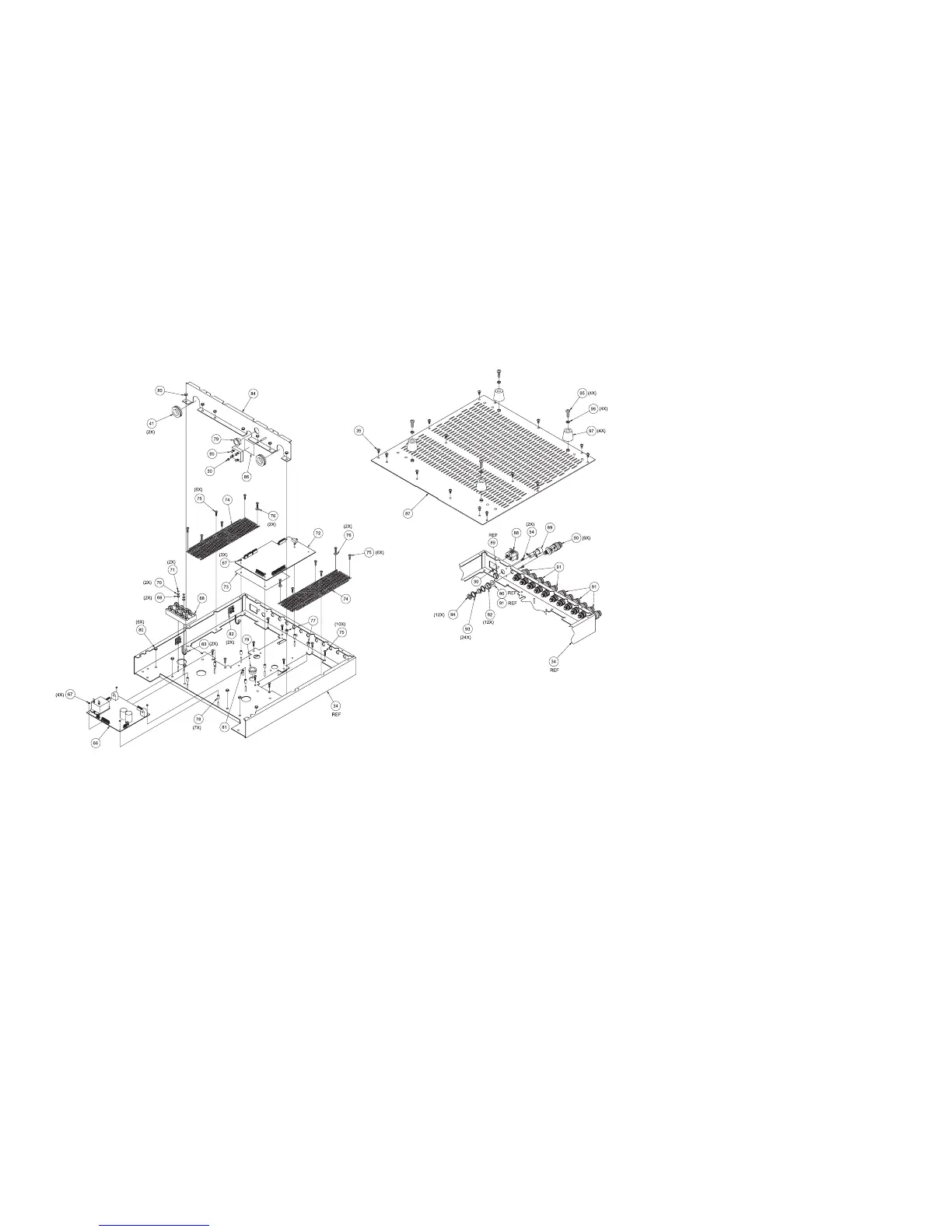

EXPLODED VIEW con’t and PARTS LIST
13 100276 SCREW MACH SEMS 6-32 X 5/16 PH PN
14 101074 SCREW TAPPING 4-40 X 1/4
15 005289 SUBPANEL
16 017913 LOGO BACKLIGHT
17 017901 LOGO PUSHBUTTON BACKLIGHT
18 049799 ASSY INDICATOR PCB
19 017919 LOCKING PCB SUPPORT 7/8”
20 017918 LOCKING PCB SUPPORT 5/8”
21 146243 SWITCH POWER
22 021159 BUSHING SWITCH
23 104014 WASHER INT STAR 3/8 X .507 X .002
24 100121 SCREW MACH 4-40 X 1/4 PH PN BLK
25 124085 METER
26 017881 BACKLIGHT METER
27 005299 METER PLATE
28 049809 ASSY METER LED PCB
29 021053 SPACER #6 X 3/16 STEEL
30 102003 NUT MACH 6-32 W/LOCK
31 005291 DUST COVER
32 126917 DECAL TOP COVER
33 100200 SCREW MACH 10-32 X 1/2 PH TRUSS HD
34 005290 CHASSIS
35 101078 SCREW TAP 8-32 X 5/16 PH PN BLK
36 101172 SCREW TC 6-32 X 1/4 PH FL U/C
37 049817 POTTED TRANSFORMER OUTPUT
38 049818 POTTED TRANSFORMER POWER
39 126895 DECAL OUTPUT TRANSFORMER
40 126896 DECAL POWER TRANSFORMER
41 078025 GROMMET 3/4”
42 018614 HEATSINK
43 084156 ISOSTRATE POWER SUPPLY
44 112087 SPACER PCB 1/4”
45 114118 CLIP TRANSISTOR 218
46 114119 CLIP TRANSISTOR 214
47 049826 ASSY HEATSINK PCB
48 101059 SCREW SM 6 X 5/8 PH PN TYPE A
49 004928 HEATSINK COVER LEFT
50 004958 HEATSINK COVER RIGHT
51 101109 ST 6-32 X 5/16”
52 004919 SUBREAR PANEL
53 101054 SCREW TAPTITE 6-32 X 1/4 PH PN BLK
54 100250 SCREW MACH SEMS 8-32 X 1/4
55 049216 ASSY CAPACITOR PCB
56 100188 SCREW, MACH SEMS 10-32 X 3/8
57 004922 COVER CAPACITOR
58 005288 REAR PANEL
59 101114 SCREW SM 4-24 X 1/2 PH PN TYPE A
60 104095 WASHER INT STAR #4
61 049222 ASSY INPUT PCB
62 066480 CAP ELECT 5400uF 75VDC
63 003855 CLAMP CAPACITOR
64 100118 SCREW MACH 6-32 X 1/2 PH PN
65 102045 NUT KEP 6-32 SPECIAL
66 049798 ASSY METER PCB
67 102001 NUT KEP 4-40 CADMIUM PLATE
68 074091 TERMINAL BLOCK AC
69 104001 WASHER FLAT STEEL 4 X 9/32 X .025
70 104004 WASHER LOCK 5 X .255 INT STAR
71 102022 NUT MACH 4-40 X 3/16 X 1/16
72 049219 ASSY DRIVER PCB
73 017770 SHIELD PCB
74 004954 HEATSINK VENT
75 101176 SCREW TC6-32 X 1/2 PH PN TYPE F
76 104005 WASHER FLAT STEEL 6 X 3/8 X .032
77 017760 PLASTIC CUPPED PCB SUPPORT 3/8”
78 112038 SPACER STEEL 4 X 3/8 L NCKL PLT
79 078034 GROMMET
80 102006 NUT MACH 10-32 W/LOCK
81 102005 NUT MACH 8-32 W/LOCK
82 017518 HOLDER CABLE TIE
83 094255 CABLE TIE PANDUIT PLT1M-M
84 004930 BRACKET CHASSIS SUPPORT
85 070139 DIODE BRIDGE RECTIFIER
86 084135 PAD THERMAL
87 005301 BOTTOM COVER
88 117487 RECEPTACLE AC LINE
89 178122 HOLDER FUSE SOCKET UL/CSA
90 117740 POST BINDING RED
91 117741 POST BINDING BLK
92 102052 NUT GOLD SUPPLIED W/117758
93 104162 WASHER LOCK INT TOOTH
94 102015 NUT HEX M9 X .75 GOLD PLATED
95 100159 SCREW MACH 10-32 X 3/4 PH PN
96 104080 WASHER FLAT #10 CLEAR ZINC
97 017218 FOOT PLASTIC BLACK
1 016485 CENTER GLASS PANEL
2 016487 GLASS PANEL W/HOLE
3 049321 ASSY KNOB
4 104017 WASHER FELT BLK 3/4 X 1/4 X 1/16
5 018709 END CAP
6 018710 TOP/BOTTOM END CAP
7 018711 CENTER EXTRUSION
8 094024 TAPE FOAM 1/16 X 1/4
9 100342 SCREW FILLISTER HEAD
10 092426 FILTER COLOR METER
11 005283 REAR PANEL PLATE
12 005312 PLATE GAP
Part
No.
Description
Ref
No.
To Next Page
