McIntosh MT10 User Manual

17
Power Selection
Rotate the POWER Switch to select the Turntable
operation mode desired. Refer to figure 50.
Power Off - The Front Panel and
Turntable Platter lights
are turned Off. There
is no Turntable Platter
rotation.
Standby - The Front Panel and
Turntable Platter will il-
luminate when the McIntosh Preamplif-
er or A/V Control Center is turned On.
There is no Turntable Platter rotation.
Note: There must be a power control
connection between the MT10
and the McIntosh Preamplifier
or A/V Control Center, in order
for the Standby Mode to func-
tion.
On - The Front Panel and Turntable Platter
lights are turned On. The Turntable
Platter will rotate at the selected speed.
Speed Selection
Rotate the SPEED Switch to select the playback speed
(33-1/3 rpm, 45 rpm or 78 rpm) of the
phonograph record to be played. Refer
to figure 51.
The Front Panel Platter Speed
Meter indicates the actual speed of the
Turntable Platter during playback of
the recording. Refer to figure 52.
Tone Arm Lift
The McIntosh MT10 Precision Turntable has a built-in
manual Tone Arm Lift Mechanism for safe placement
and removal of the cartridge stylus on the phonograph
record. Perform the following steps:
1. Push on the top part of the Tone Arm Lift Lever
towards the rear of the turntable. Refer to figure 53.
2. Release the Tone Arm from the Tone Arm Holder.
Refer to figure 54.
3. Position the Tone Arm over the desired spot of the
Phonograph record.
4. Pull on the top part of the Tone Arm Lift Lever to-
wards the front of the turntable to begin playback.
How to Operate the Turntable
How to Operate the Turntable

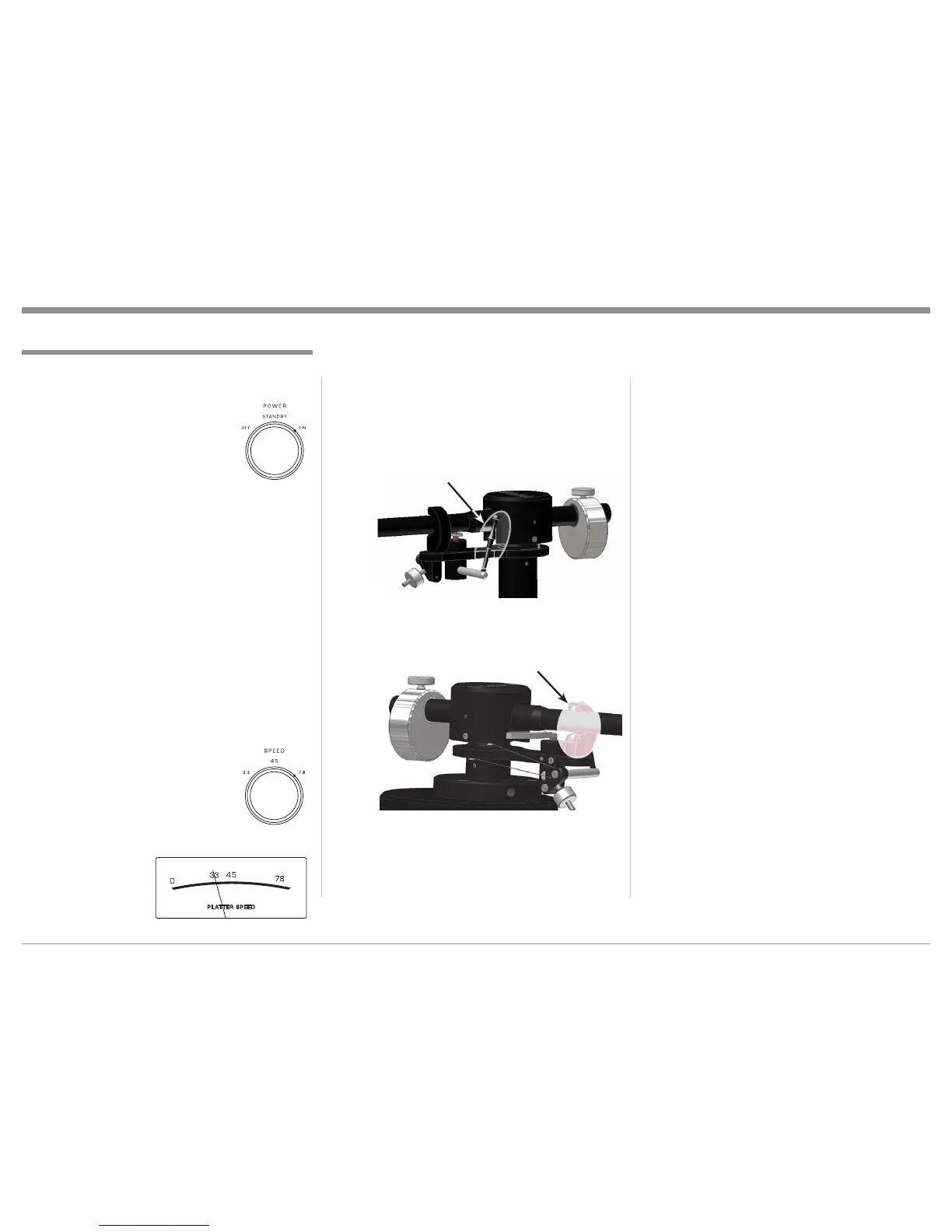

Figure 50
Figure 51
Figure 52
Figure 54
Tone Arm Holder
Figure 53
Tone Arm Lift Lever

McIntosh MT10 Specifications

General

Type	-
Product color	Black, Green, Silver
Nominal speeds	33 1/3, 45, 78 RPM
Signal-to-Noise Ratio (SNR)	80 dB
Frequency range	20 - 50000 Hz

Weight and Dimensions

Weight	19000 g
Product dimensions (WxHxD)	444.5 x 223.8 x 533.4 mm
