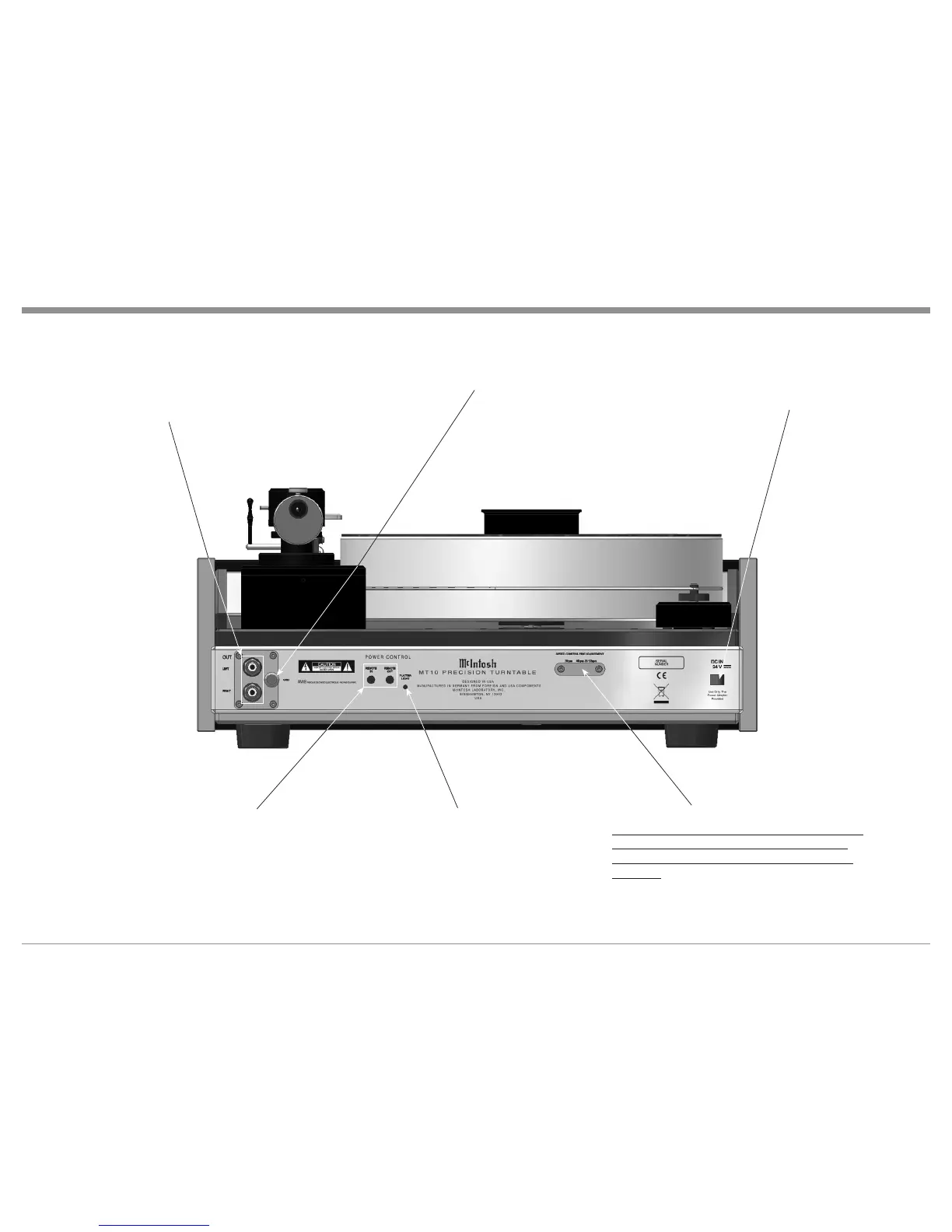

Rear Panel Connections and Adjustments
POWER CONTROL REMOTE IN receives
turn-on signals from a McIntosh component
and switches the Front Panel Illumination
On/Off.
POWER CONTROL REMOTE OUT sends
turn-on signals on to another McIntosh
Component
Connect to the AC / DC Adapter supplied
with the MT10 Turntable. Then connect
the AC / DC Adapter to a live AC outlet.
Refer to information on the Power Supply
to determine the correct voltage
AUDIO OUTPUTS connect to MC
(Moving Coil) Inputs of the Pream-
plifier or A/V Control Center when
the McIntosh MCC10 Cartridge is
installed. Contact your McIntosh
Dealer for additional assistance
Fine speed adjustments for 33-1/3, 45 and 78 rpm.
These Adjustments require special test records and
precision measurement equipment to accurately
set the speeds. Contact your McIntosh Dealer for
assistance
PLATTER LIGHT
Fine adjustment of
the Turntable Platter
Illumination level
GND (Ground) connects to
GND (Ground) connection
on the Preamplifier or A/V
Control Center

McIntosh MT10 Specifications

General

Type	-
Product color	Black, Green, Silver
Nominal speeds	33 1/3, 45, 78 RPM
Signal-to-Noise Ratio (SNR)	80 dB
Frequency range	20 - 50000 Hz

Weight and Dimensions

Weight	19000 g
Product dimensions (WxHxD)	444.5 x 223.8 x 533.4 mm
