Unpacking the Turntable
To protect the fine finish of the MT5 Precision Turntable
during the assembly and adjustment process, it is
advisable to prepare a suitable clean working area with a
soft, clean fabric, such as a bed linen or blanket.
It is recommended that the Professionals at your
McIntosh Dealer, who are skilled in all aspects of
installation and operation, unpack, assemble, adjust and
install the MT5 Precision Turntable.
CAUTION: To prevent possible damage to the turntable
platter bearing, do not move the MT5 Precision
Turntable after the Inner/Outer Platters are installed.
1. Referring to the illustration on the right, open the
shipping carton and carefully remove the following
items from the carton and place them in the previ
-
ously prepared working area:
A. Owner’s Manual Pack with Tone Arm/
Cartridge Alignment Gauge
B. Record Mat
C. Dust Cover
D. Inner Platter
E. Tonearm Counter Weight
F. Record Clamp
G. AC/DC Adapter
H. Center Spindle
I. Tu r ntable
J. Outer Platter
K. Accessories Pack containing the following:
1. Pair of gloves 2. Belt
3. Grounding Cable 4. Bubble Level
5. Bearing Oil 6. AC Adapter Plugs
7. Cartridge Mounting Screws
8. Screw Driver and Allen Wenches
2. Proceed to Assembly of the Turntable starting on the
next page.
CAUTION: To prevent possible damage to the Cartridge
Stylus, DO NOT remove the Stylus Guard at this
time.

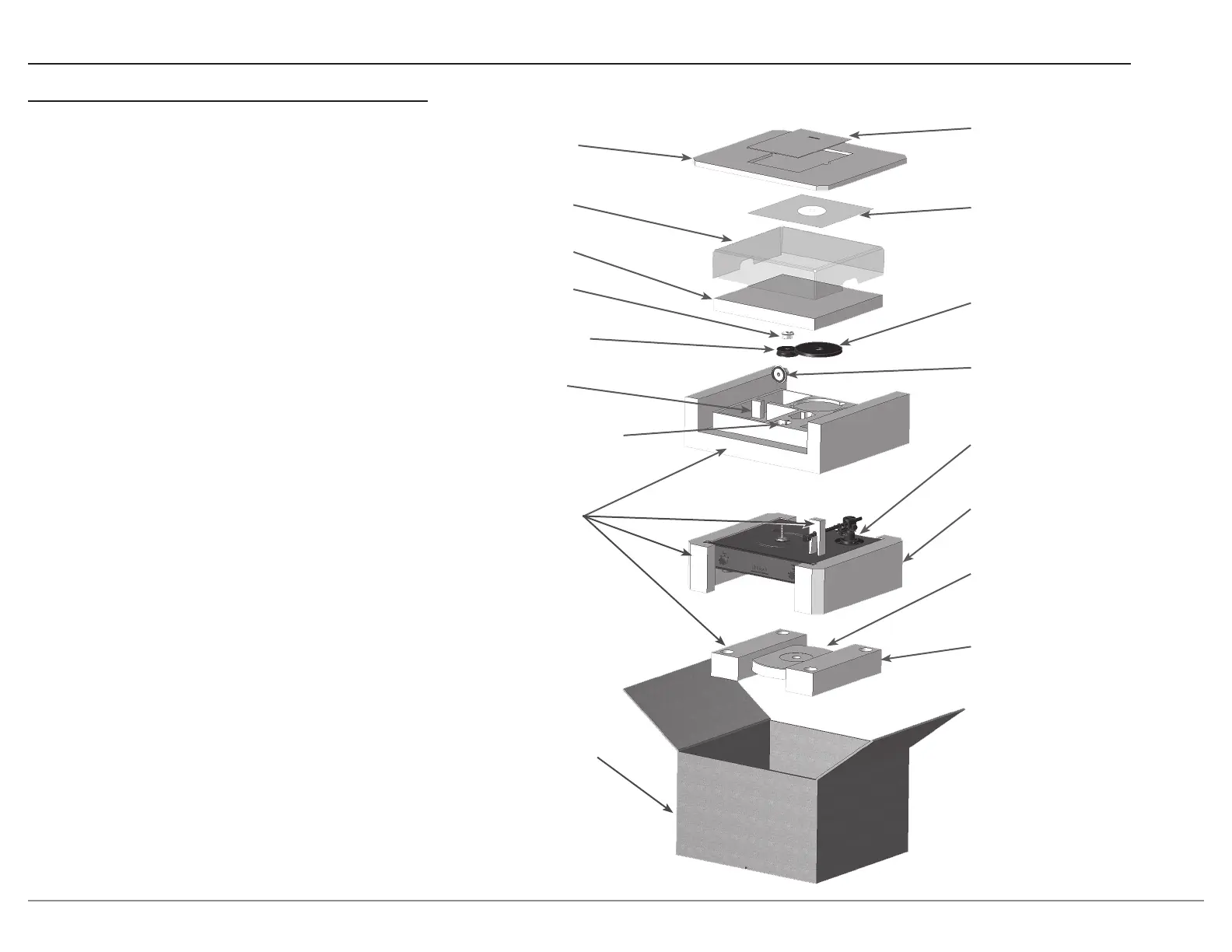

Outer Platter
Owner’s Manual Packet
with Tone Arm/Cartridge
Alignment Gauge
Dust Cover
Inner Platter
Tur nt able
Center Spindle
Tone Ar m
Counter Weight
Record Clamp
Accessory Pack
location
AC Adapter location
Foam Packing
Material
Foam Packing
Material
Foam Packing
Material
Foam Packing
Material
Foam Packing
Material
Shipping Carton
Record Mat
