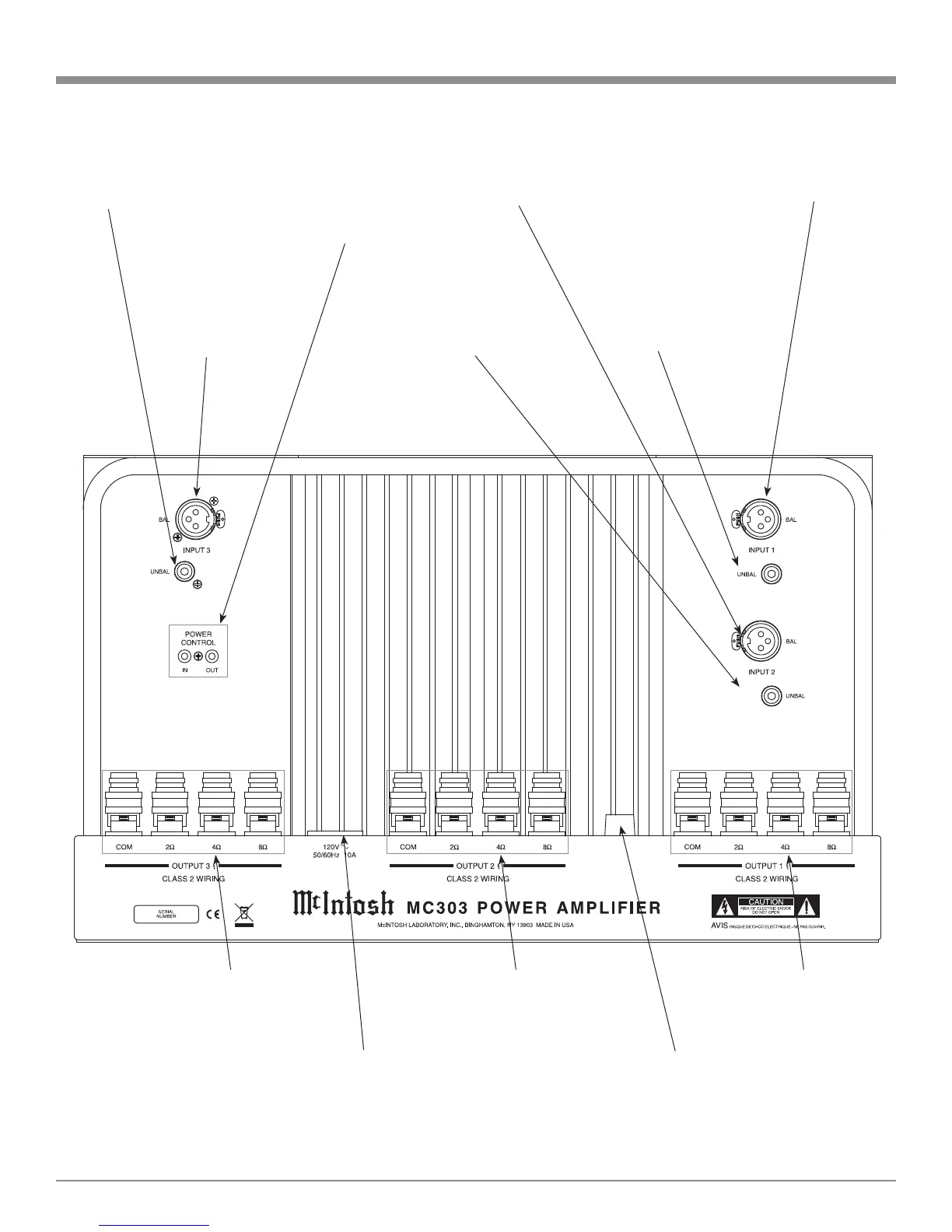

Rear Panel Connections and Switch
Connect the MC303
power cord to a live AC
outlet. Refer to the rear
panel to determine the
correct voltage
POWER CONTROL IN
receives turn On/Off signal
from a McIntosh component
and the POWER CONTROL
OUT sends a turn On/Off
signal to the next McIntosh
Component
UNBALANCED INPUT 3
for an audio cable from an
A/V Control Center or Pre-
amplifier audio output
BALANCED INPUT 3
for an audio cable from
an A/V Control Center
or Preamplifier audio
output
OUTPUT 3 Connections
for 2 ohm, 4 ohm or 8 ohm
Loudspeaker
Main Fuse holder, refer to information on
the back panel of your MC303 to determine
the correct fuse size and rating. When used
in the USA and Canada refer to General
Information note number 8 on page 4.
OUTPUT 2 Connections
for 2 ohm, 4 ohm or 8 ohm
Loudspeaker
OUTPUT 1 Connections
for 2 ohm, 4 ohm or 8 ohm
Loudspeaker
UNBALANCED INPUT 2
for an audio cable from an
A/V Control Center or Pre-
amplifier audio output
BALANCED INPUT 2
for an audio cable from
an A/V Control Center
or Preamplifier audio
output
UNBALANCED INPUT 1
for an audio cable from an
A/V Control Center or Pre-
amplifier audio output
BALANCED INPUT 1
for an audio cable from
an A/V Control Center
or Preamplifier audio
output
