Product Manual AGR-3 AGR 070A through 100A
35
Remote Evaporator, AGR-AM

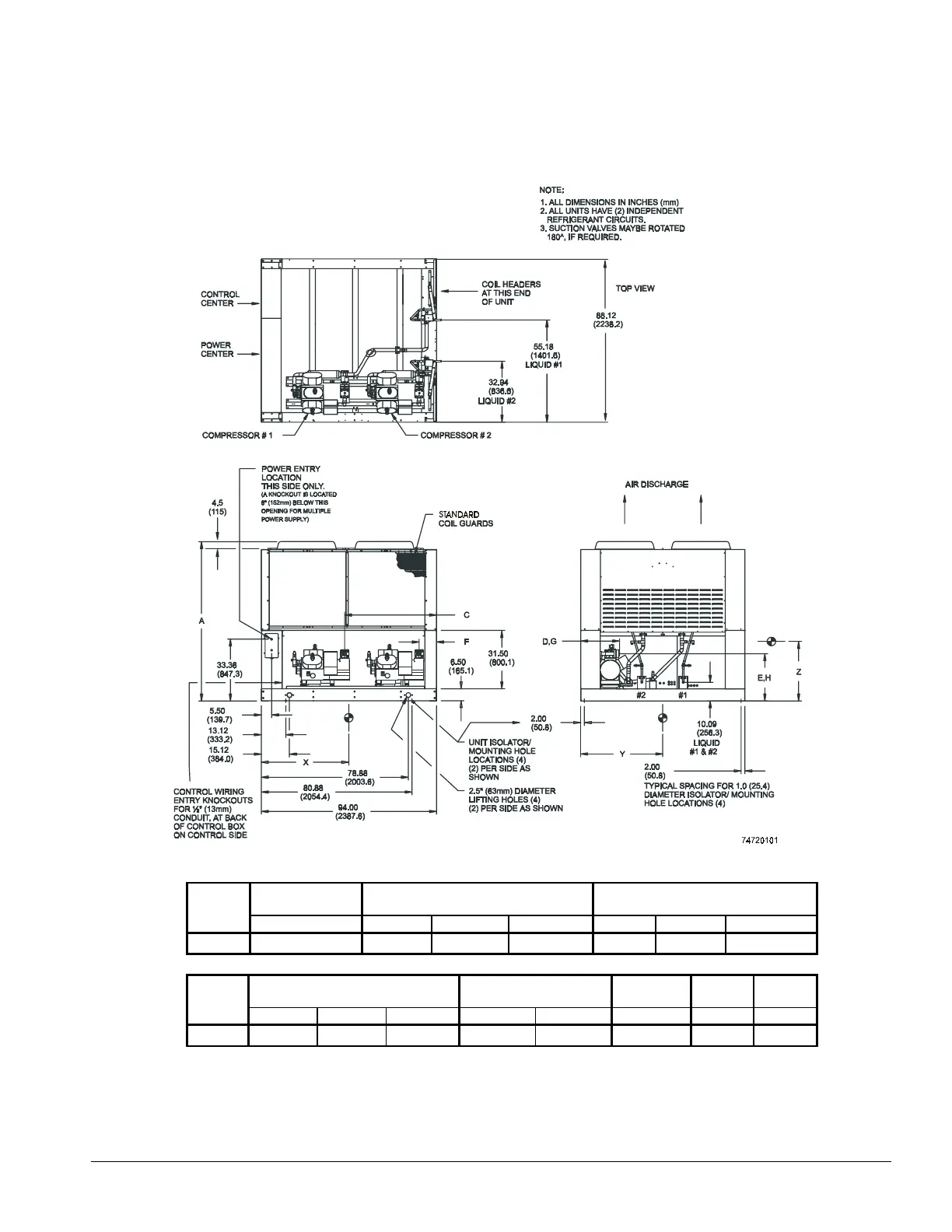

Figure 14, AGR 070AM
COMPRESSOR # 1 (SUCTION #1) COMPRESSOR # 2 (SUCTION #2)
inch (mm) inch (mm)
AGR
MODEL
NUMBER
ACDEFGH
070AM 96.2 (1444) 49.34 (1253) 20.88 (597) 23.52 (597) 9.34 (237) 20.88 (597) 25.52 (648)
CENTER OF GRAVITY UNIT WEIGHTS ADD'L FOR SUCTION LIQUID
inch (mm) lb (kgs) COPPER FIN CONN. CONN.
AGR
MODEL
NUMBER
X Y Z OPERATING SHIPPING lb (kgs) in. in
070AM 44.0 (1118) 37.5 (953) 43.0 (1092) 4090 (1855) 3980 (1805) 830 (375) 2 1/8 1 1/8
