AGR 070A through 100A Product Manual AGR-3

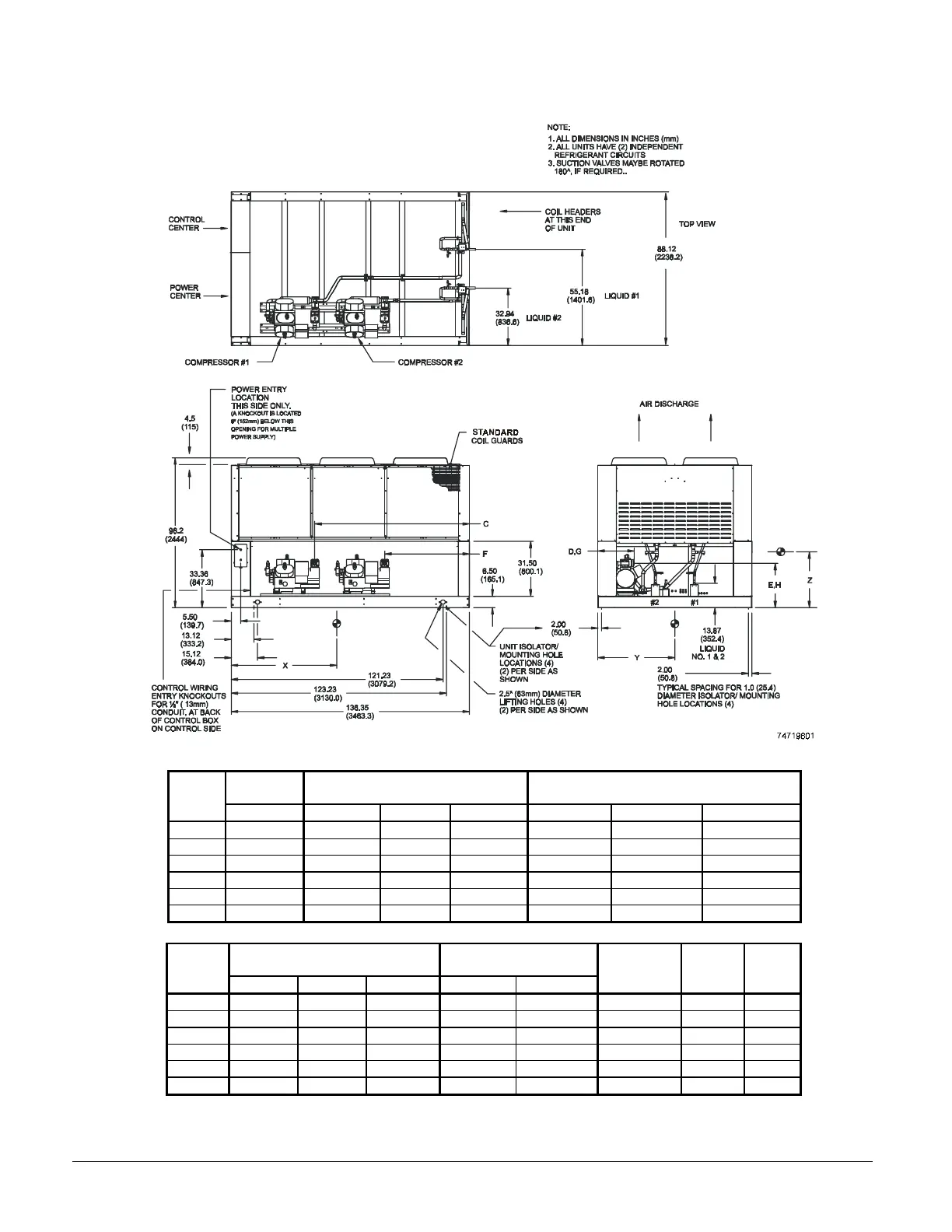

Figure 15, AGR 075AM - AGR 100AM
COMPRESSOR # 1 (SUCTION #1) COMPRESSOR # 2 (SUCTION #2)
inch (mm) inch (mm)
AGR
MODEL
NUMBER
ACDE F G H
075AM 96.2 (2444) 88.5 (2248) 20.9 (531) 25.5 (648) 48.5 (1232) 20.9 (531) 25.5 (648)
080AM 96.2 (2444) 88.5 (2248) 20.9 (531) 25.5 (648) 49.0 (1245) 23.9 (608) 27.8 (707)
085AM 96.2 (2444) 86.0 (2184) 23.9 (608) 27.8 (707) 49.0 (1245) 23.9 (608) 27.8 (707)
090AM 96.2 (2444) 86.0 (2184) 23.9 (608) 27.8 (707) 49.0 (1245) 23.9 (608) 27.8 (707)
095AM 96.2 (2444) 86.0 (2184) 23.9 (608) 27.8 (707) 49.0 (1245) 23.9 (608) 27.8 (707)
100AM 96.2 (2444) 86.0 (2184) 23.9 (608) 27.8 (707) 49.0 (1245) 23.9 (608) 27.8 (707)
CENTER OF GRAVITY UNIT WEIGHTS
inch (mm) lb (kgs)
AGR
MODEL
NUMBER
X Y Z OPERATING SHIPPING
ADD'L FOR
COPPER FIN
lb (kgs)
SUCTION
CONN.
in
LIQUID
CONN.
in
075AM 59.8 (1519) 37.5 (953) 41.5 (1054) 4670 (2118) 4510 (2045) 1245 (565) 2 1/8 1 1/8
080AM 59.8 (1519) 36.9 (937) 40.8 (1036) 4905 (2224) 4745 (2152) 1245 (565) 2 1/8,2 5/8 1 1/8
085AM 59.8 (1519) 36.3 (922) 39.9 (1013) 5089 (2308) 4925 (2234) 1245 (565) 2 5/8 1 1/8
090AM 59.8 (1519) 37.3 (947) 40.9 (1039) 5224 (2370) 5060 (2295) 1245 (565) 2 5/8 1 1/8
095AM 59.8 (1519) 37.3 (947) 39.3 (998) 5234 (2374) 5070 (2300) 1245 (565) 2 5/8 1 1/8
100AM 59.8 (1519) 37.3 (947) 39.3 (998) 5238 (2376) 5070 (2300) 1245 (565) 2 5/8 1 1/8
