Product Manual AGR-3 AGR 070A through 100A
37
CDE Evaporators

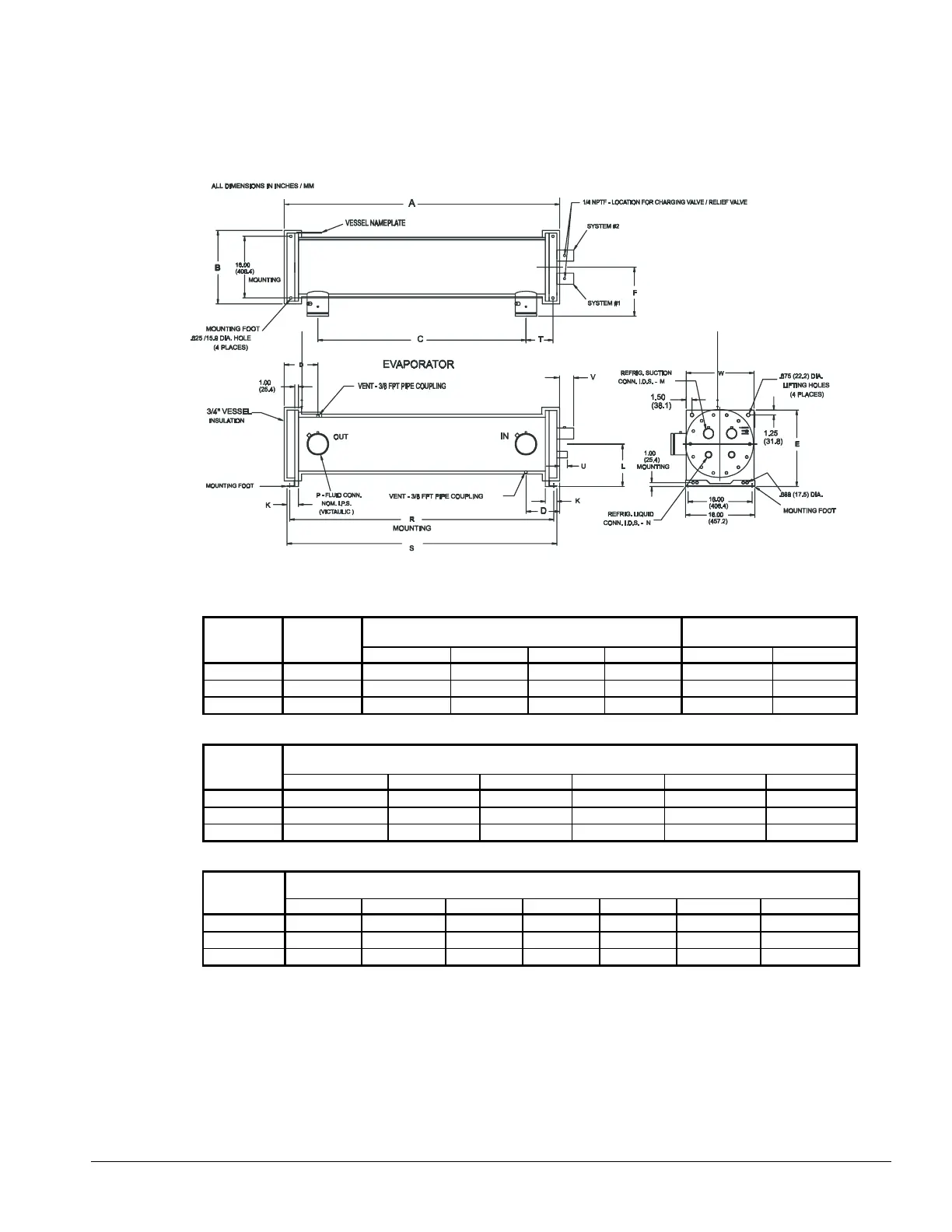

Figure 16, CDE Evaporators
CDE USED ON WATER CONNECTION REFRIGERANT CONNECTION
MODEL AGR-AM inch (mm) inch (mm)
NUMBER MODEL C L P T M N
CDE-1204-1 070 36.0 (914) 9.5 (241) 5.0 (127) 7.0 (178) 2 1/8 (54) 1 3/8 (35)
CDE-1255-1 075, 080, 085 54.0 (1372) 11.0 (278) 5.0 (127) 7.0 (178) 2 1/8 (54) 1 3/8 (35)
CDE-1455-1 090, 095, 100 54.0 (1372) 11.0 (278) 5.0 (127) 7.0 (178) 2 1/8 (54) 1 3/8 (35)
CDE DIMENSIONAL DATA
MODEL inch (mm)
NUMBER A B D E F G
CDE-1204-1 53.5 (1359) 17.5 (445) 8.8 (224) 17.5 (445) 12.1 (307) 2.3 (58)
CDE-1255-1 71.5 (1816) 17.5 (445) 8.8 (224) 19.0 (483) 12.1 (307) 3.0 (76)
CDE-1455-1 71.5 (1816) 19.1 (485) 8.8 (224) 19.0 (483) 12.1 (307) 3.0 (76)
CDE
MODEL
DIMENSIONAL DATA
inch (mm)
NUMBER K R S U V W BB
CDE-1204-1 3.0 (76) 50.0 (1270) 52.0 (1321) 1.8 (45) 2.8 (71) 16.0 (406 14.0 (356)
CDE-1255-1 3.0 (76) 68.0 (1727) 70.0 (1778) 1.8 (45) 2.8 (71) 16.0 (406) 14.0 (356)
CDE-1455-1 3.0 (76) 68.0 (1727) 70.0 (1778) 1.8 (45) 2.8 (71) 17.6 (447) 14.0 (356)
