IOMM AGR AGR 055A through 100A 7
Vibration Isolators
Vibration isolators are recommended for all roof mounted installations or wherever vibration
transmission is a consideration.
See Dimensional Data for dimensions required to secure each isolator to the mounting surface.
The spring flex isolators are white type CP2-32, McQuay part number 047792932. A total of four
per unit is required.

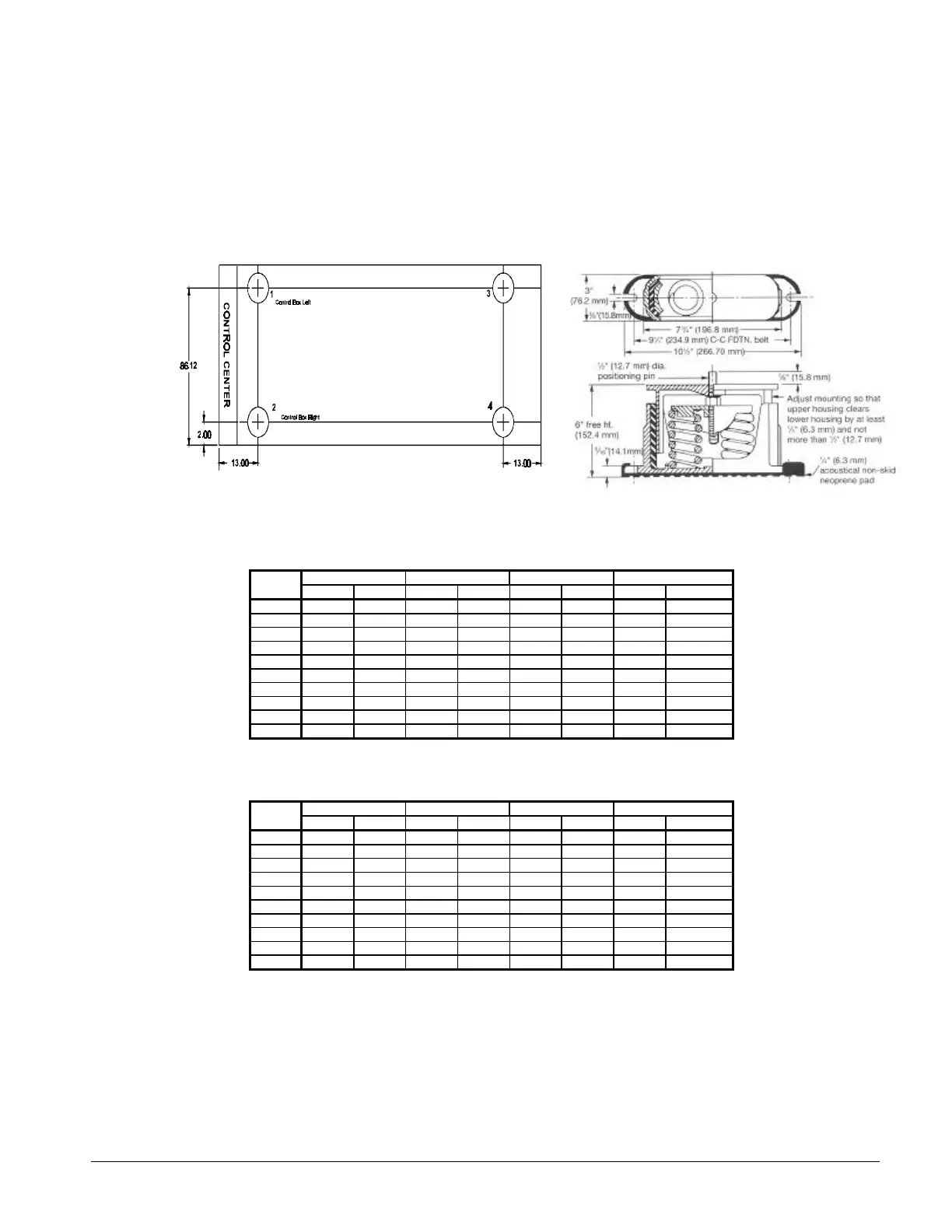

Figure 4, Isolator Locations (4 and 6 fan units) Spring Isolator
Table 1 , Isolator Loads at each Mounting Location with Aluminum Fins
Unit Control Box Left Control Box Right Opposite end left Opposite End Right
Size lb kg lb kg lb kg lb kg
055 998 493 1143 564 866 428 992 490
060 1000 494 1146 566 868 429 994 491
065 1060 523 1180 583 942 465 1048 518
070 1071 529 1193 589 952 470 1060 523
075 1491 736 1633 806 1137 561 1245 615
080 1542 761 1745 862 1151 568 1302 862
085 1561 771 1822 900 1171 578 1367 675
090 1675 827 1850 914 1264 624 1396 689
095 1678 829 1853 915 1266 625 1398 690
100 1678 829 1853 915 1266 625 1398 690
Table 2, Isolator Loads at each Mounting Location with Copper Fins
Unit Control Box Left Control Box Right Opposite end left Opposite End Right
Size lb kg lb kg lb kg lb kg
055 1163 574 1333 658 1009 498 1157 571
060 1166 576 1336 660 1011 499 1159 572
065 1268 626 1412 697 1126 556 1254 619
070 1279 632 1424 703 1137 561 1266 625
075 1828 903 2002 989 1394 688 1526 754
080 1877 927 2123 1048 1400 691 1584 1048
085 1889 933 2206 1089 1417 700 1654 817
090 2012 994 2222 1097 1518 750 1677 828
095 2015 995 2225 1099 1520 751 1679 829
100 2015 995 2225 1099 1520 751 1679 829
